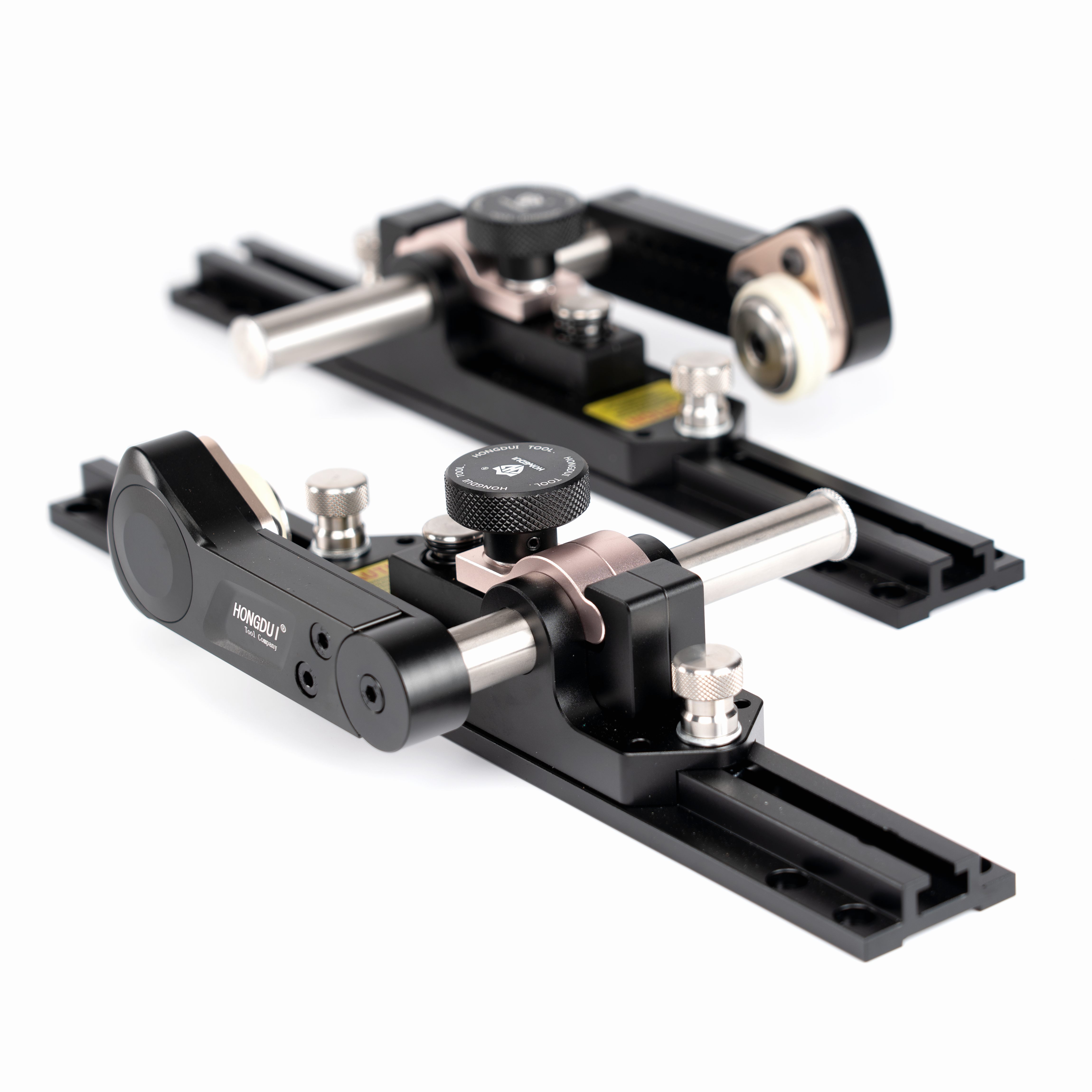

HONGDUI YL08 Guide de stock de scie à table
Taxes inclues Frais d'envoi calculés au paiement

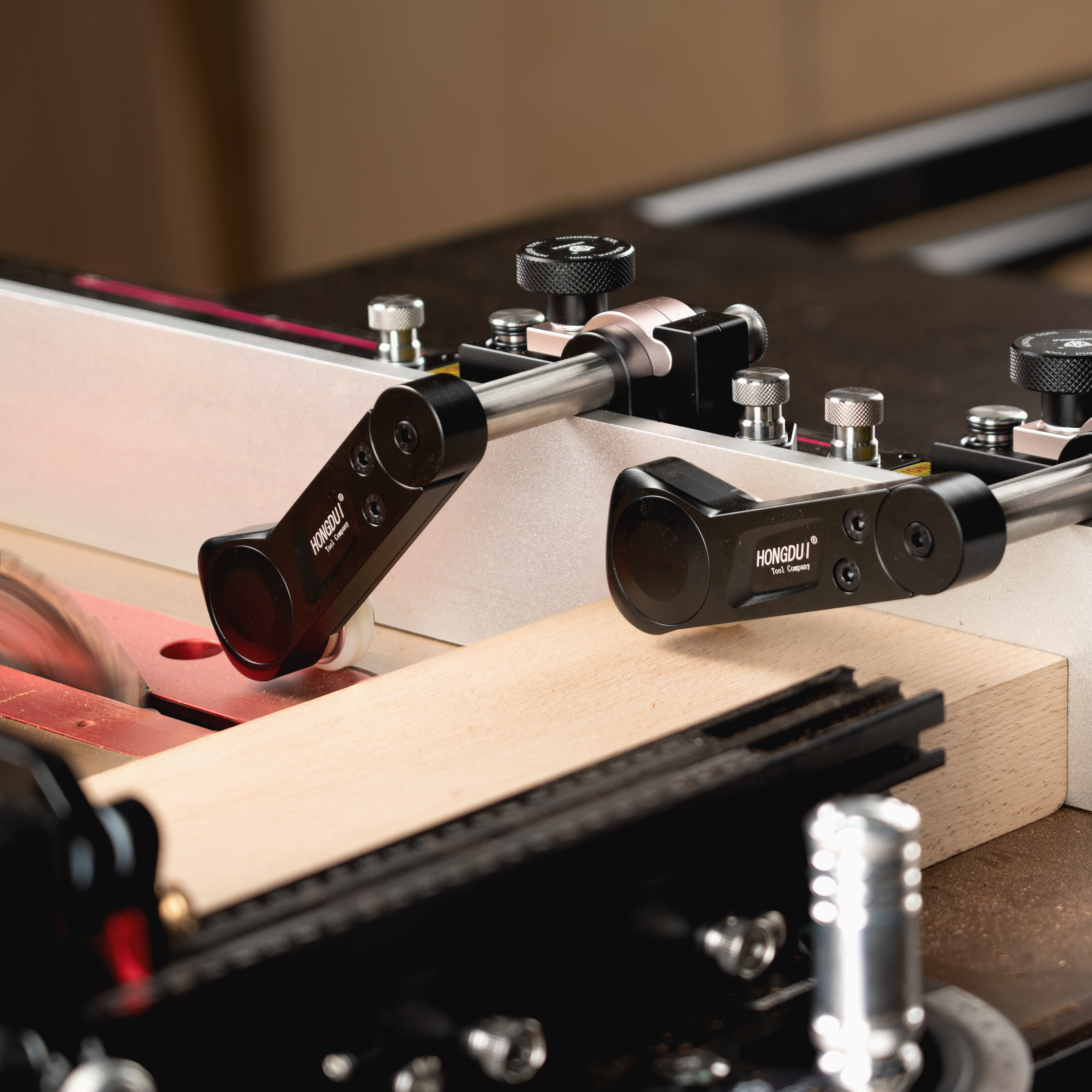

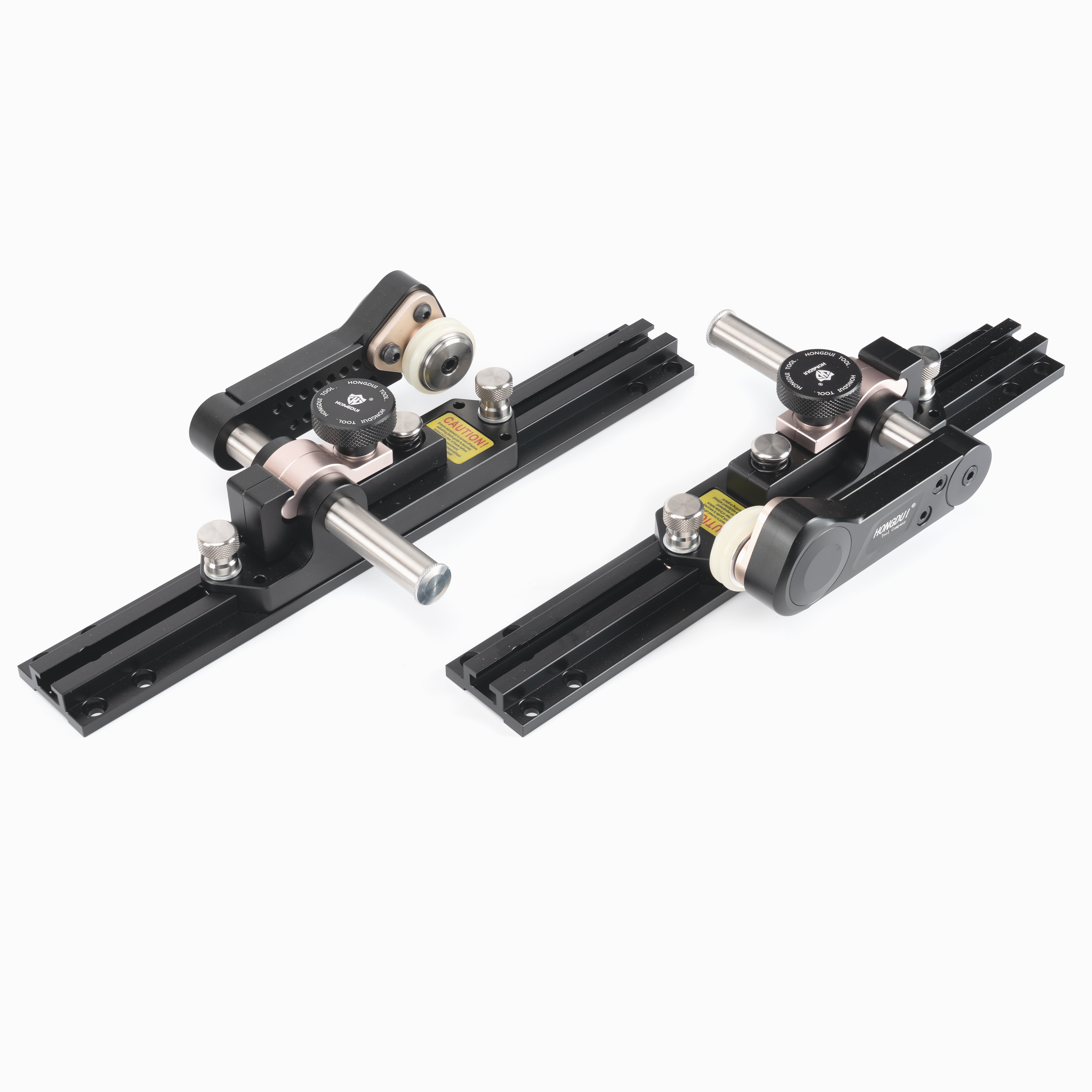

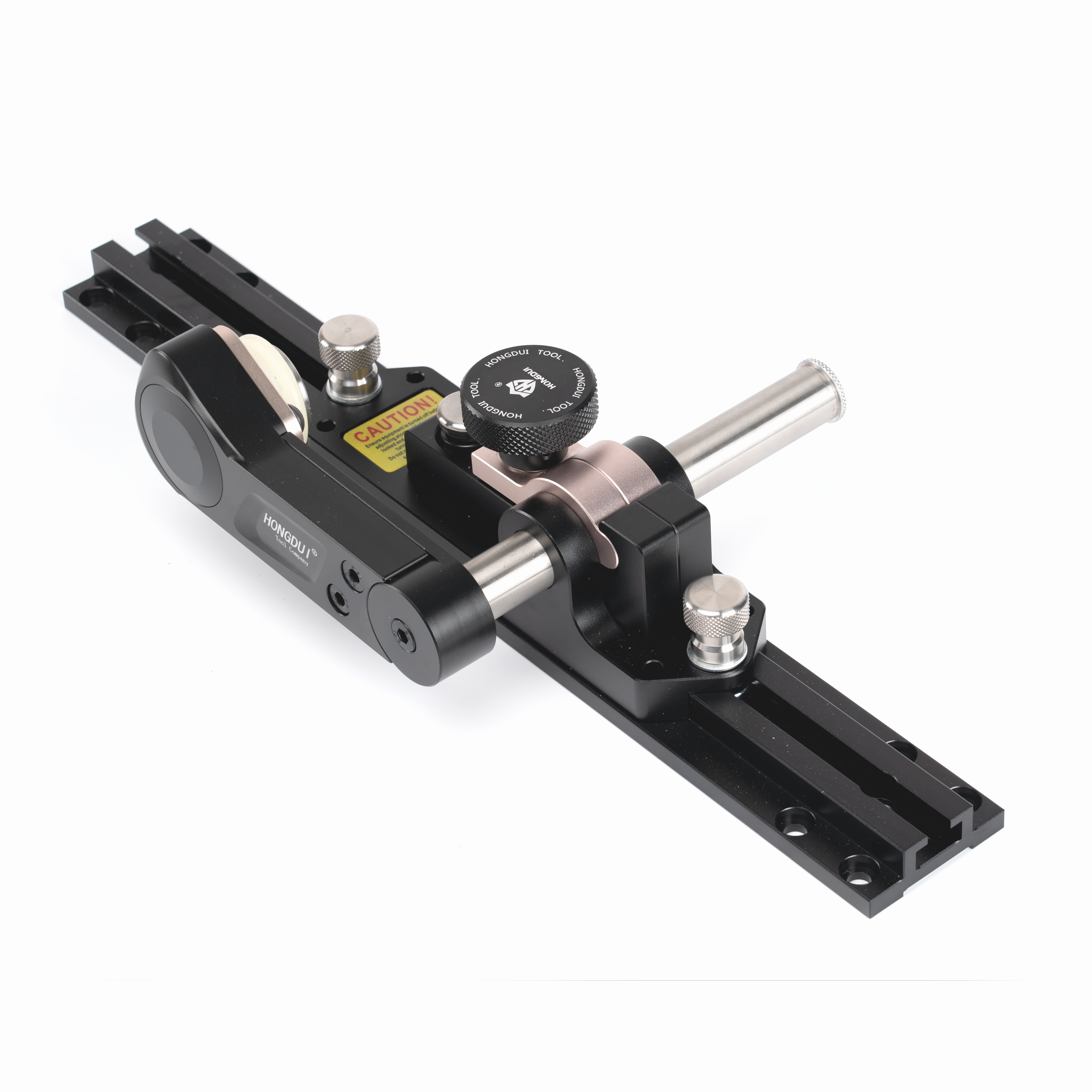

The HONGDUI YL08 is more than a hold-down device—it is a high-performance workshop safety and stabilization system engineered for woodworkers who demand absolute feed control. It features unique angled, one-way roller arms under constant spring tension that actively guide your stock tightly against the fence while completely eliminating kickback risk. Whether you are ripping long, heavy hardwood slabs or managing repeatable narrow cuts, the YL08 transforms your table saw into an unyielding, high-efficiency feed instrument.
Technologie de sécurité anti-recul : Équipé de roulements à rouleaux unidirectionnels de haute précision qui se verrouillent instantanément pour empêcher la pièce de travail de reculer, réduisant ainsi considérablement le risque de recul.
Pression constante vers le bas : Dispose d'bras réglables en hauteur à ressort qui appliquent une pression constante pour maintenir la planche à plat contre la table et serrée contre la clôture, garantissant une coupe plus propre et plus précise.

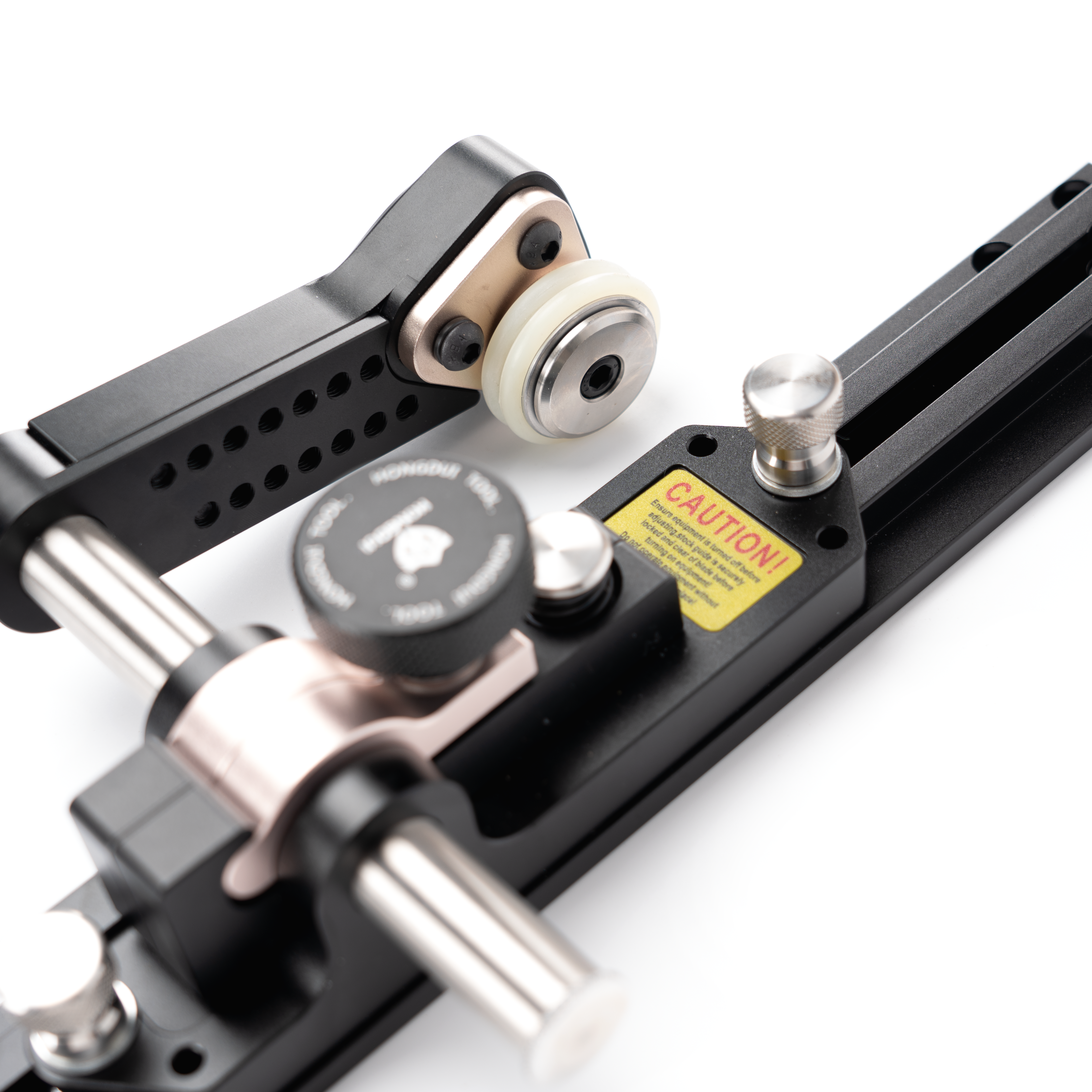

Rouleaux en uréthane non marquants : Les rouleaux à forte adhérence sont fabriqués en uréthane de qualité supérieure, offrant une excellente traction sans laisser de marques ni endommager la surface du bois délicat ou fini.

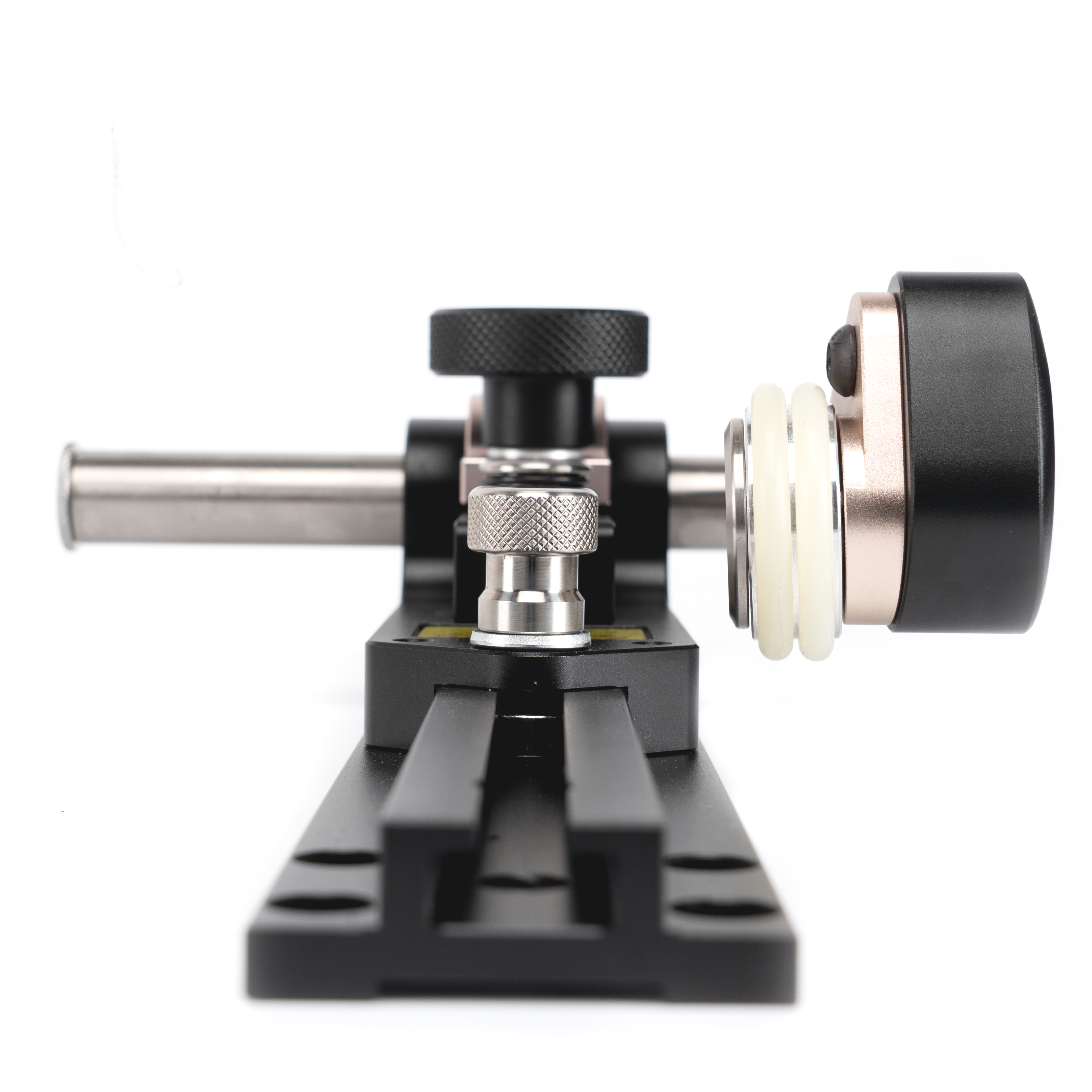

Conception de rouleau angulaire : Les rouleaux sont inclinés légèrement pour tirer la pièce de travail vers la clôture pendant qu'elle passe à travers la scie, maintenant un alignement parfait tout au long de la coupe.
Compatibilité universelle avec les T-tracks : Conçu spécifiquement pour s'adapter aux T-tracks standard de 19 mm (3/4"), permettant une installation rapide sur la plupart des clôtures de scies à table après-vente ou personnalisées.
Construction CNC industrielle : Usiné à partir d'un alliage d'aluminium 6061 avec une finition anodisée professionnelle, garantissant une durabilité à long terme et une résistance aux débris d'atelier.
Ajustabilité flexible : Les guides peuvent être rapidement positionnés le long de la clôture et ajustés en hauteur pour s'adapter à différentes épaisseurs de pièces de travail.
- Model: YL08
- Dimension: Approximately 150mm x 115mm x 45mm (Per Main Guide Assembly)
- Material: High-grade 6061-T6 Aluminum Alloy, Hardened Steel, and Wear-Resistant Rubber Rollers.
- Weight: Roughly 1.2kg (Total Kit Weight)

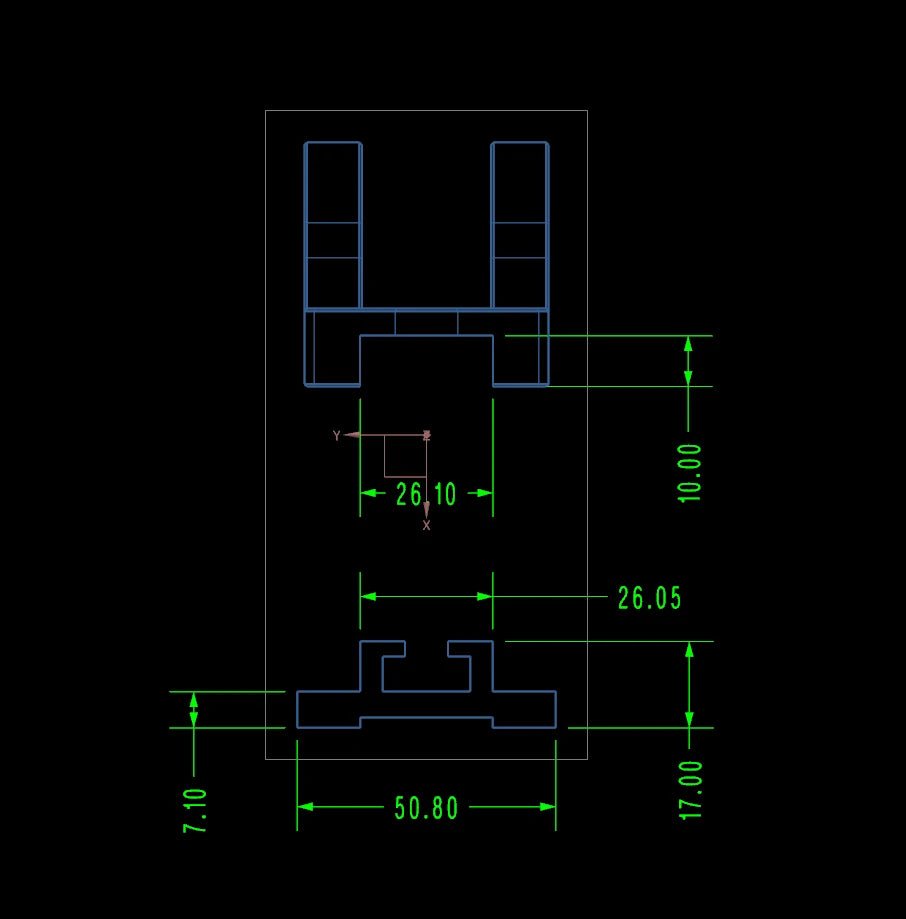

- Compatibility: Fits Standard 19mm x 9.5mm (3/4" x 3/8") T-Slots or U-Slots; Adaptable to most standard table saw fences and router tables.

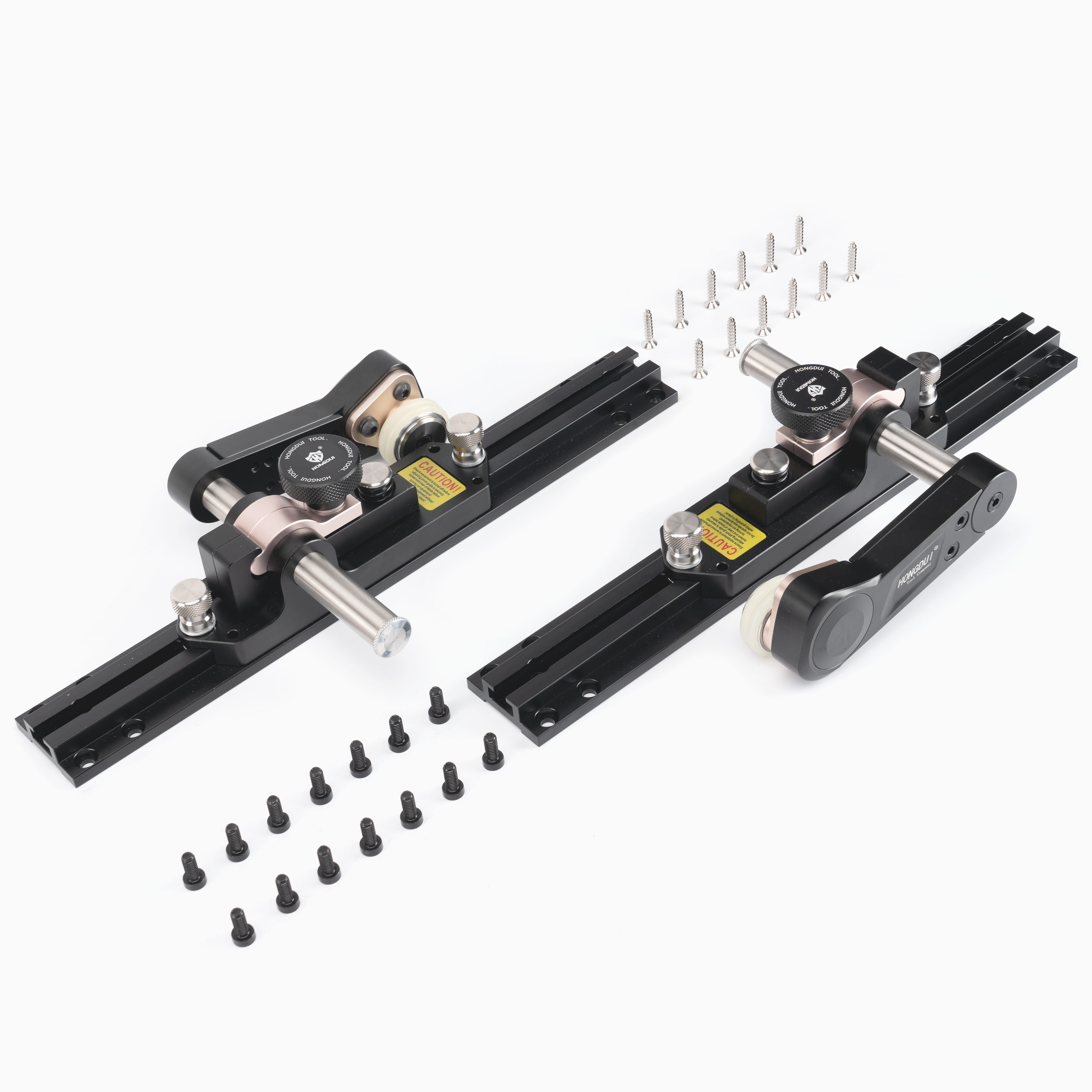

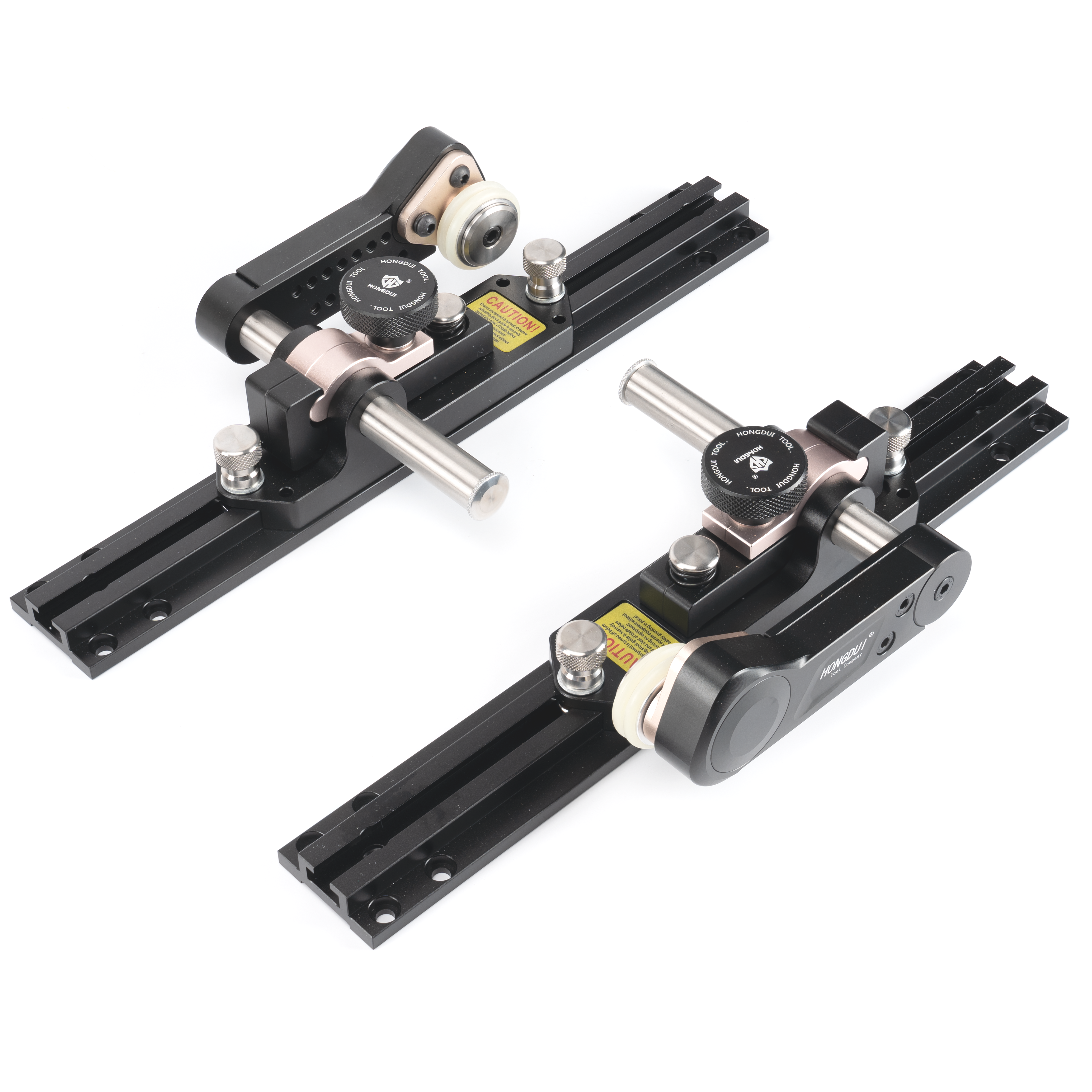

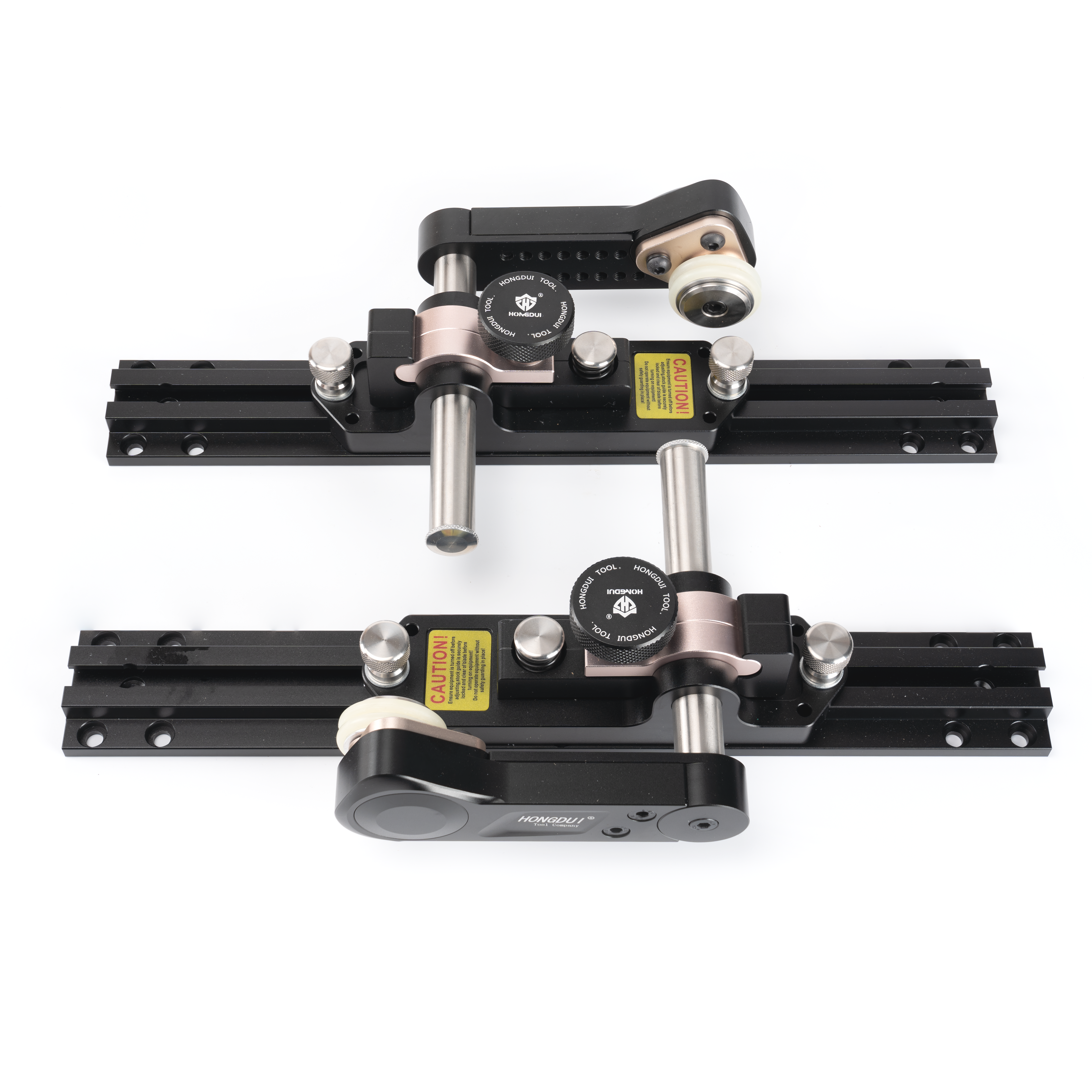

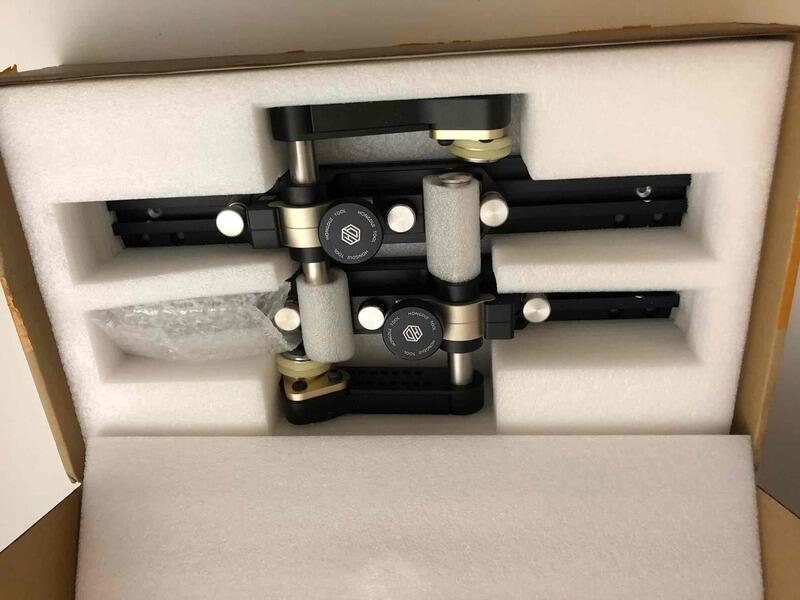

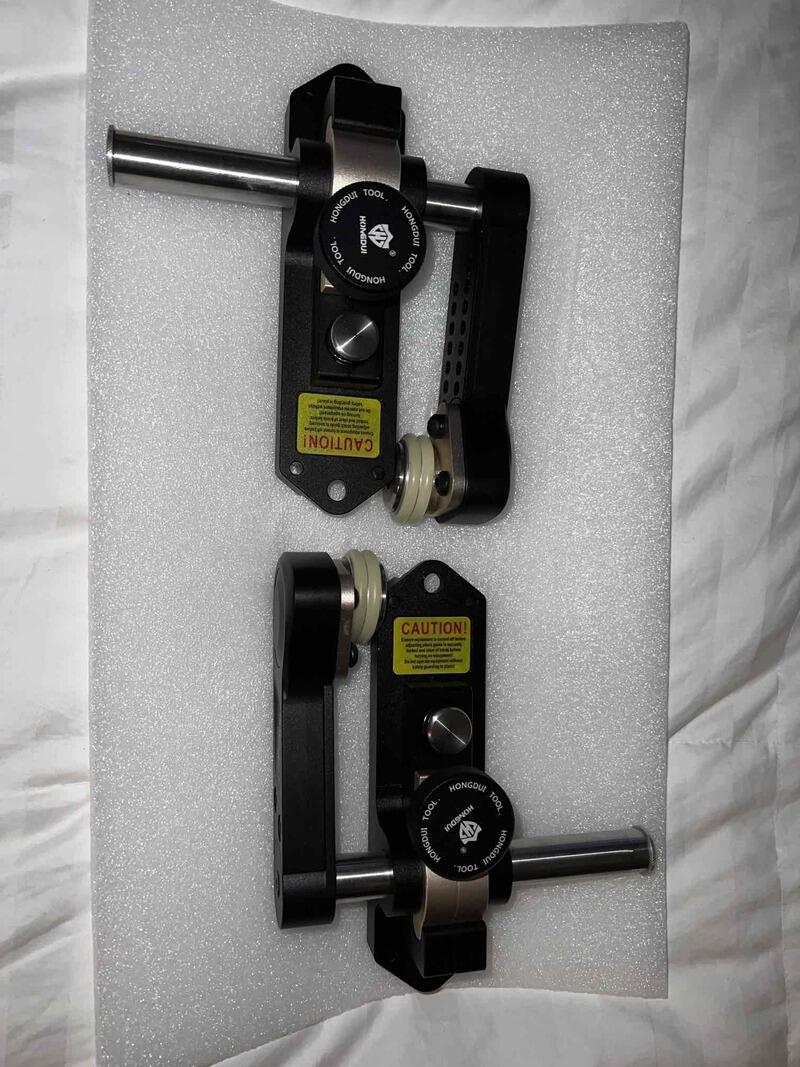

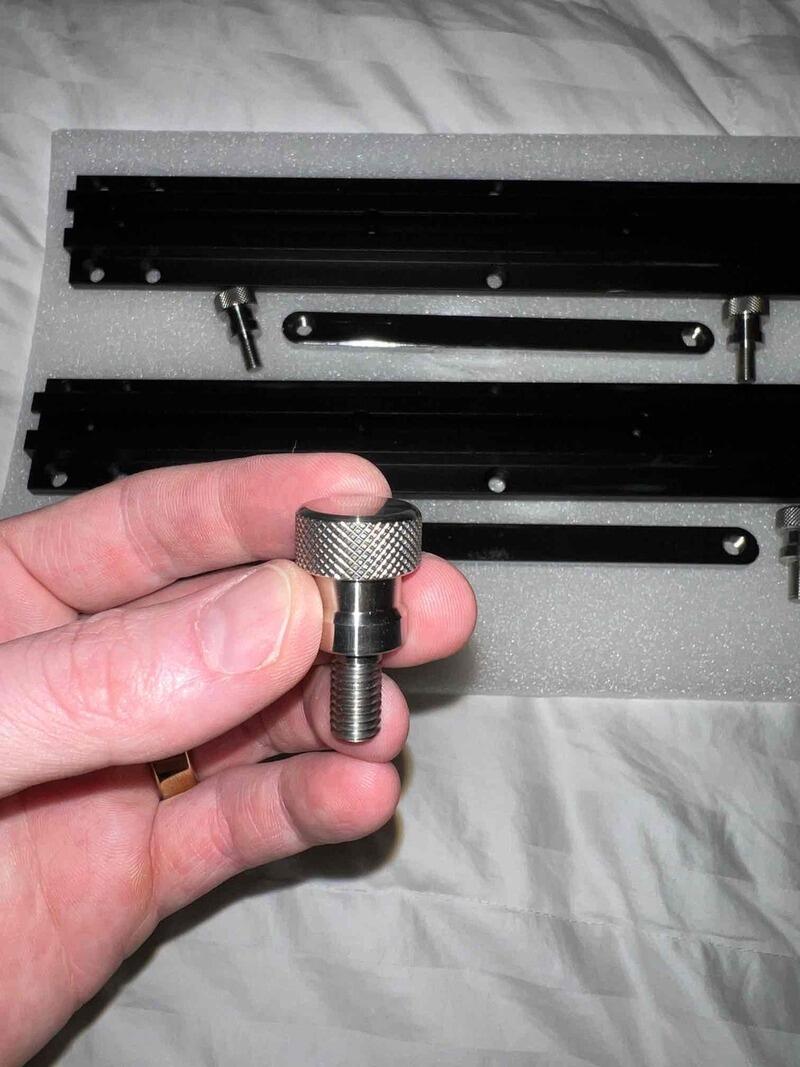

2 * Stock Guide Rollers (Left & Right), 2 * T-Track Slider Blocks, 4 * Precision Locking Knobs, 2 * Safety T-Bolts
WARNING! This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
FAQ
Check out the most common questions our customers asked.
Which table saw fences are compatible with the YL0O8 Stock Guides?
The YL08 is designed to mount directly into standard T-track (approximately 19mm or 3/4 inch wide) on the top of your table saw fence.
Can I use these on a portable or jobsite saw?
Yes, provided your fence has a top-mounted T-slot. If your fence does not have a T-slot, you may need to attach a sacrificial wood fence with an integrated T-track.
Is there a minimum height requirement for the fence?
The guides are adjustable in height, but they work best on fences at least 75mm (3 inches) tall to allow for the vertical adjustment range of the guide arms.
How do these prevent kickback?
The YL08 features one-way roller bearings. The rollers move freely as the wood is pushed forward but lock instantly if the wood attempts to move backward.
Do the rollers leave marks on delicate or finished wood?
The rollers are made of a high-grip, non-marring urethane. They provide significant downward pressure to prevent chatter and lifting without indenting or scratching.
Can I use these for narrow rips?
Yes. Because the guides mount to the fence rather than the table, you can position them to hold down narrow strips.
How much downward pressure should I apply?
You should adjust the guide height so the rollers are compressed slightly (about 2-3mm) when the workpiece passes under them.
Do I need to use both rollers at once?
For the best results and maximum safety, it is recommended to use both. The first roller secures the wood before it reaches the blade.
Are the rollers replaceable?
Yes. If the rollers become worn over time or lose their grip due to extreme dust accumulation, the roller assemblies can be replaced.
How do I clean the rollers to maintain grip?
Over time, fine dust or resin can build up on the urethane. Simply wipe the rollers with a cloth dampened with denatured alcohol or a mild degreaser.
What should I do if the one-way bearing starts to slip?
Ensure no sawdust has entered the internal bearing housing. A quick blast of compressed air usually clears the mechanism.
- Extremely well made and designed. Excellent quality.
- Cheaper than Jessem but with same quality.

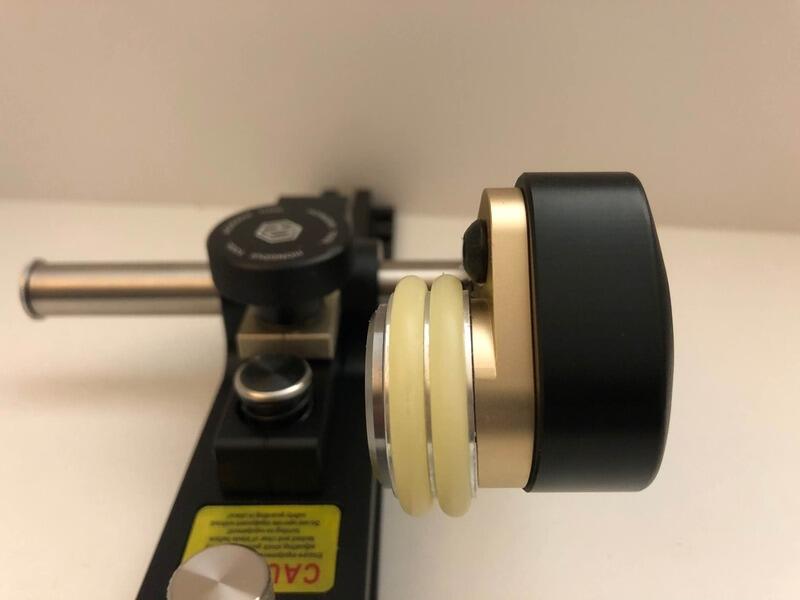

- Amazing quality. The wheels are angled and rolling only one way - Great.

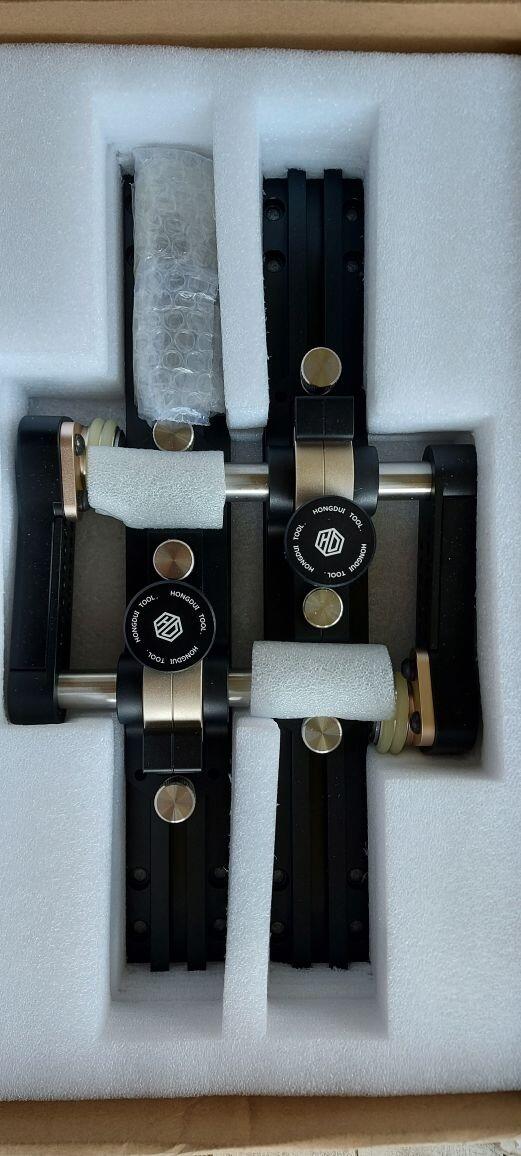

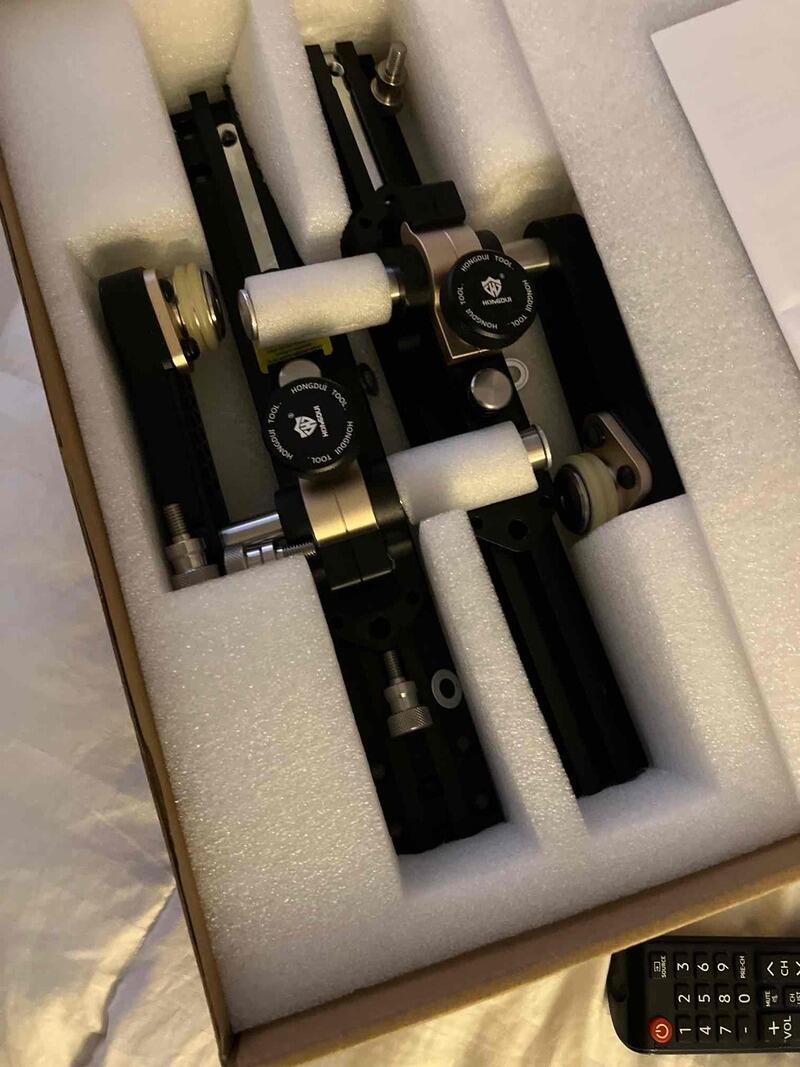

Extremely well made and designed. Excellent quality. _Looking forward to using today as I just received yesterday evening.

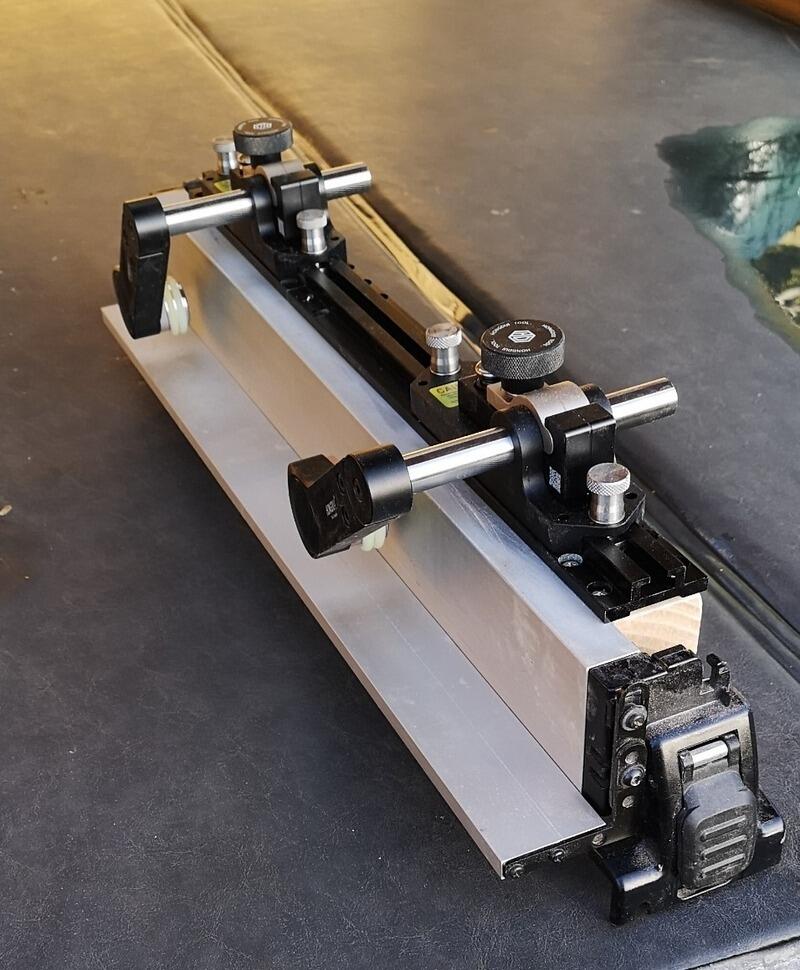

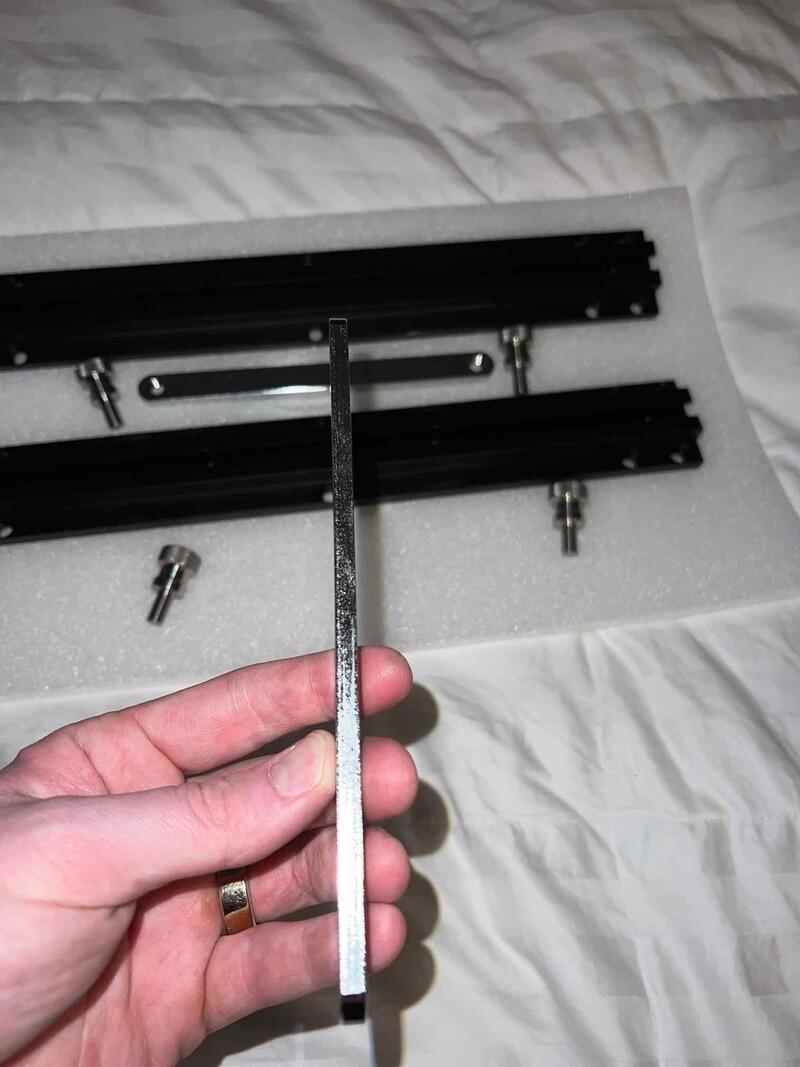

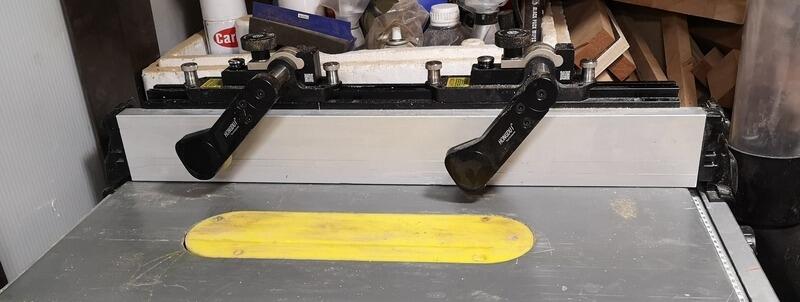

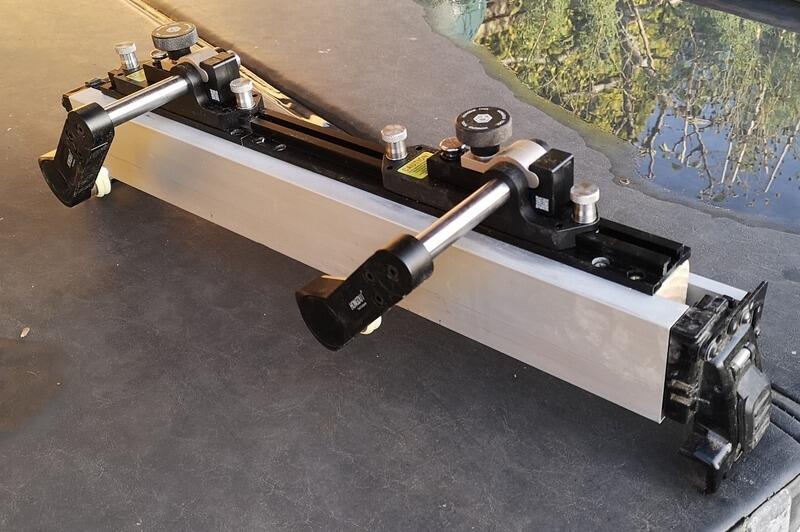

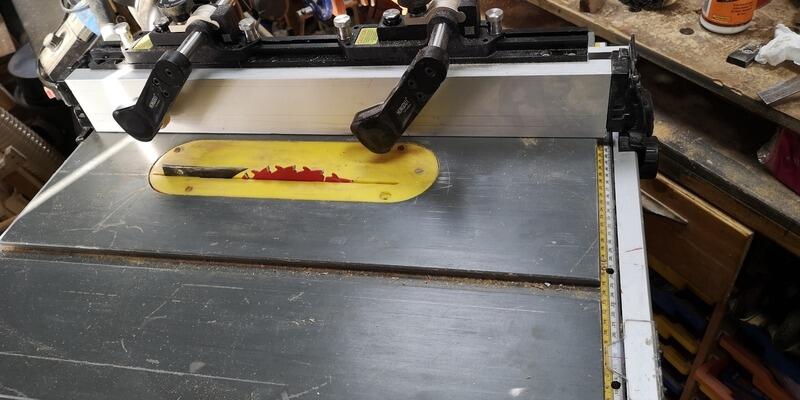

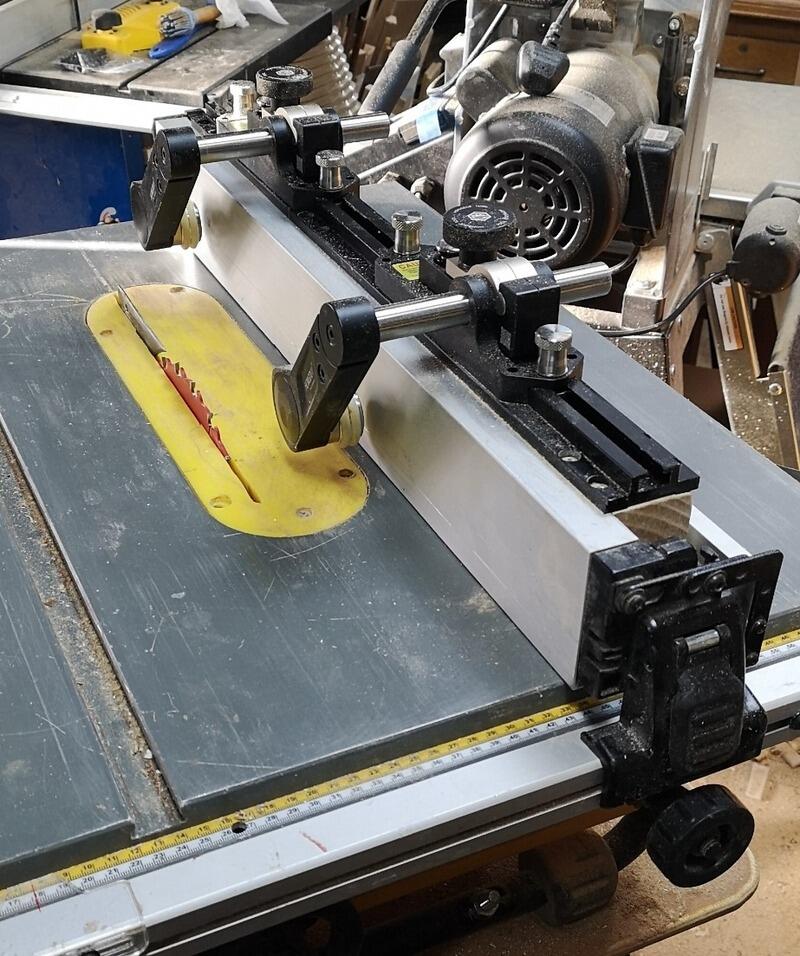

I have seen JESSEM Clear Cut TS Stock Guides - for Table Saw on YouTube on these big fancy Dan table saws and thought bet they are good to use to stop kickbacks and keeping the timber tight against the fence. Then I saw these HONGDUI ones at about ? the price at around £160. The quality looked about the same i.e.. excellent. I have a Dewalt DW745 table saw and was pretty sure that with a bit of a modification I could get it to fit my fence. A piece of 3 by 2 epoxied to the inside face of the fence and I was ready to fit it, I had to shorten one of the aluminium T Track pieces by about 150mm before **** it to the fence, ensuring they cleared the fence face. These are a few pics of the finished installation...To be fair it works but I have not used it with large pieces of ply but I expect it to assist keeping the timber tight up against the fence. The object of the post is to show with a modification to the fence it will fit a dewalt DW745
Cheaper than Jessem but with same quality. With additional rubber and extendable arm that Jessem doesn't have. Thumbs up for Hongdui Tools!

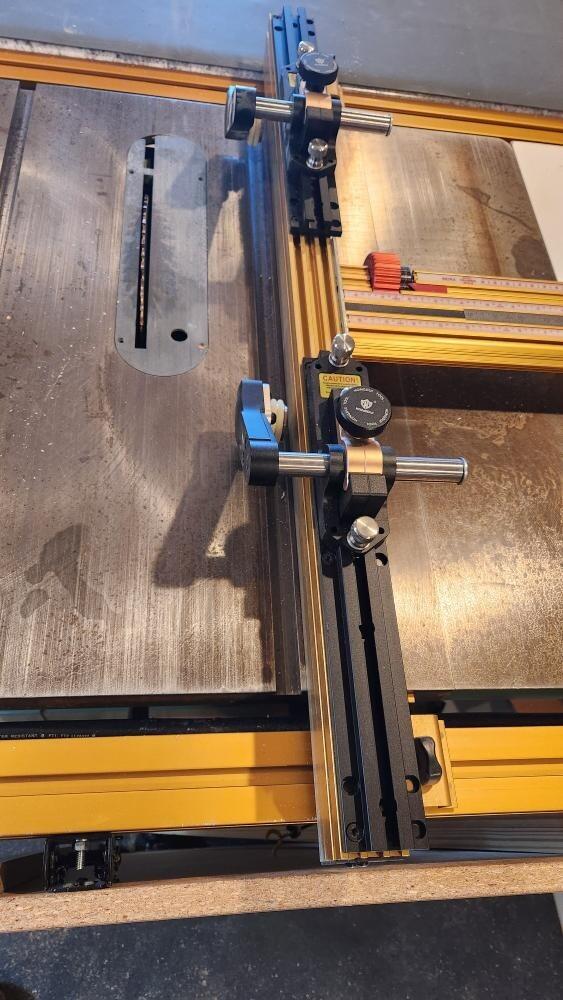

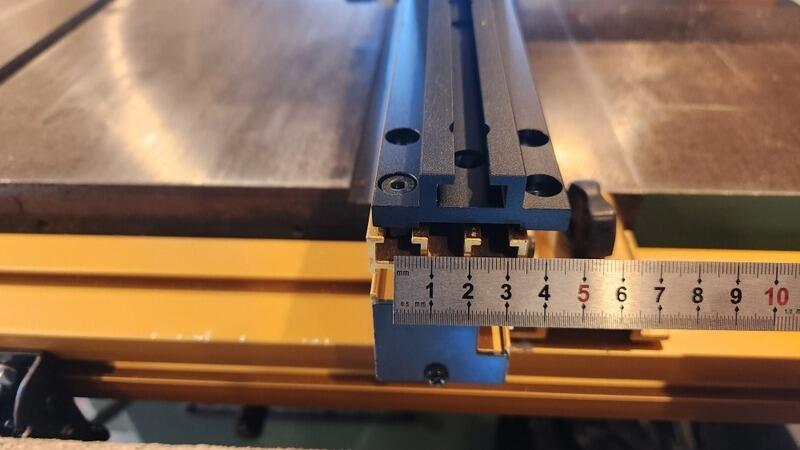

Love them. High quality! Since they come with two shorter rails instead of one longer one like the other brand, they fit around the center fence mount plate of my Incra LS fence. Although its rail hole pattern is wider than the top of my Incra fence, I found mounting is plenty rigid/stable using just one T-slot. But you can always buy Incras TS Jessem adapter track if you insist on more rigid mounting.
Looks very good, amazing quality as always from Hongdui. The wheels are angled and is rolling only one way - Great.
