HONGDUI KM19 Coping Saw

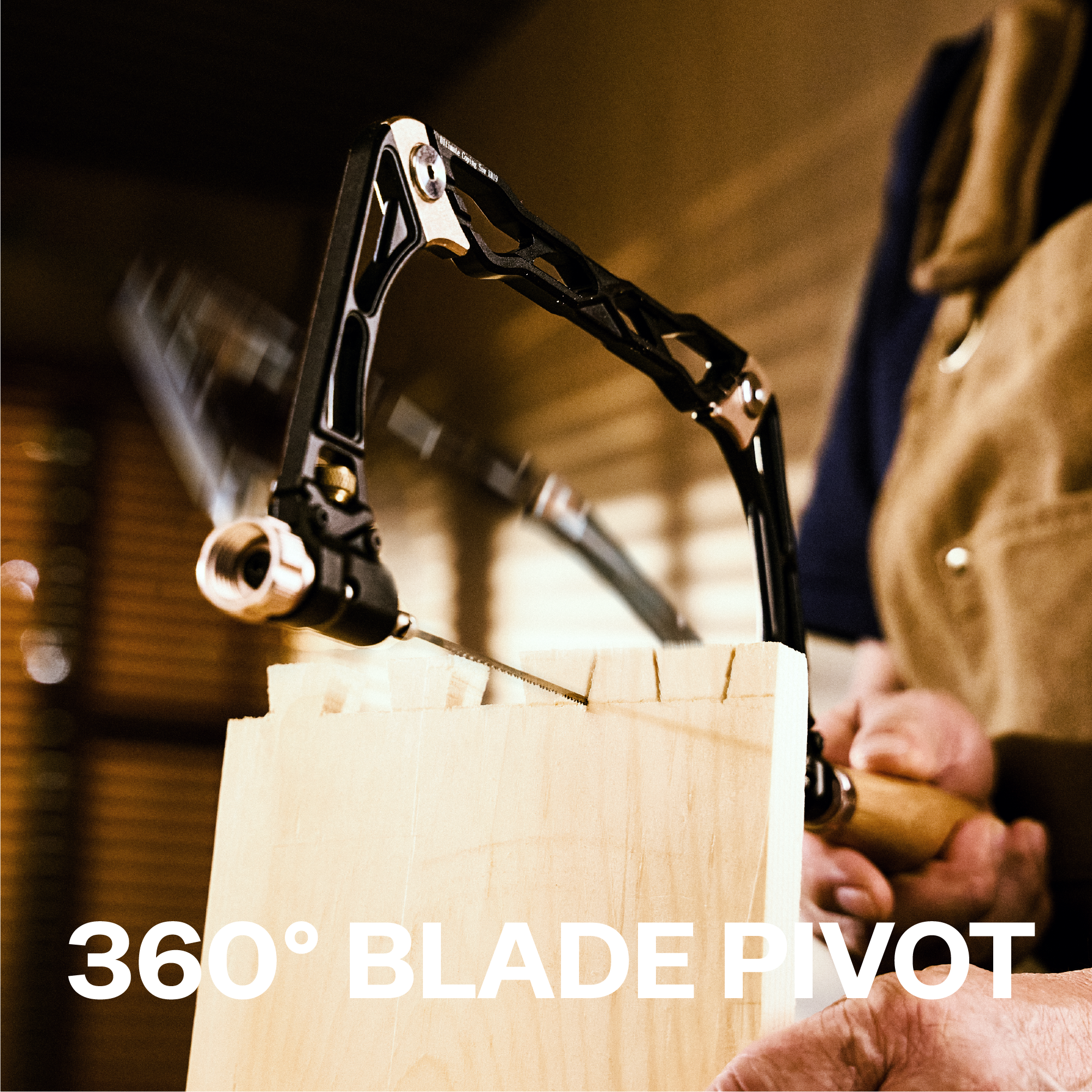

The KM-19 seamlessly combines a robust coping saw with an ultra-fine fret saw into one unyielding tool. Precision-machined from aircraft-grade aluminum, its rigid frame withstands extreme tension for fatigue-free control. A synchronized dual-end rotation mechanism with 8 detents at 45° increments turns the blade 360° with zero twist, easily bypassing frame interference. Complete with a dual-end mountable handle for push/pull switching and three specialized blades, the KM-19 is built to conquer any cut straight out of the box.

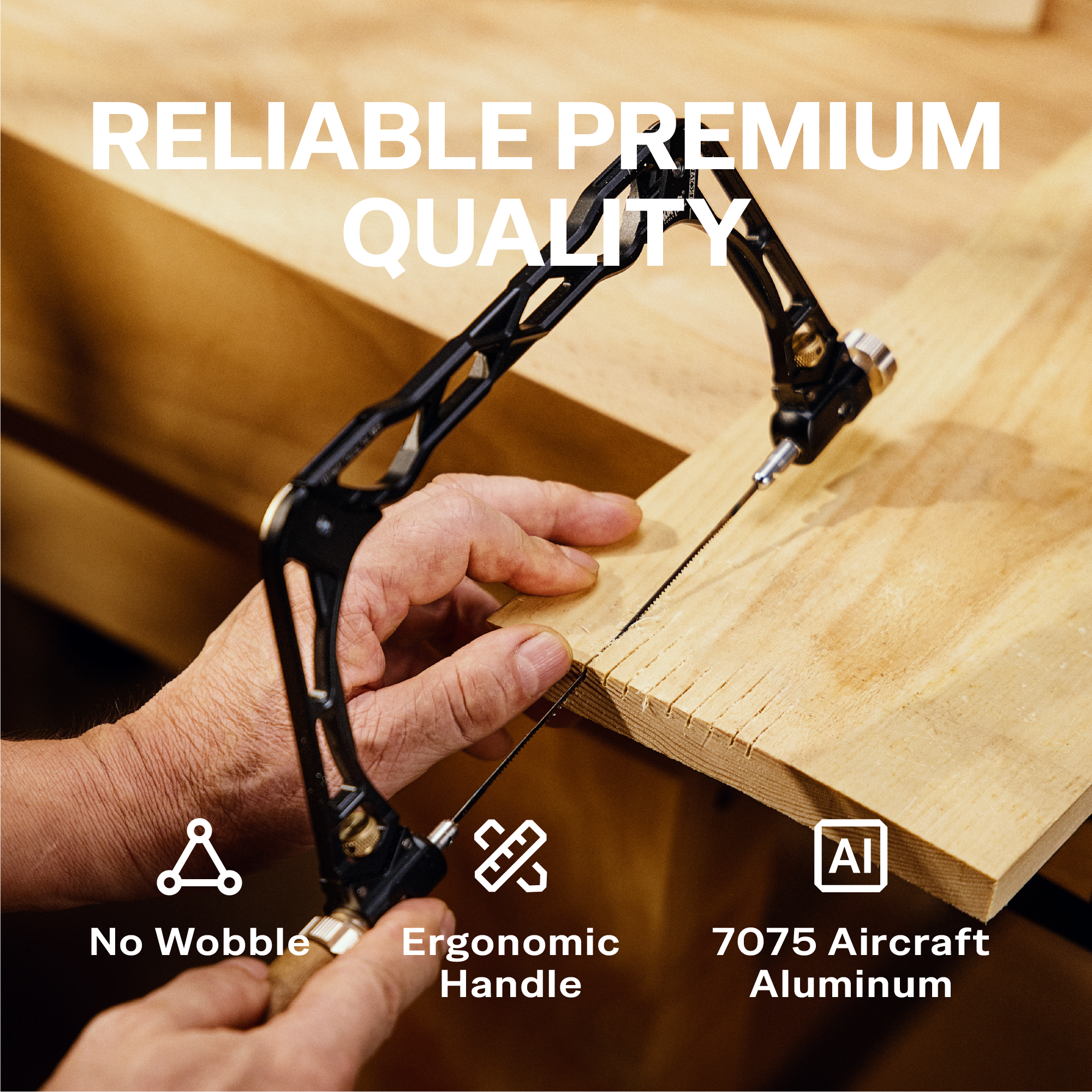

A-Grade Aluminium Coping Saw: Crafted from 7075 aluminium, known for its superior strength and durability, ensuring long-lasting performance.
Mortise-and-Tenon Joints: Unique design for higher blade tension, providing more control and stability compared to traditional single-body coping saws.

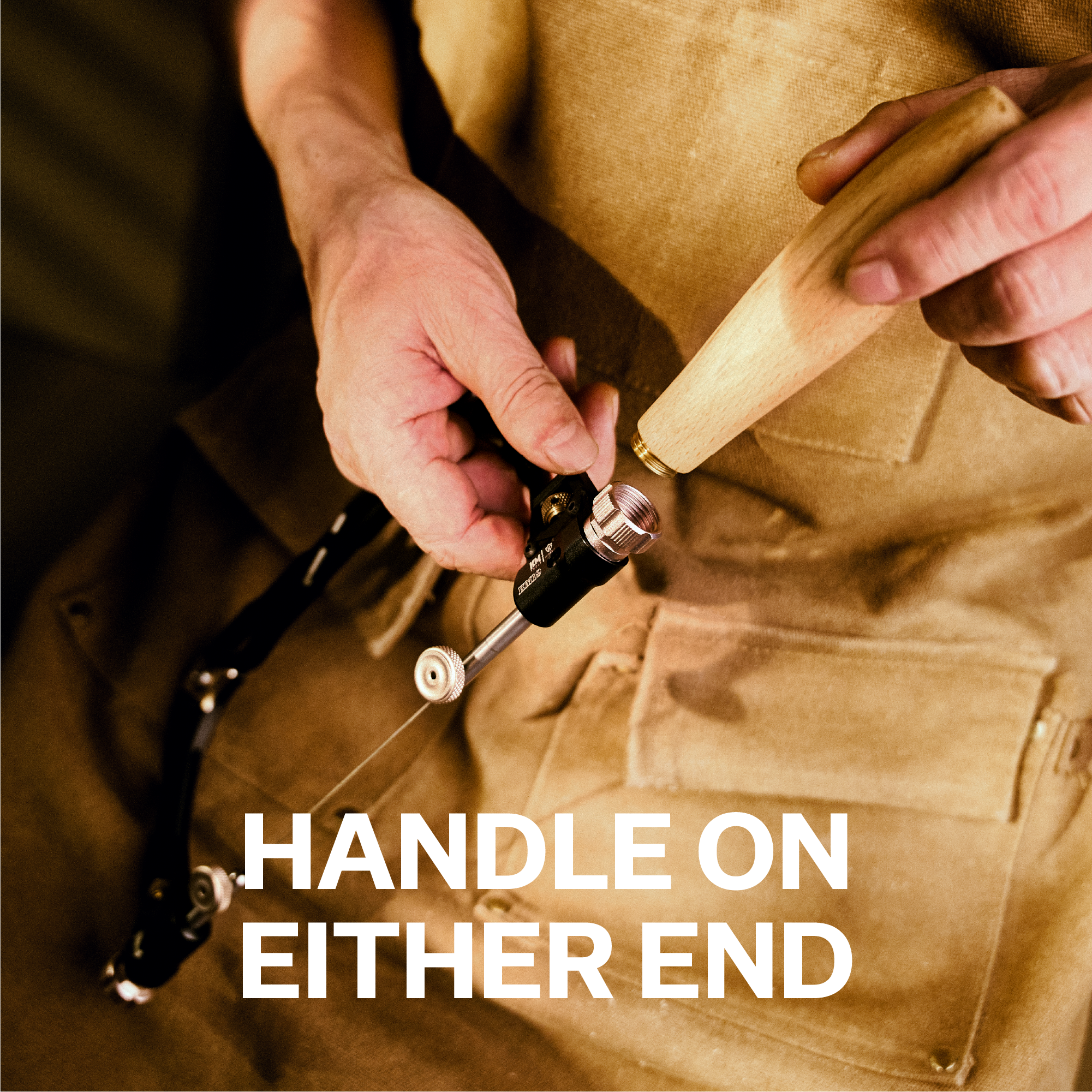

Adjustable Handle: The handle can be mounted on either side of the saw, allowing you to cut on both the push and pull strokes for added versatility.
Tension Control: Easily adjustable from both sides of the saw, with 8 positive stops every 45 degrees, giving you precise control over blade tension and angle.Loosen the cams for unrestricted movement, perfect for custom profiles and intricate, freehand cut.
Compatible with Multiple Blades: Takes 6.5-inch coping saw blades and 4.5”-6.5” wire fret saw blades, offering a wide range of cutting options.
- Model: KM-19

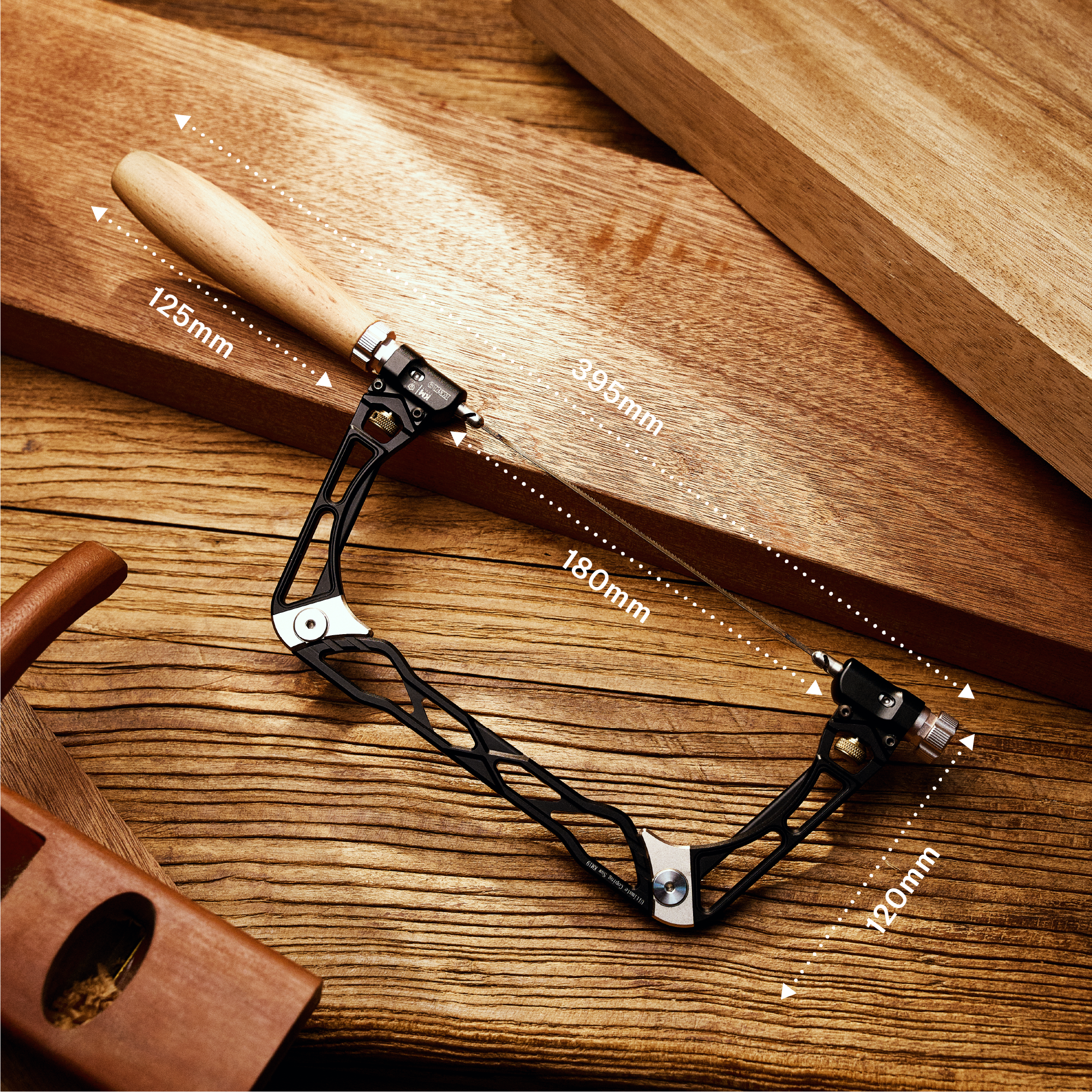

- Dimension: Approximately 320mm x 135mm x 25mm
- Material: High-grade 6061 Aerospace-Grade Aluminum & High-Tensile Alloy Steel
- Weight: Roughly 480g
- Compatibility: Fits Standard 130mm (5-1/8") Pinless or Pinned Coping Saw Blades.

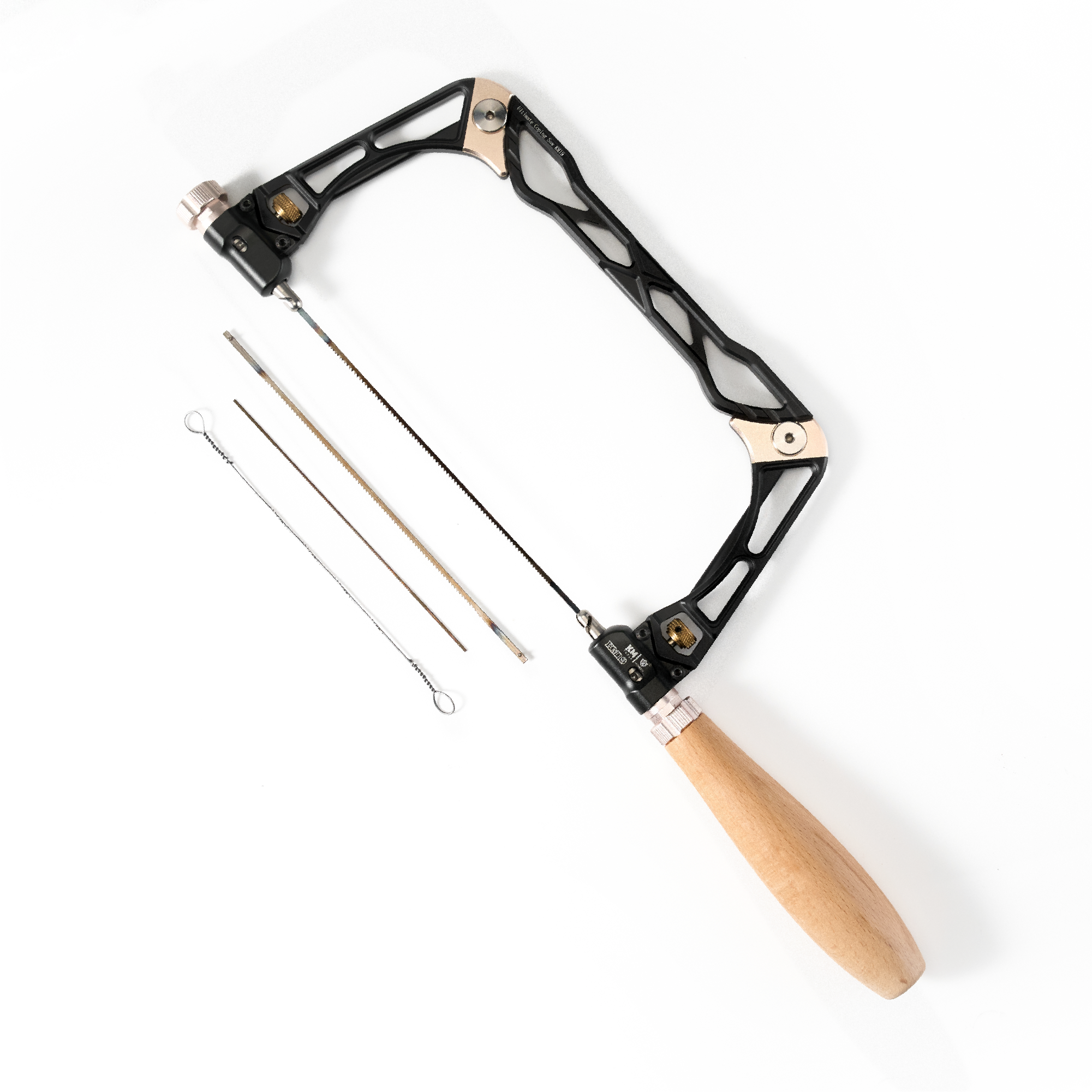

1 * Precision Coping Saw Frame, 1 * Pre-installed Woodworking Blade, 1 * Pin-End Standard Wood Blade, 1 * Pinless Straight Fret Blade, 1 * Pinless Spiral Fret Blade, 1 * Tensioning Adjustment Tool
WARNING! This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
FAQ
Check out the most common questions our customers asked.
What makes the KM-19 different from a standard hardware store coping saw?
The KM-19 is built with a high-rigidity aluminum alloy frame and a unique lever-action tensioning system. Unlike traditional saws that rely on twisting the handle to apply tension, the KM-19 uses a mechanical lever that provides significantly higher blade tension, resulting in cleaner cuts and less blade "wandering."
Does the KM-19 use standard coping saw blades?
Yes, it is compatible with standard 6.5-inch (approx. 165mm) pin-end blades. This allows you to use your favorite third-party blades (like Pegas or Olson) for different materials and tooth counts.

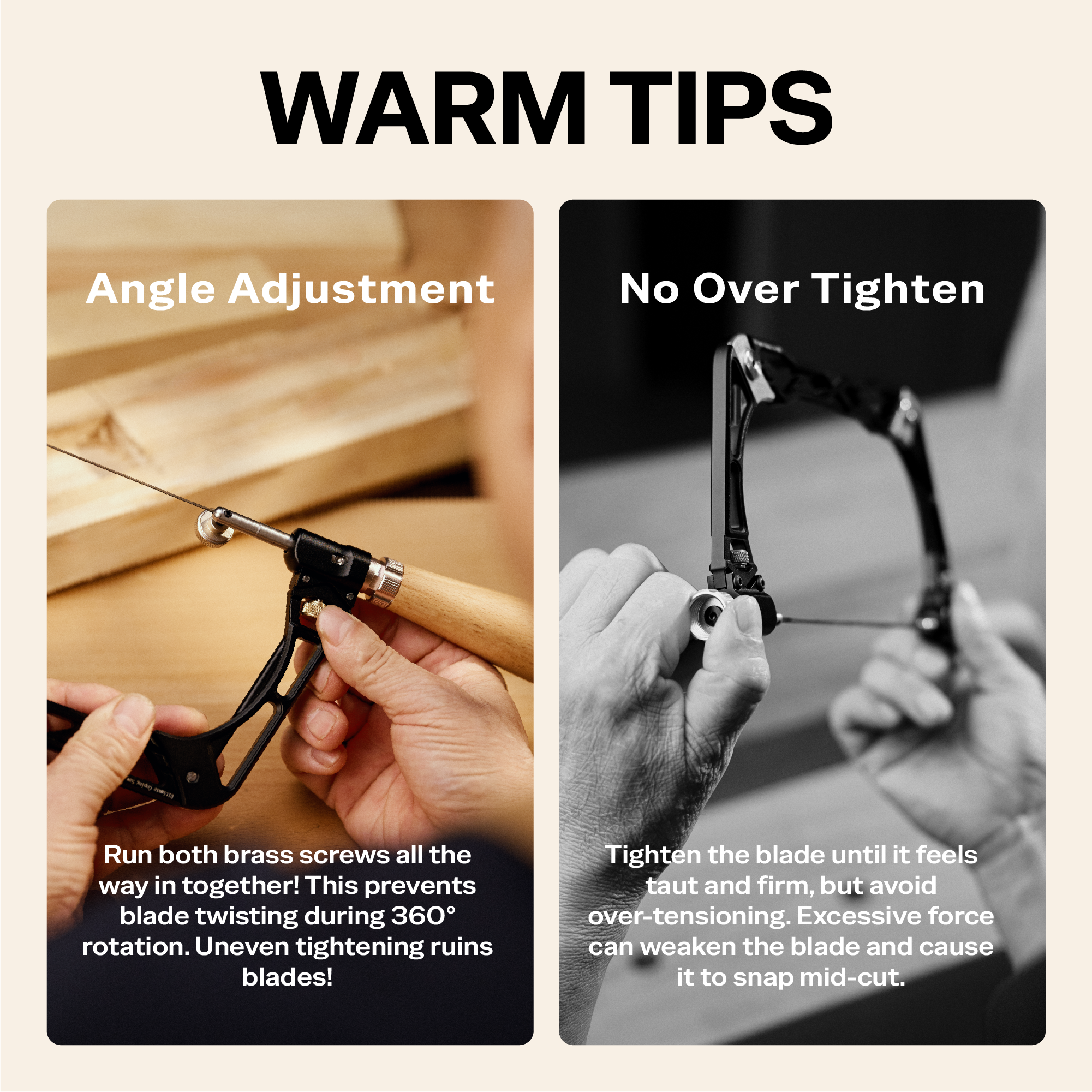

How do I adjust the blade angle?
The KM-19 features a 360-degree rotating blade holder. To adjust the angle, you simply rotate the thumb-adjusters at the front or rear of the frame. The indexing mechanism ensures the blade stays locked at the desired angle during the cut.
How much tension should I apply to the blade?
You should apply enough tension so that the blade emits a "ping" sound when plucked, similar to a guitar string. The KM-19’s lever system is designed to handle high tension, but you should always release the tension lever when the saw is not in use to prolong the life of the frame and the blade.
The blade rotation feels stiff. How can I fix this?
Over time, fine sawdust can enter the rotating assembly.
1. Release the tension lever.
2. Remove the blade.
3. Clean the rotating hubs with compressed air or a soft brush.
4. Apply a single drop of light machine oil (3-in-1 oil) to the rotating interface. Do not use heavy grease, as it will attract more dust.
Can I use this saw for metal or plastic?

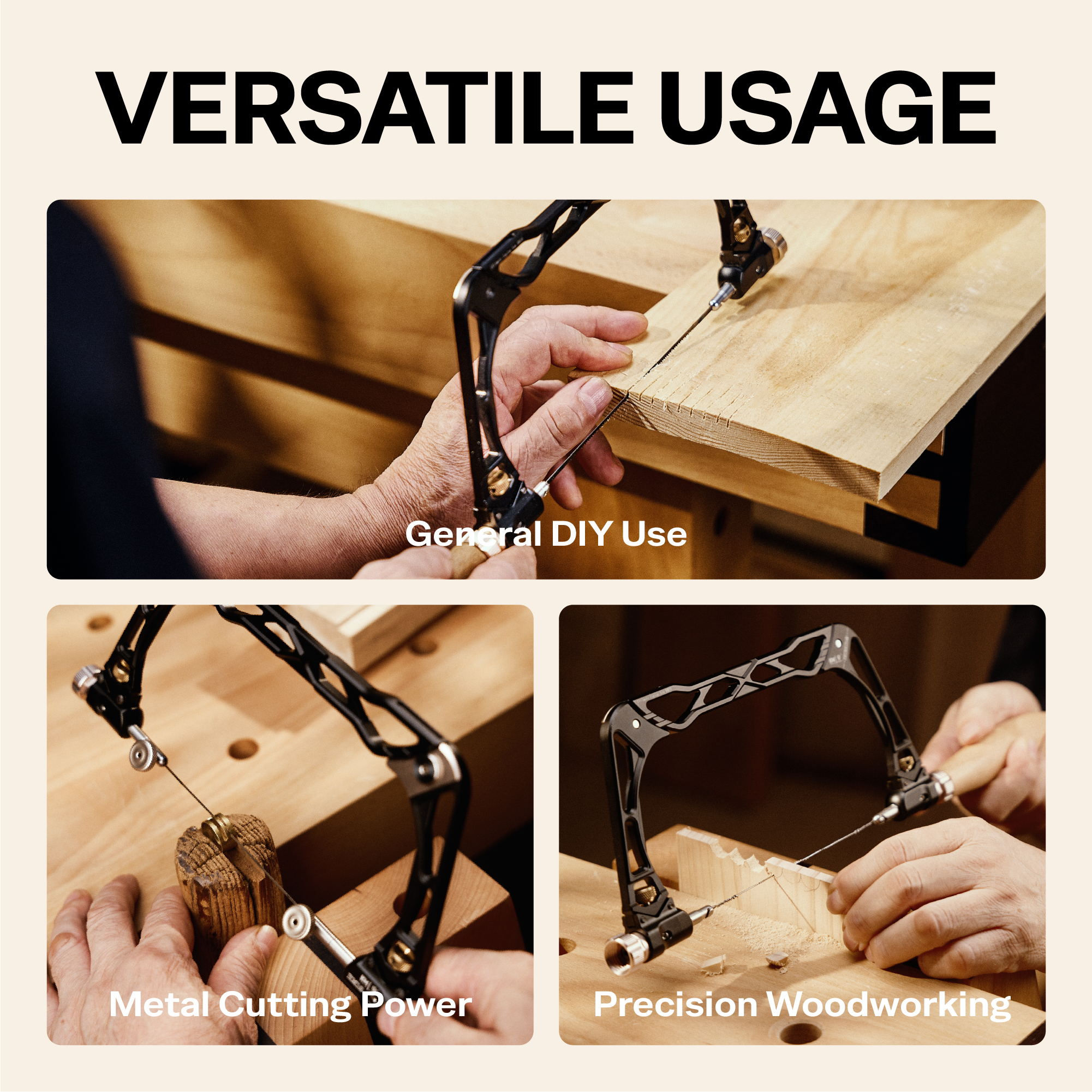

Yes, provided you install the appropriate blade. While the KM-19 is a favorite among woodworkers for clearing dovetail waste, its rigid frame makes it excellent for precision work in thin non-ferrous metals and plastics when paired with a high-TPI (teeth per inch) blade.
Why is my blade snapping frequently?
Frequent snapping is usually caused by one of three things:
1. Over-tensioning: While the saw supports high tension, exceeding the blade's physical limit will cause failure.
2. Aggressive Turning: Trying to turn the saw at too sharp an angle while moving too fast puts lateral stress on the pins.
3. Heat Buildup: In very hard woods, friction can overheat the blade. Slow down your stroke rate and let the teeth do the work.
The tension lever feels too hard to close. Is something wrong?
Check if the blade is properly seated in the pin slots. If the blade is slightly too short or incorrectly positioned, the lever will meet excessive resistance. Never force the lever; ensure the blade pins are fully engaged in the hooks first.
