HONGDUI YH10 Calibre de marcaje de rueda
Impuestos incluidos. Los gastos de envío se calculan al finalizar la compra

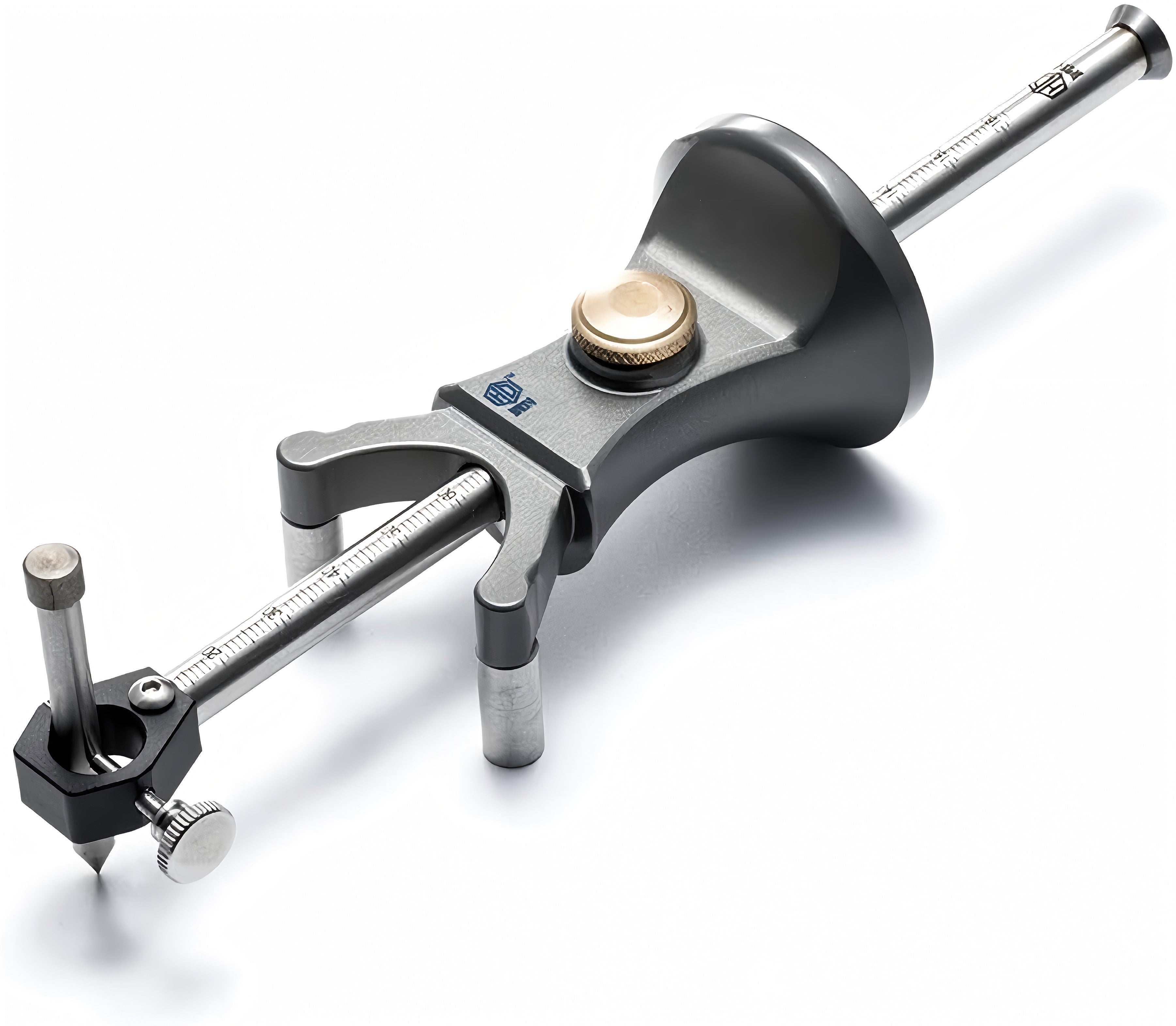

Domine su oficio con absoluta confianza. El HONGDUI YH10 es un instrumento de trazado integrado que redefine lo que pueden ser las herramientas de marcado. Al combinar un eje graduado con microajuste y nuestro distintivo mecanismo de bloqueo dentado mecánico, garantiza ajustes instantáneos y la fijación de profundidades repetibles con una precisión impecable.

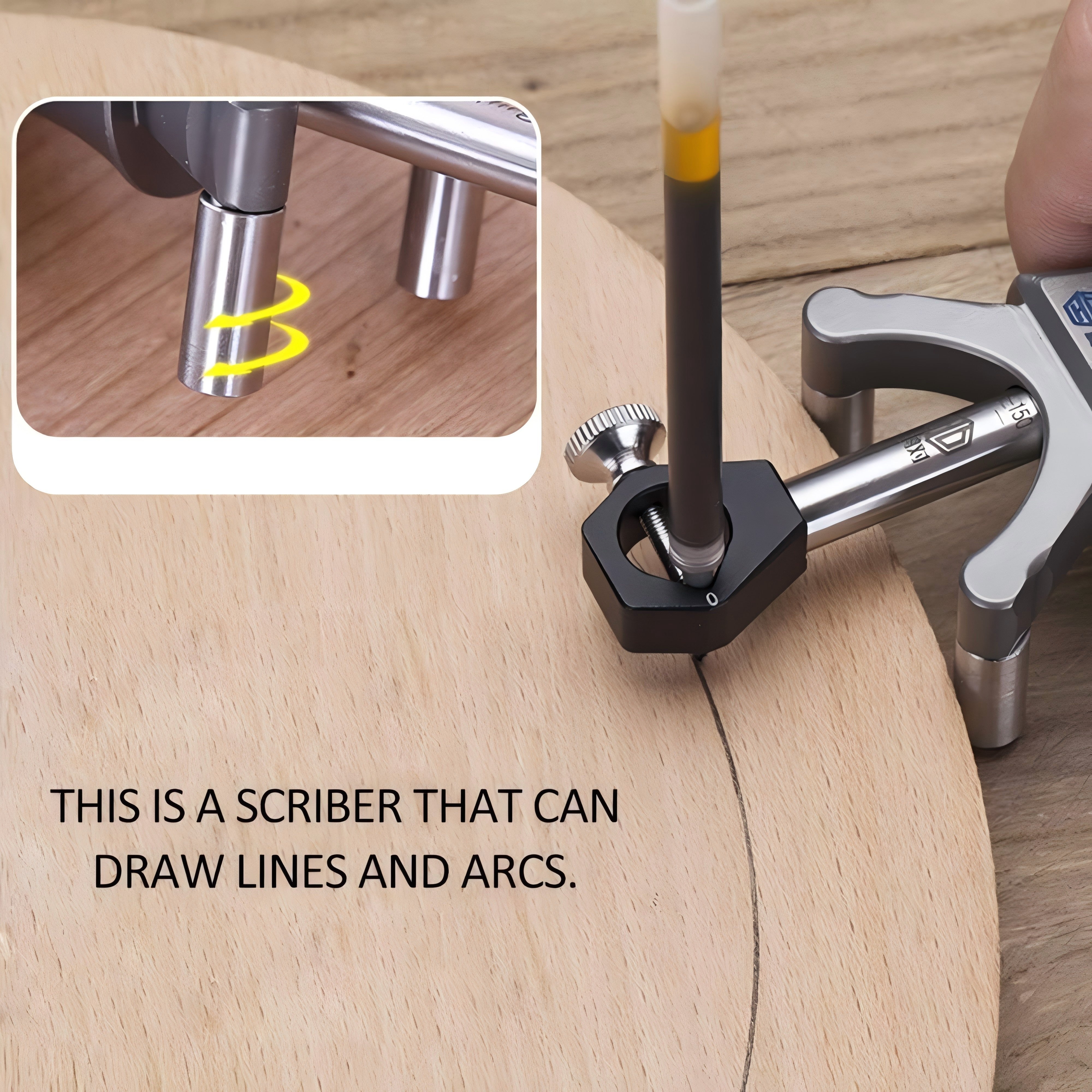

Funcionalidad 2 en 1: Lineal y Curva: La característica distintiva de la YH10 es su diseño de guía doble. Un lado sirve como guía plana para trazar bordes rectos, mientras que el lado opuesto utiliza rodillos dobles de acero inoxidable que se deslizan suavemente a lo largo de piezas de trabajo curvas cóncavas o convexas para trazar una línea curva perfectamente paralela.

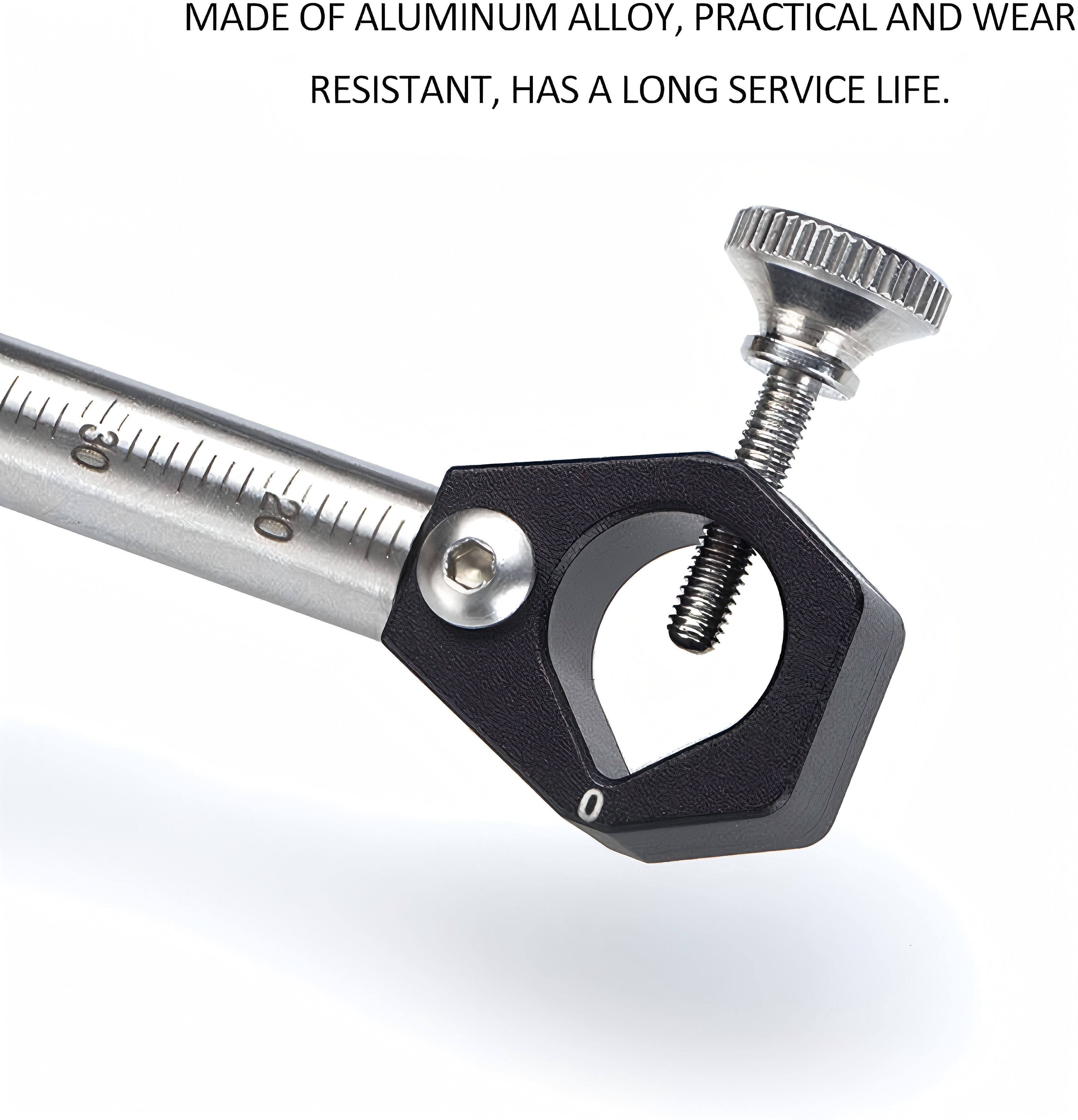

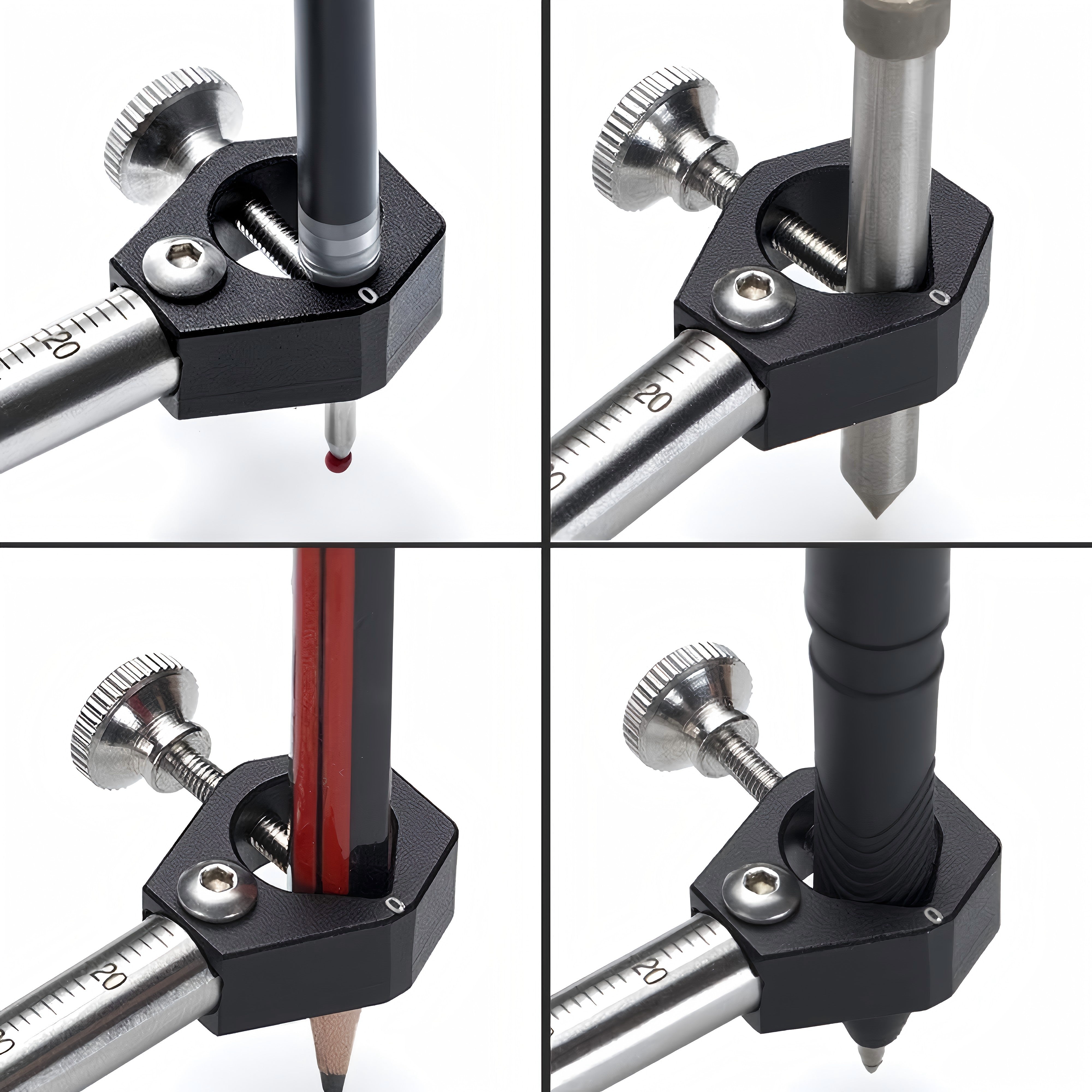

Soporte Universal para Lápiz y Cuchilla: Construido con un portabrocas altamente ajustable que puede acomodar herramientas de marcado de diámetros variables. Puede fijar la cuchilla de rueda de carburo de tungsteno ultra afilada incluida para obtener líneas de trazado nítidas y que cortan la veta en madera, o cambiarla por lápices estándar, bolígrafos o trazadores de acero.

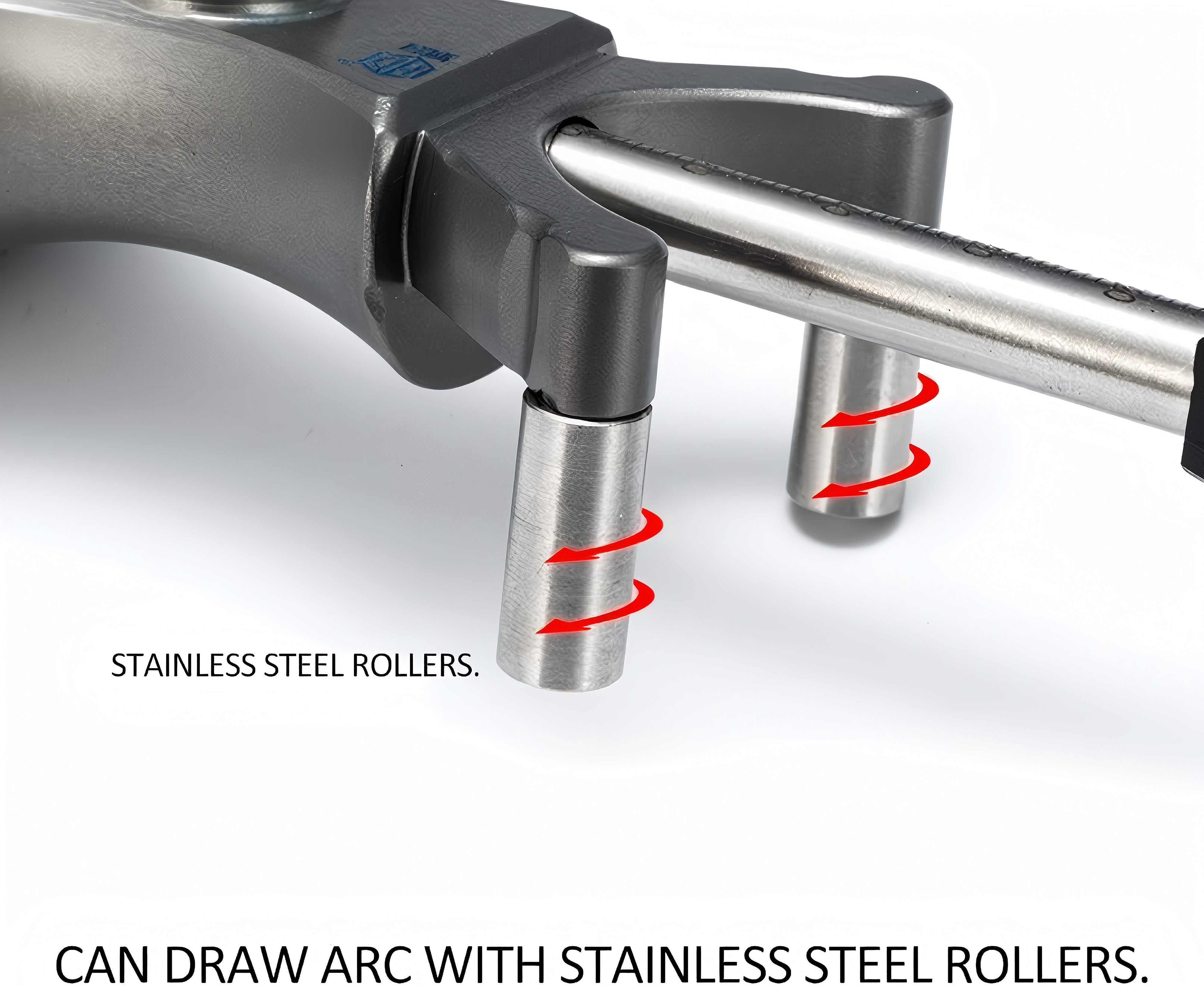

Seguimiento de Curvas con Rodadura Suave: El diseño del rodillo de acero inoxidable minimiza la fricción y evita que la herramienta se atasque, salte o dañe el borde de su pieza de trabajo. Esto la hace muy eficaz al dibujar círculos o contornear formas irregulares.
Versatilidad Multimaterial: Aunque está diseñada principalmente para trazados de precisión en carpintería, la durabilidad de la cuchilla de acero de tungsteno y el cuerpo rígido de aluminio permiten que marque o raye fácilmente líneas en acrílico, cerámica, chapa de hierro y cuero.
- Model: YH10

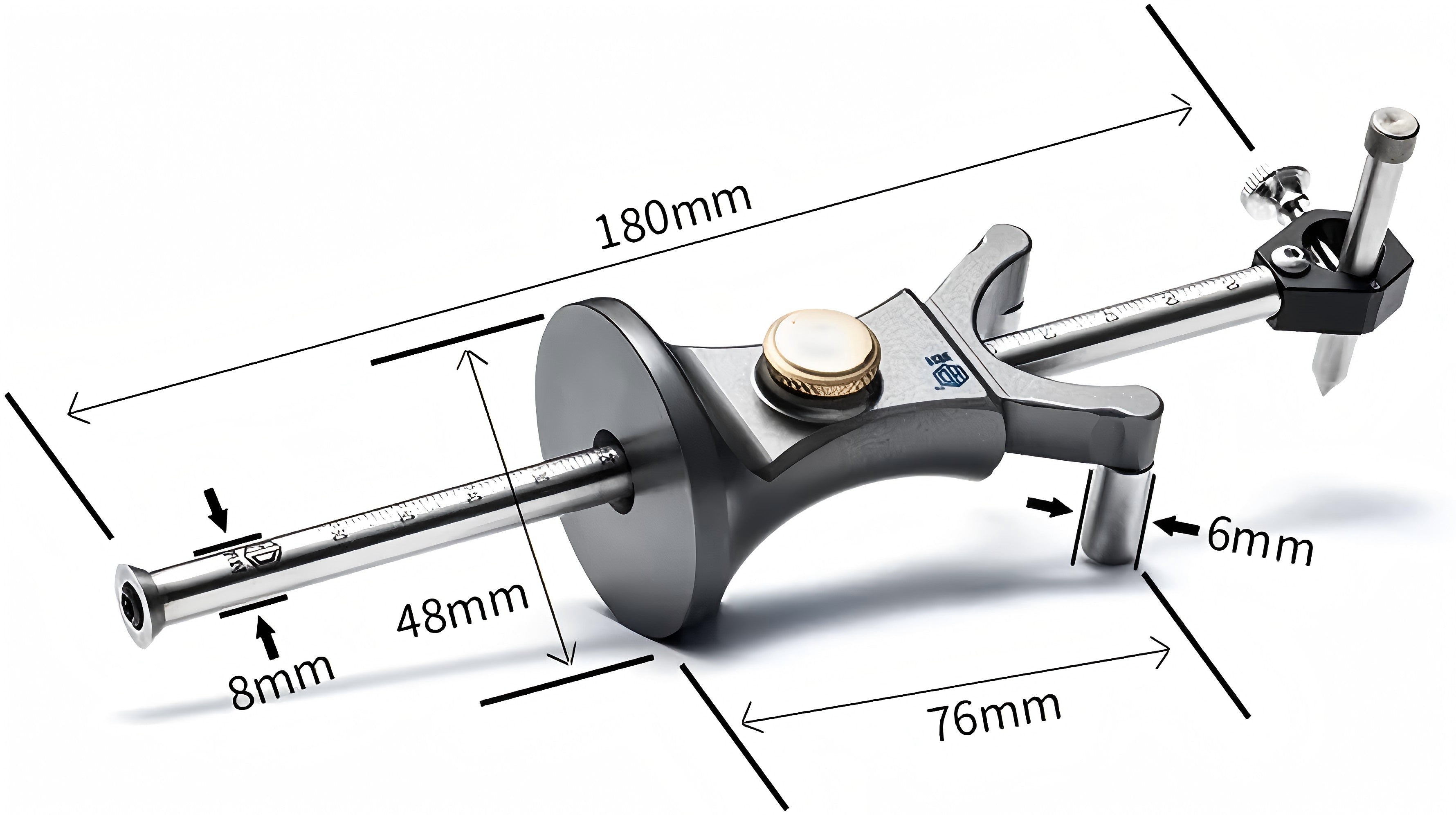

- Dimension: Approximately 210mm x 55mm x 55mm
- Material: High-grade 6061 Aluminum Alloy, Premium Solid Brass, and Hardened Steel
- Weight: Roughly 0.35kg
- Compatibility: Universal. Designed for seamless layouts on hardwoods, softwoods, and sheet goods.
1 * YH10 Wheel Marking Gauge
WARNING! This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
FAQ
Check out the most common questions our customers asked.
What is the maximum measurement range?
The standard stainless steel ruler is 200mm long. However, because the sliding body uses a standard-sized track, it can often accommodate longer rulers if your layout task requires a larger radius.
What are the primary functions of the YH10?
The YH10 serves two main roles:
1.Linear Scribing: Acting as a precision marking gauge to draw lines parallel to a straight edge.
2.Arc/Circle Scribing: Functioning as a heavy-duty compass to draw curves or circles.
What material is the YH10 made from?
The tool is CNC-machined from anodized aluminum alloy with a stainless steel ruler. This ensures the tool is lightweight enough for one-handed use but durable enough to resist rust and wear in a workshop environment.
How do I switch between linear and arc mode?
The tool features a dual-head design. One side of the marking head is flat for referencing against straight edges (Linear Mode). The other side features a specialized dual-roller guide that can follow curved edges or act as a pivot point for drawing arcs.
What kind of marking tips does it use?
The YH10 is highly versatile and supports:
1.Tungsten Steel Scriber: For marking permanent, crisp lines on wood, metal, or laminate.
2.Standard Pencil/Lead: The holder is designed to grip a standard pencil or a mechanical pencil for non-permanent layout marks.
How do I adjust the measurement?

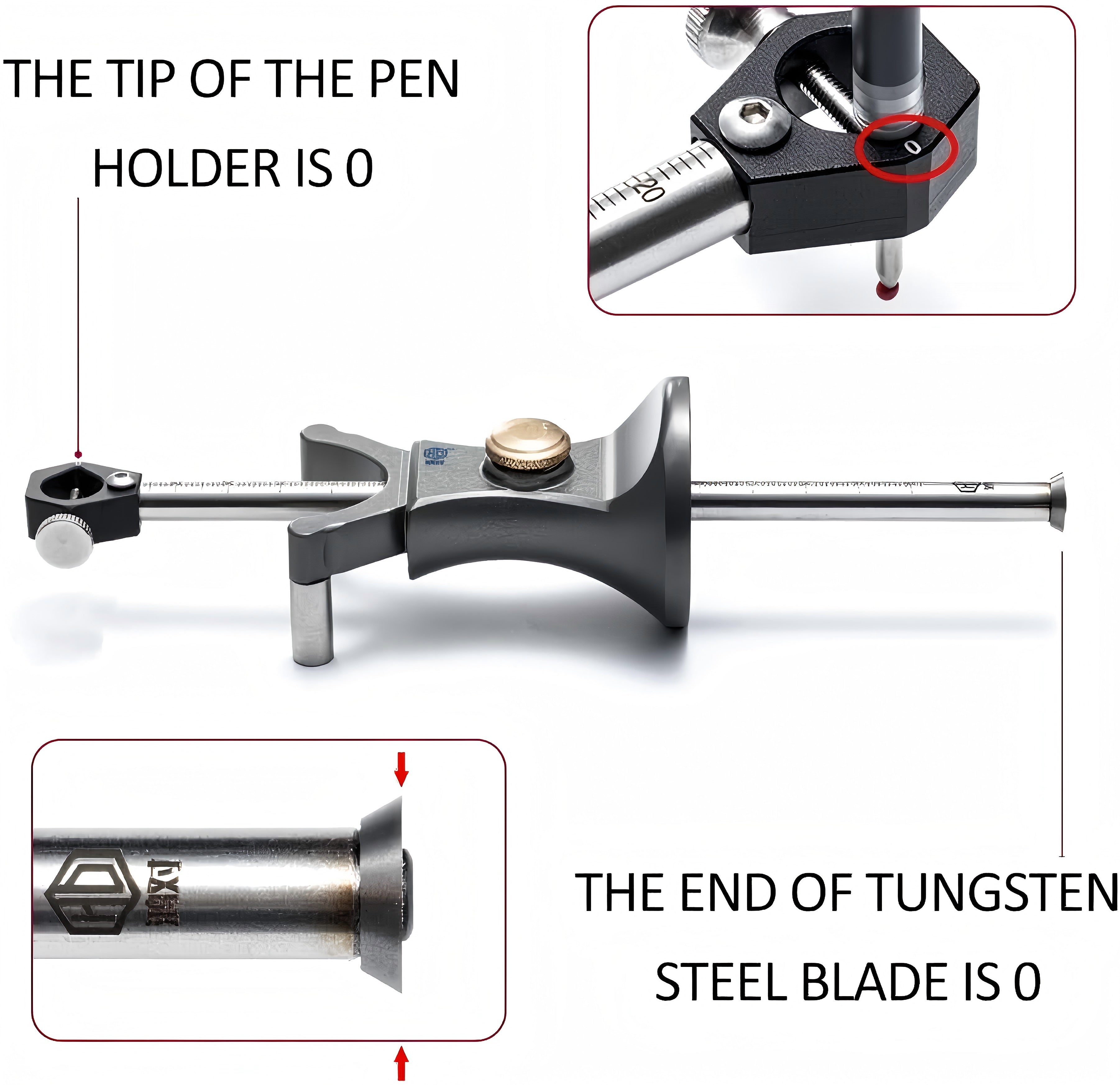

The tool features a knurled brass locking knob. Loosen the knob, slide the ruler to your desired measurement using the laser-etched scale, and tighten it. The sliding mechanism is machined to tight tolerances to ensure no "creep" occurs once locked.
How do I maintain the tungsten scriber tip?
Tungsten steel is exceptionally hard and will stay sharp for a long time. If it eventually becomes dull, it can be touched up on a fine diamond stone. Because it is a separate component, replacement tips are also available.
Does the aluminum body require special maintenance?
The anodized finish is very durable. Simply wipe it down with a dry cloth to remove sawdust. Avoid using harsh solvents that might affect the laser-etched scale; a bit of denatured alcohol is sufficient for removing sticky wood resin.
What should I do if the ruler doesn't slide smoothly?
This is usually caused by fine dust trapped between the ruler and the aluminum body. Remove the ruler entirely, blow out the channel with compressed air, and wipe the ruler clean. A light application of dry PTFE spray (not oil) will restore a smooth sliding action.
Why is my scribed line "waving" or not parallel?
This usually happens if the reference base is not held firmly against the edge of the board. Ensure you are applying consistent lateral pressure toward the workpiece while sliding the tool. For arc work, ensure the pivot point is firmly seated.
Can I use this on metal surfaces?
Yes. The tungsten steel tip is hard enough to scribe clearly on aluminum, brass, and mild steel, making it a useful tool for both woodworkers and light-duty metalworkers.
