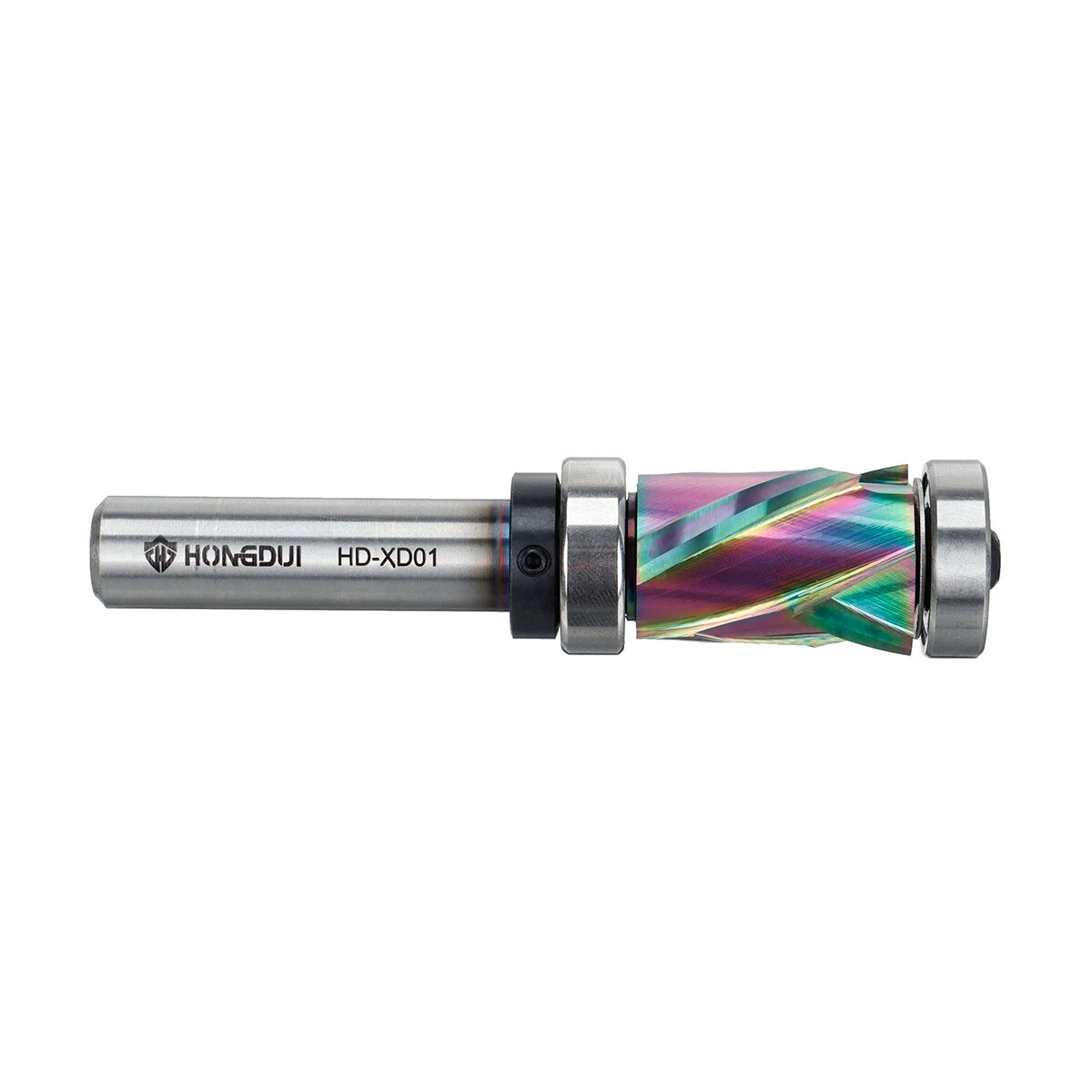

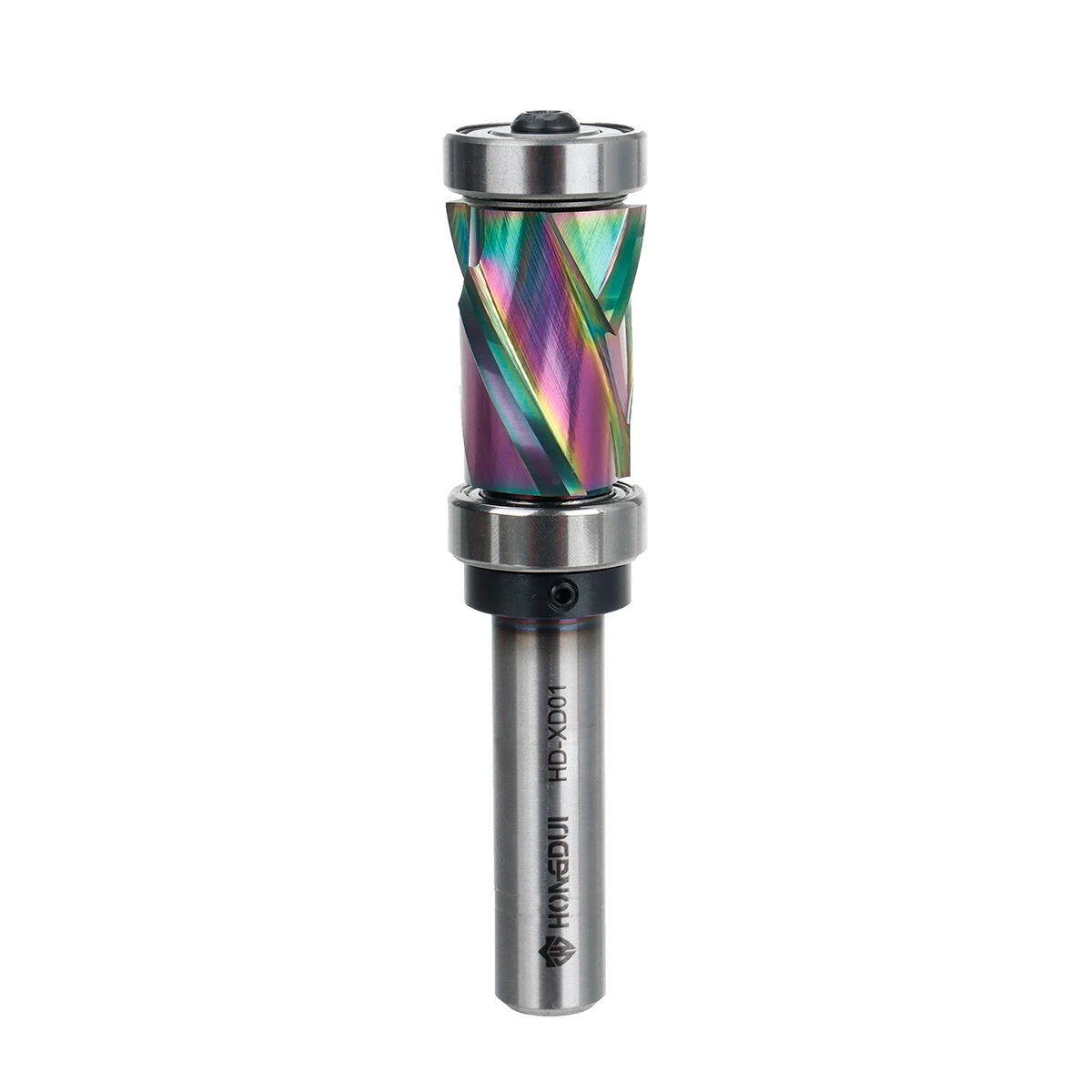

HONGDUI XD01 Flush Trim Router Bit
Tax included. Shipping calculated at checkout
Aggressive cutting angles on traditional bits always introduce tearing and micro-chipping when dealing with complex hardwoods or highly abrasive veneered sheets. The HONGDUI XD01 changes the game through its precision-engineered insert orientation, creating a true downward/upward shear slicing motion rather than a harsh chopping impact. By distributing cutting pressure symmetrically, it completely eradicates tear-out and grain lift. Load your template, engage the bearing reference, and plunge with absolute confidence.
Advanced Compound Spiral Blade Technology: Features a unique compression (Up & Down-Cut) spiral design. By cutting from both the top and bottom surfaces toward the center of the workpiece, it completely eliminates tear-out, leaving flawlessly clean edges on both faces of the wood.
Multi-Size Interchangeable Bearing System: Unlike standard single-bearing bits, the XD01 comes with an interchangeable set of bearing diameters (7/8", 3/4", 11/16", 5/8", 19/32", 1/2").
Versatile Step Milling / Rebating: By swapping out the different sized bearings, the bit seamlessly transitions from a standard flush-trim tool to a step milling router bit, capable of precise stepped offsets: 1/16", 3/32", 1/8", 9/64", and 3/16".
DLC ta-C Coating: The industrial-grade Diamond-Like Carbon coating offers extreme surface hardness and heat resistance. The 0.02 coefficient of friction prevents pitch and resin buildup, drastically extending the working lifespan of the cutting edges.
Heavy-Duty CNC Precision: Machined with tight industrial tolerances, providing an ultra-smooth, high-end mechanical balance that guarantees predictable, burn-free performance even when tackling unpredictable wood grain or stacked hardwoods.
- Model: XD01
- Material: Tungsten Steel
- Weight: Roughly 3.5kg
- Coating: DLC ta-C

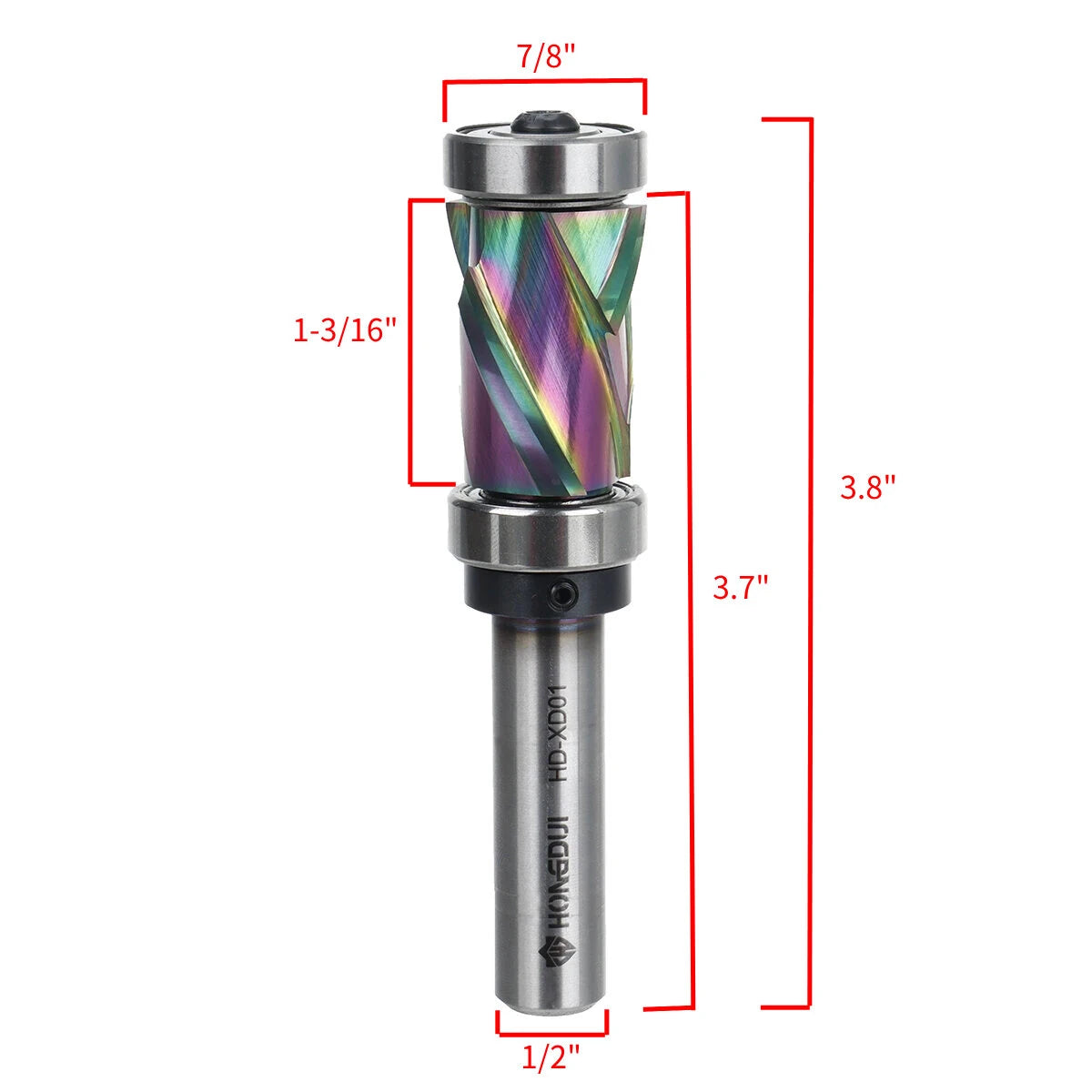

- Shank Diameter: 1/2 Inch(12.7mm)
- Blade Diameter: 7/8 Inch(22.2mm)
- Blade Length: 1-3/16"(30.2mm)
- Overrall Length: 94mm
- Bearing diameter: 7/8", 3/4", 11/16", 5/8", 19/32", 1/2"

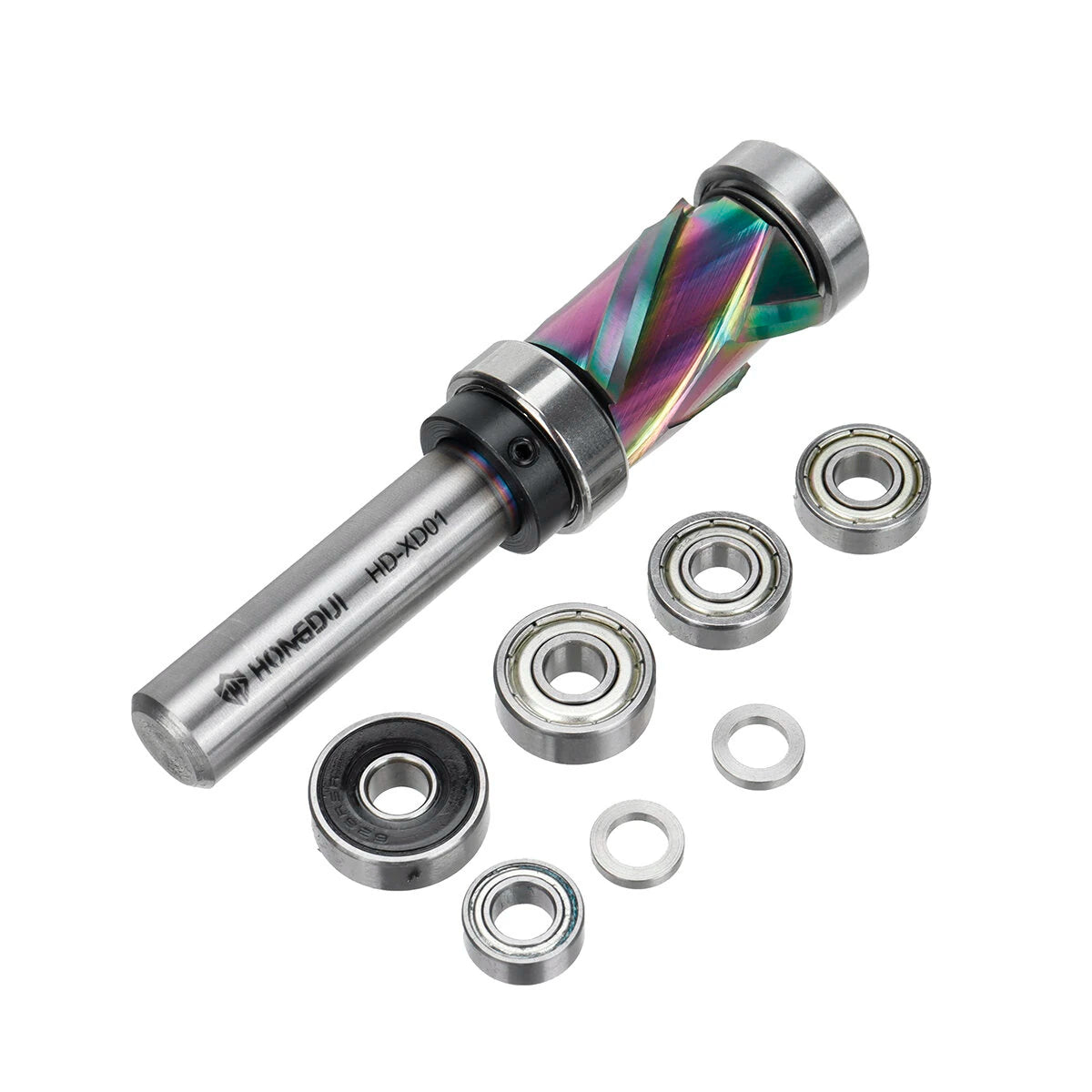

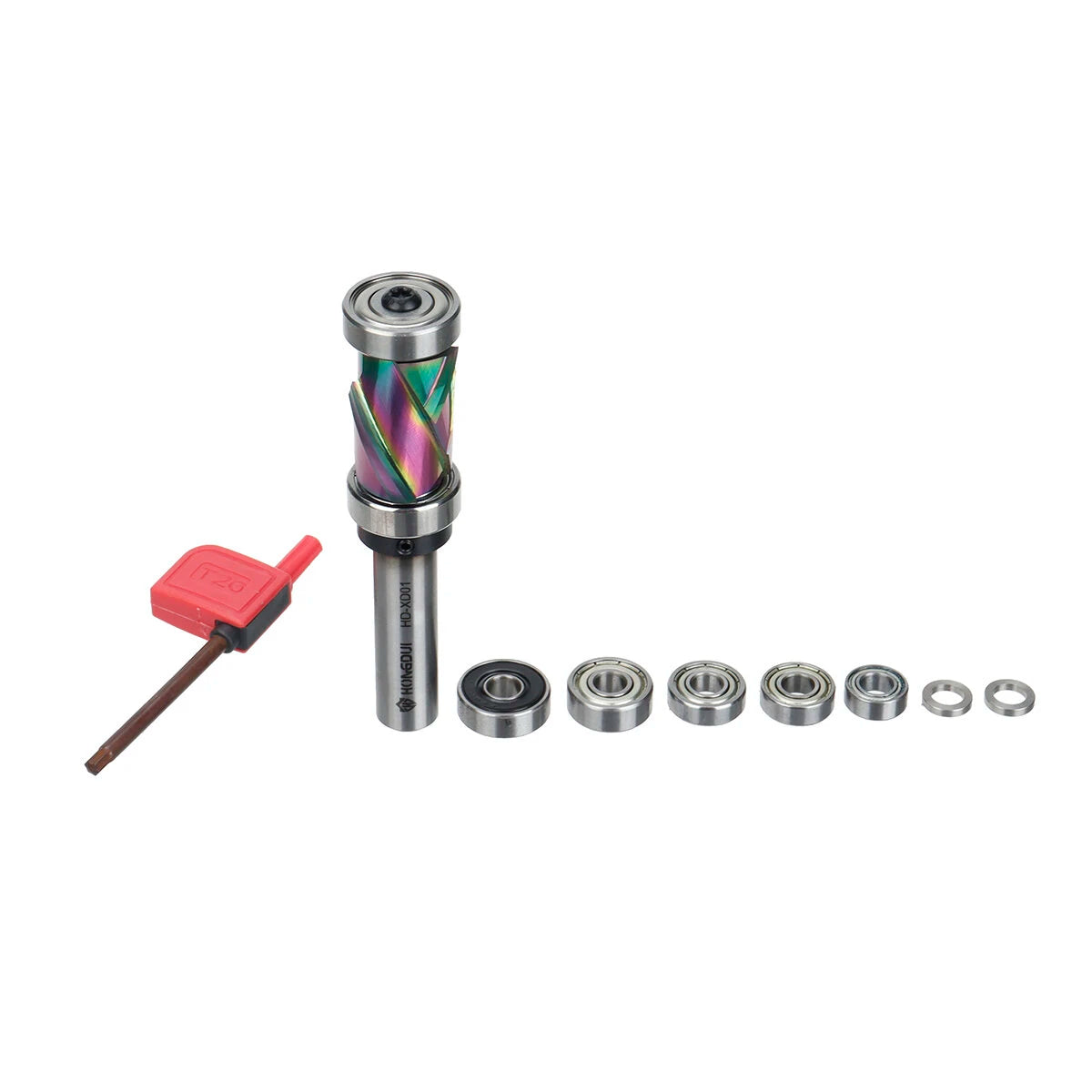

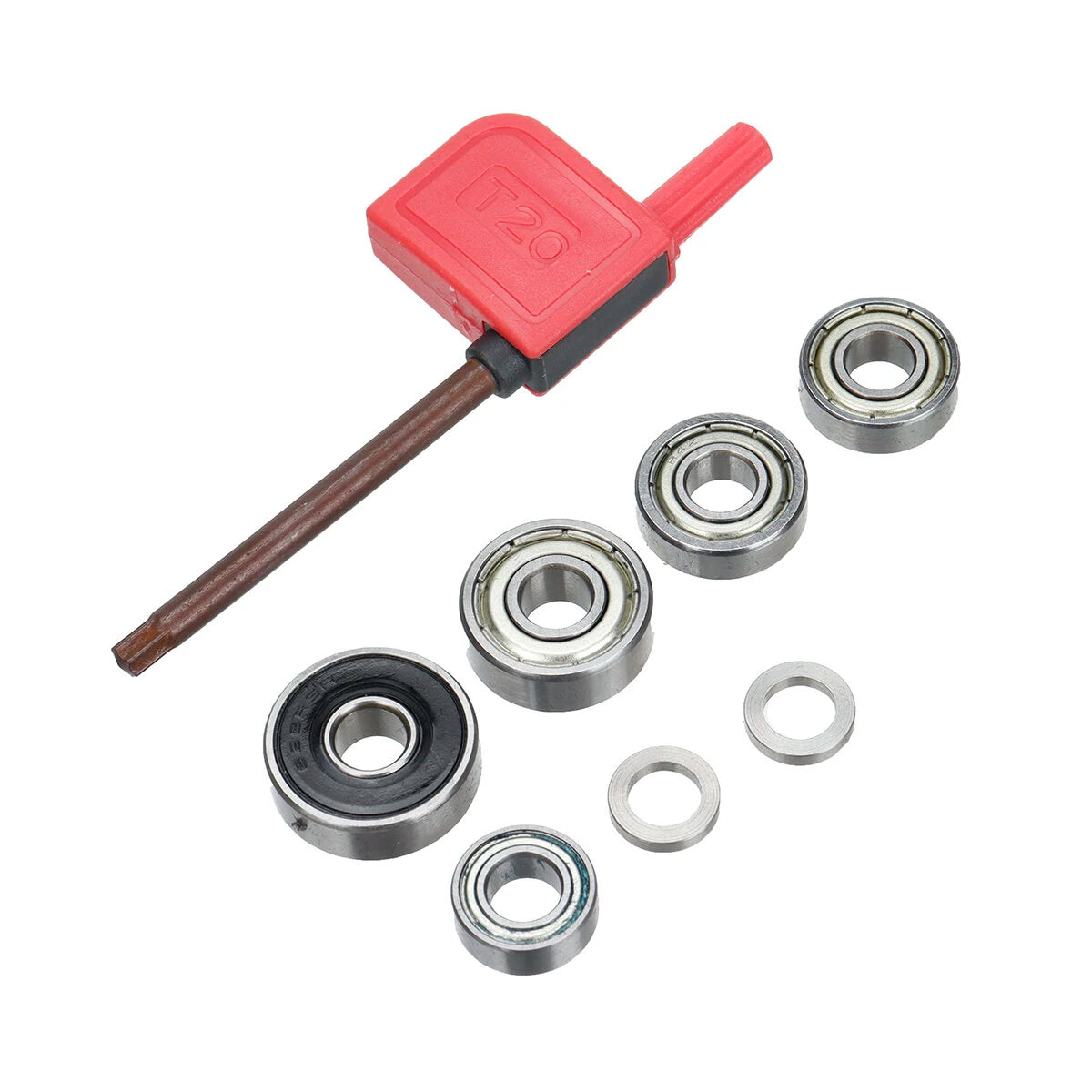

1 * Router Bit, 6 * Bearings
WARNING! This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
