HONGDUI HD30-PC09 TrueGrid MFT Drilling Layout
Tax included. Shipping calculated at checkout
Manual layout math always introduces error compounding down the line. The HONGDUI PC09 changes the game by using a flawless, physical indexing registration system that mechanically locks into place for every consecutive plunge. Whether you are boring a flagship MFT station from scratch or field-drilling an extension top, the PC09 prevents drill bit wandering and twisting. Setup once, plunge with absolute confidence, and unlock CNC-grade stability using your standard hand drill.
CNC-Level Precision Without the Machine
Engineered to achieve CNC-like accuracy for dog hole grids on any standard wooden workbench.
Eliminates human error by utilizing a rigid mechanical interlocking system rather than manual marking.
Rock-Solid "Mechanical Locking" Logic

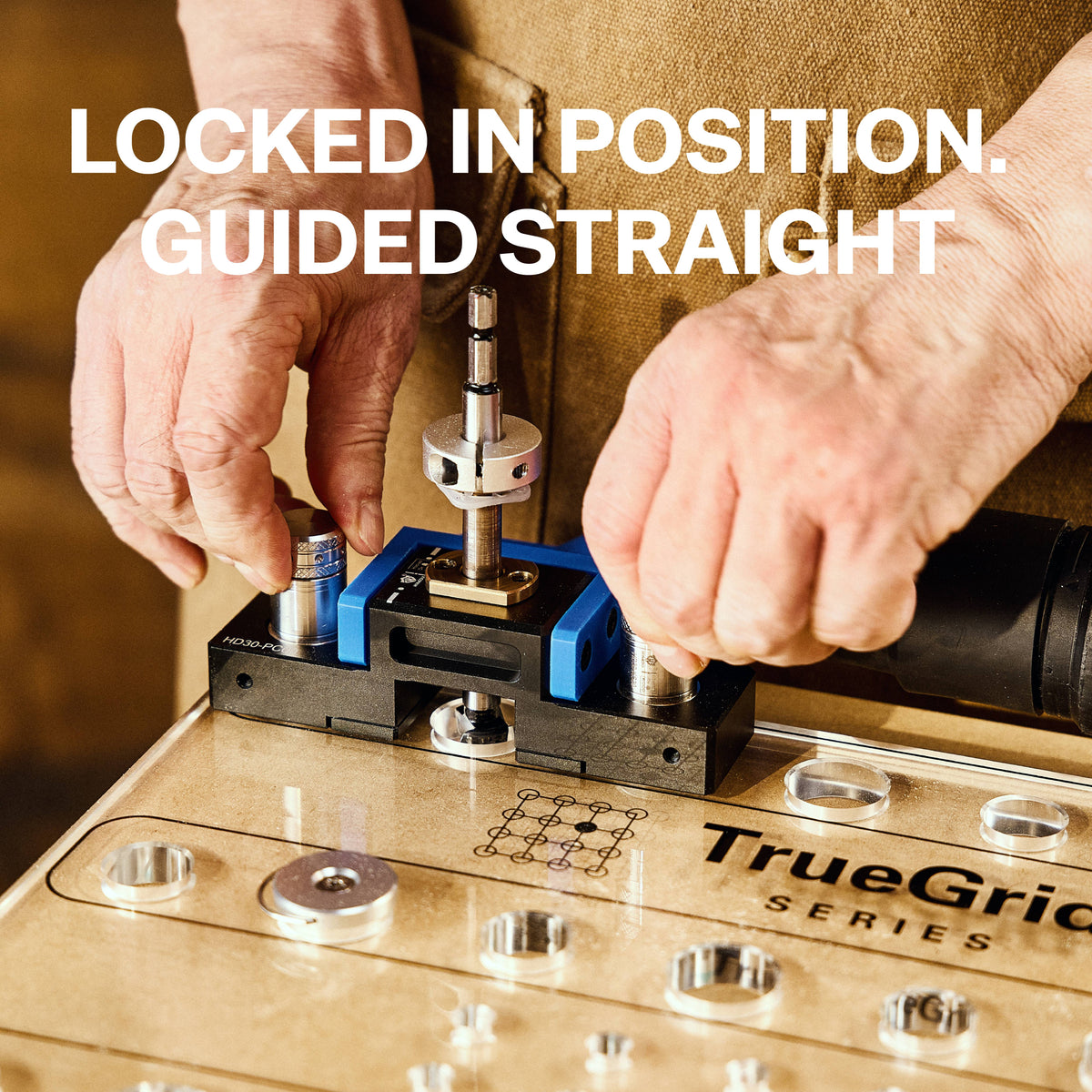

Screw-down Caps: Unlike systems that rely on prone-to-shift clamps, the TrueGrid template is screwed directly into the tabletop, becoming "one" with the workbench for zero movement during drilling.

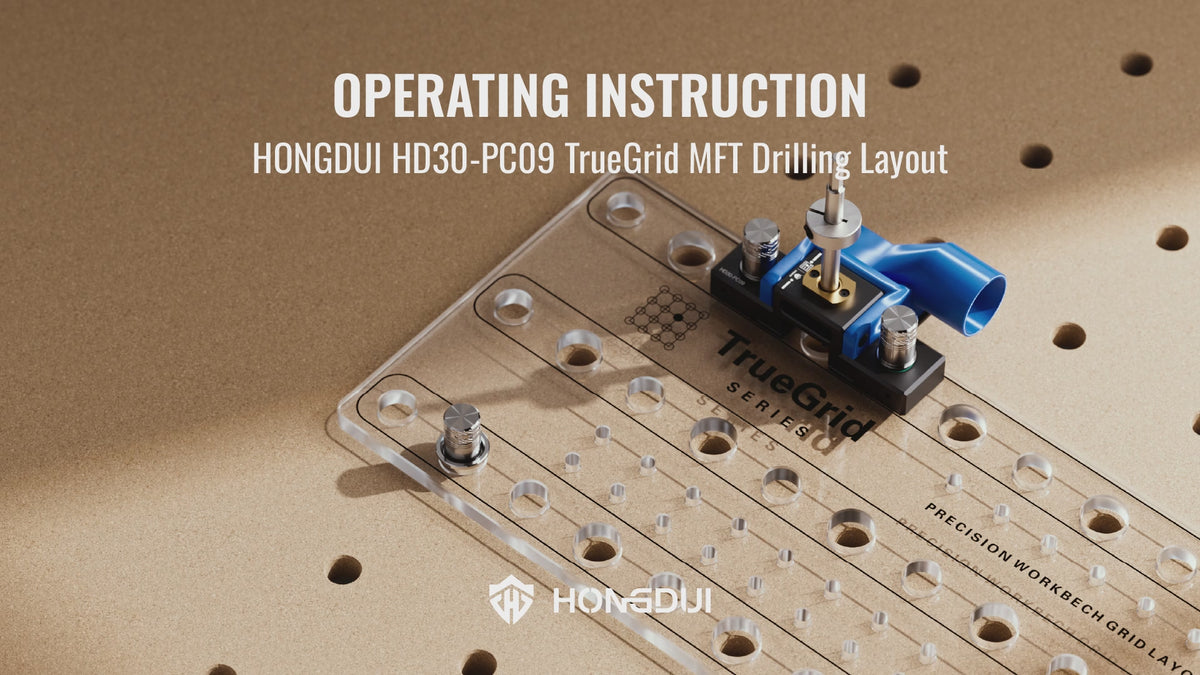

Three-Ring Expansion Alignment: Designed around the signature HONGDUI 3-ring expansion bench dogs, the drill guide mechanically locks into the template, providing maximum resistance against tipping or shifting.
High-Precision Dual-Stage Drilling
3mm Pilot Guide: Includes a dedicated pilot drill guide to create a clean, perfectly vertical center point before final boring.
Custom Long-Shank Forstner Bit: Features a premium, ultra-sharp Forstner bit with an extended shank, capable of drilling through worktops up to 40mm thick with 100% perpendicularity.
Ultimate Layout Flexibility

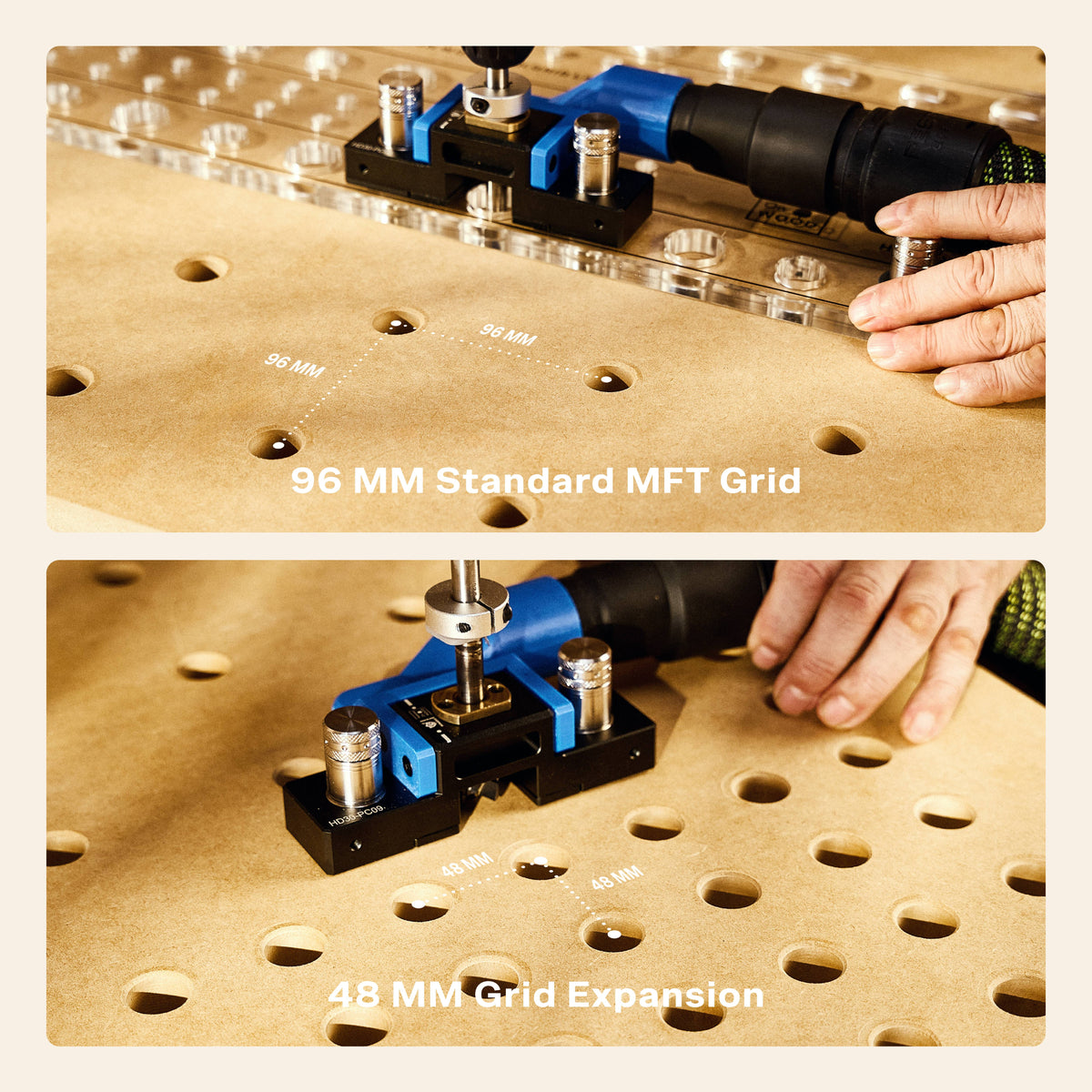

96mm & 48mm Compatibility: While the base grid is a standard 96mm, the system allows you to accurately drill intermediate holes to increase local resolution to 48mm (ideal for areas near a vise).

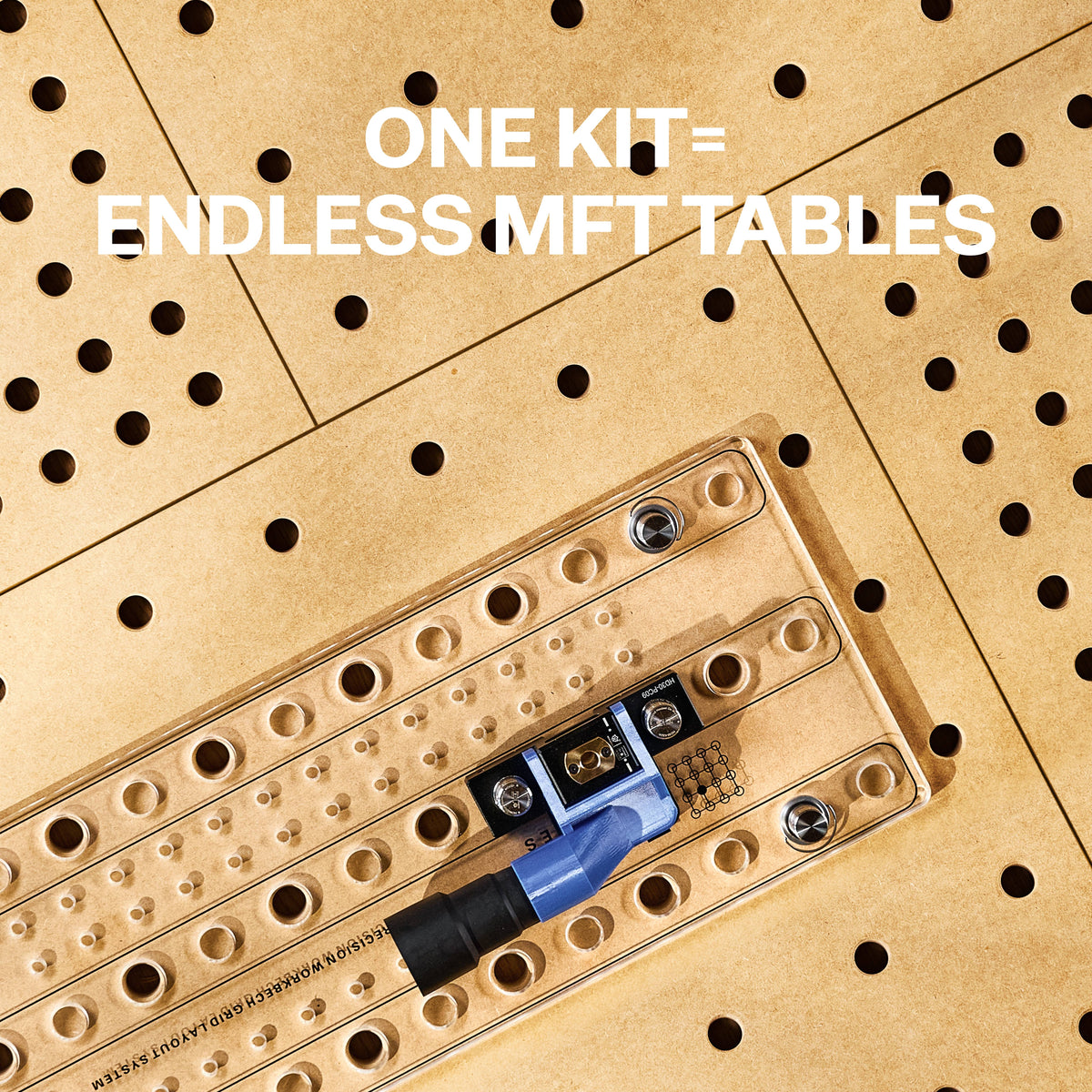

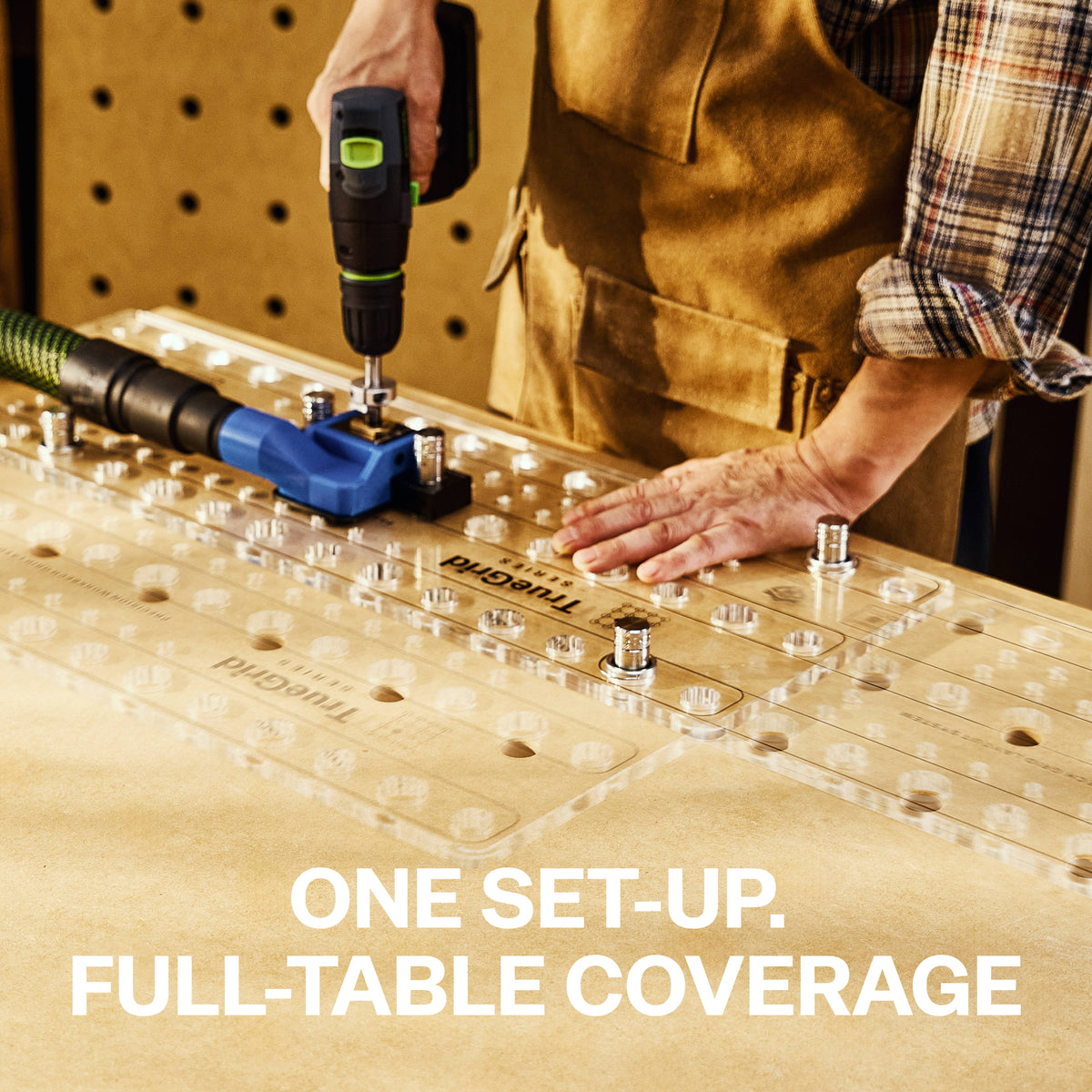

Infinite Grid Expansion: By using "Anchor Rings" and maintaining three points of contact with previously drilled holes, the template can be moved across any size workbench while maintaining perfect alignment.
- Model: HD30-PC09
- Size: 72.5*24.5*1.1cm
- Material: Polymethyl methacrylate (PMMA)
- Compatibility: Standard 20mm Dog Hole
WARNING! This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov

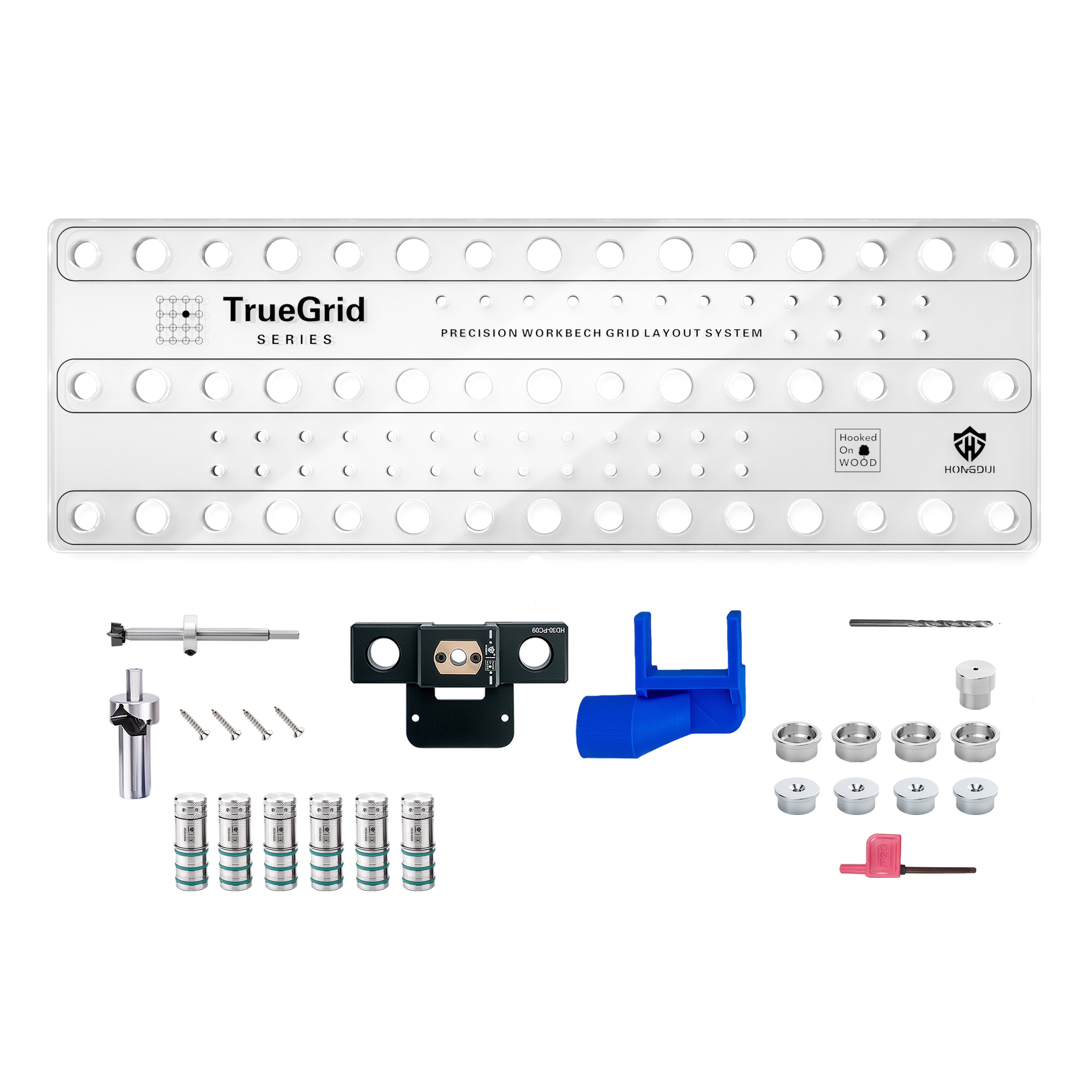

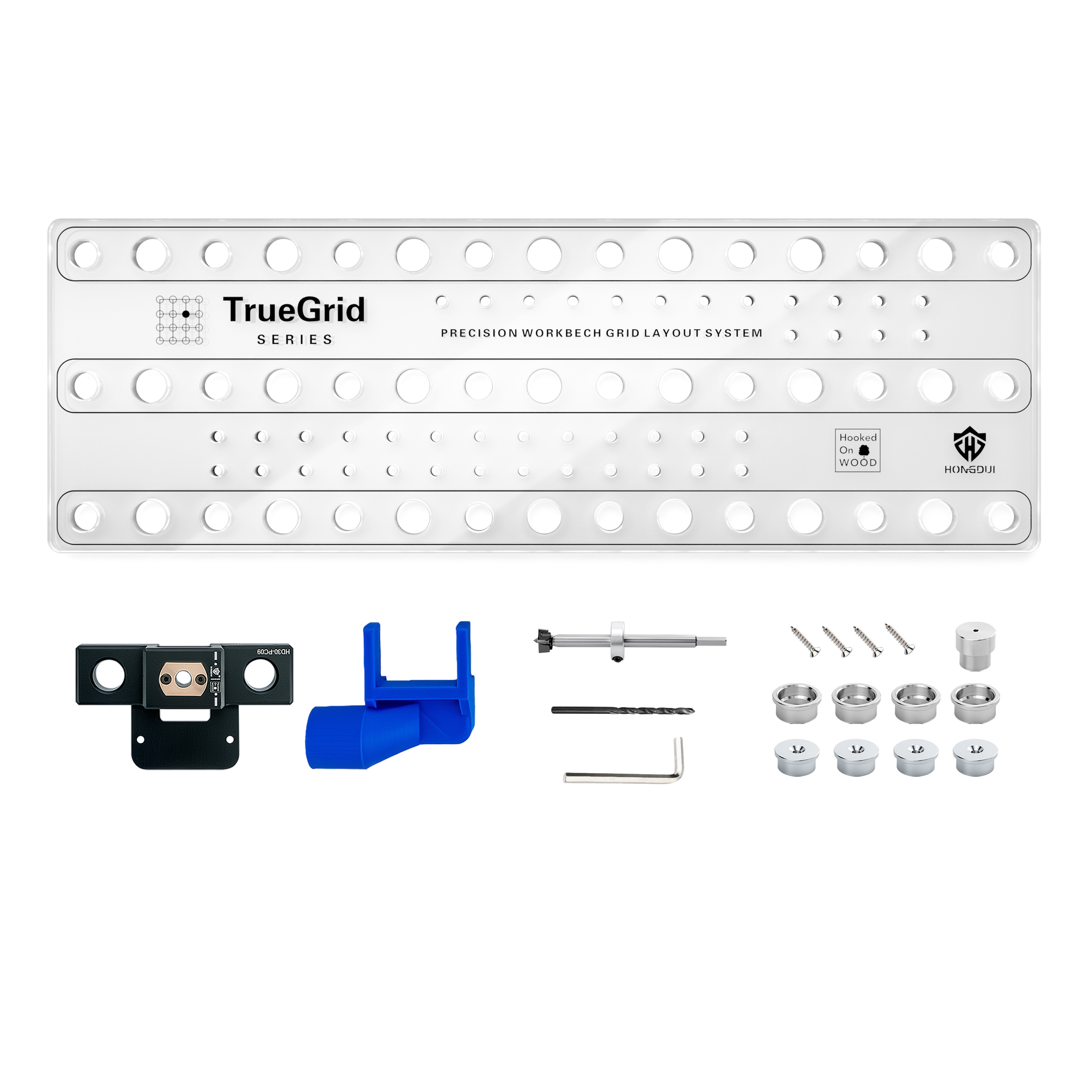

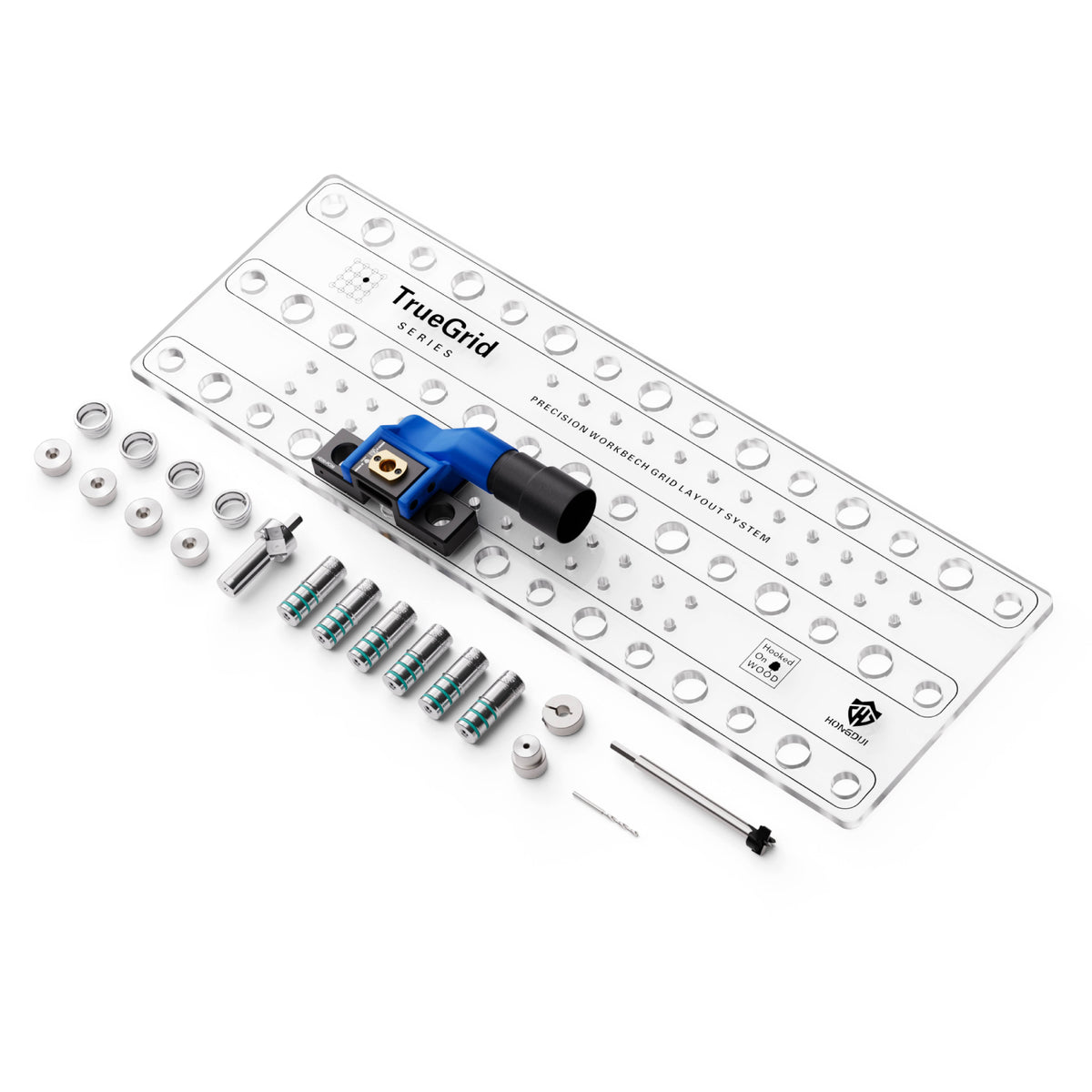

HD30-PC09-01: 1 x TrueGrid Layout Template, 1 x 20mm Long-Shank Forstner Bit, 1 x Main Drill Guide with High-Efficiency Dust Shroud, 1 x 3mm Drill Bit, 1 x 3mm Drill Bushing, 4 x Precision Anchor Rings, 4 x Screw-down Caps, 4 x M5*30mm Wood Screws, 1 x Hex Key for Forstner Bit Stop, 1 x Vacuum Hose Adapter
HD30-PC09-02: 1 x TrueGrid Layout Template, 1 x 20mm Long-Shank Forstner Bit, 1 x Main Drill Guide with High-Efficiency Dust Shroud, 1 x 3mm Drill Bit, 1 x 3mm Drill Bushing, 4 x Precision Anchor Rings, 4 x Screw-down Caps, 4 x M5*30mm Wood Screws, 1 x Hex Key for Forstner Bit Stop, 1 x Vacuum Hose Adapter, 1 x HD30-KJ01 Hole Chamfer & Reamer Tool, 6 x HD30-KS30 Bench Dogs, 1 x Hex Key for Reamer
HD30-PC09-01 (Standard Edition):
Ideal for woodworkers who already own HONGDUI bench dogs or chamfer tools. It comes with the core TrueGrid template, main drill guide, 20mm Forstner bit, vacuum shroud, and all required mounting hardware.
HD30-PC09-02 (Master Edition):
The complete all-in-one solution. In addition to the standard kit, PC09-02 adds the HD30-KJ01 Chamfer & Reamer Tool and 6× HD30-KS30 Bench Dogs, allowing you to drill, chamfer, and register your grid setup seamlessly without buying extra accessories.
HONGDUI TrueGrid MFT Layout
Enter workbench dimensions → Auto-calculate centered offset → Drag template to preview placement
Workbench Dimensions
TrueGrid Fixed Constants
Constant X (Long Edge): 74 mm
Constant Y (Short Edge): 26 mm
Grid Pitch: 96 mm
Minimum required: 725mm (Side A) × 245mm (Side B)
Results
Installation Summary
HD30-PC09 TrueGrid
Unlock CNC-Grade Accuracy Effortlessly

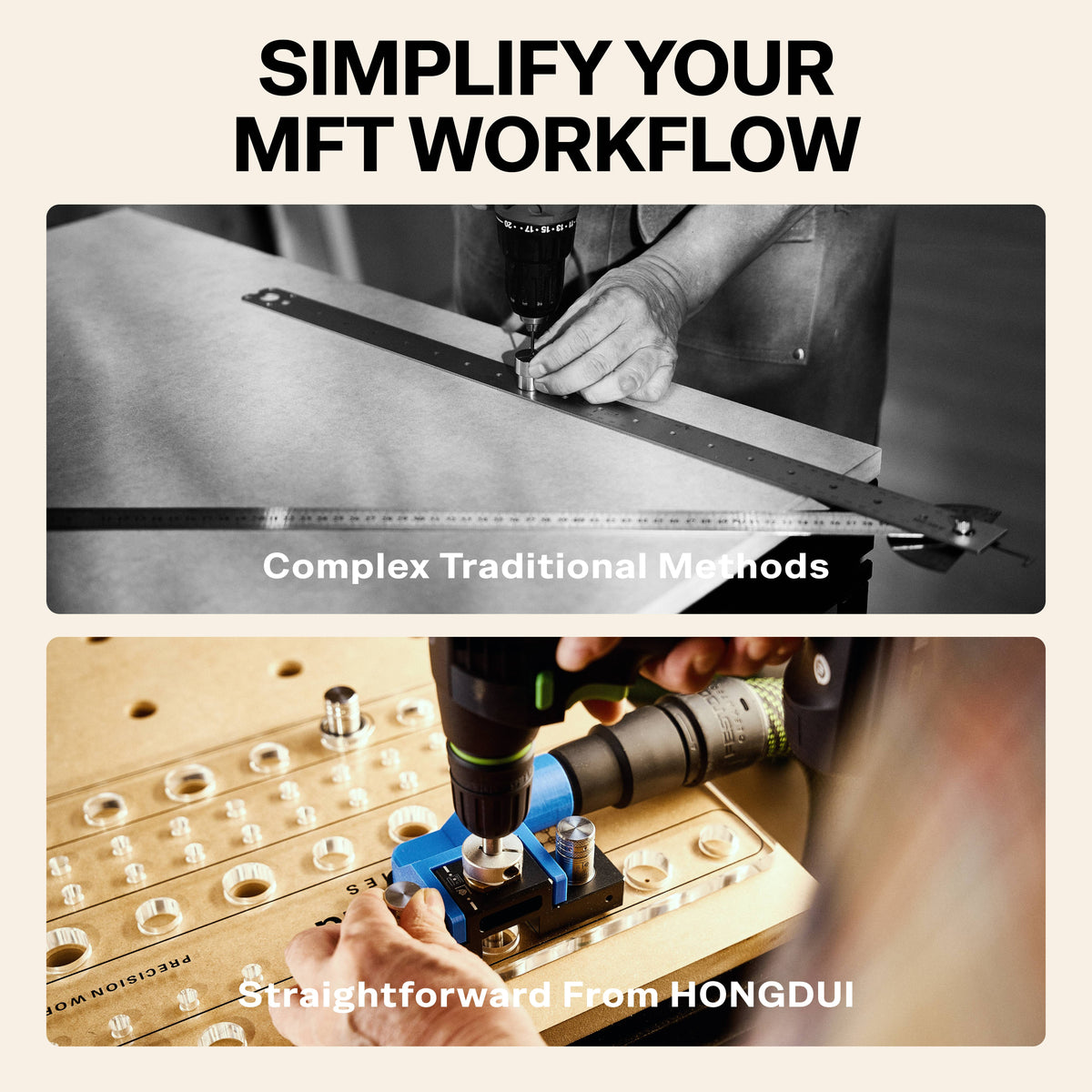

Say goodbye to accumulated errors and crooked holes from manual layout. The PC09 TrueGrid MFT Drilling Guide System features industrial bushings and precision indexing to replicate flawless grid patterns on any sheet material—no CNC required. With a simple 3-step setup, it delivers 100% vertical holes, absolute 90° squareness, and a snug fit for all your bench dogs, allowing you to build unlimited professional MFT worktops with ease.
