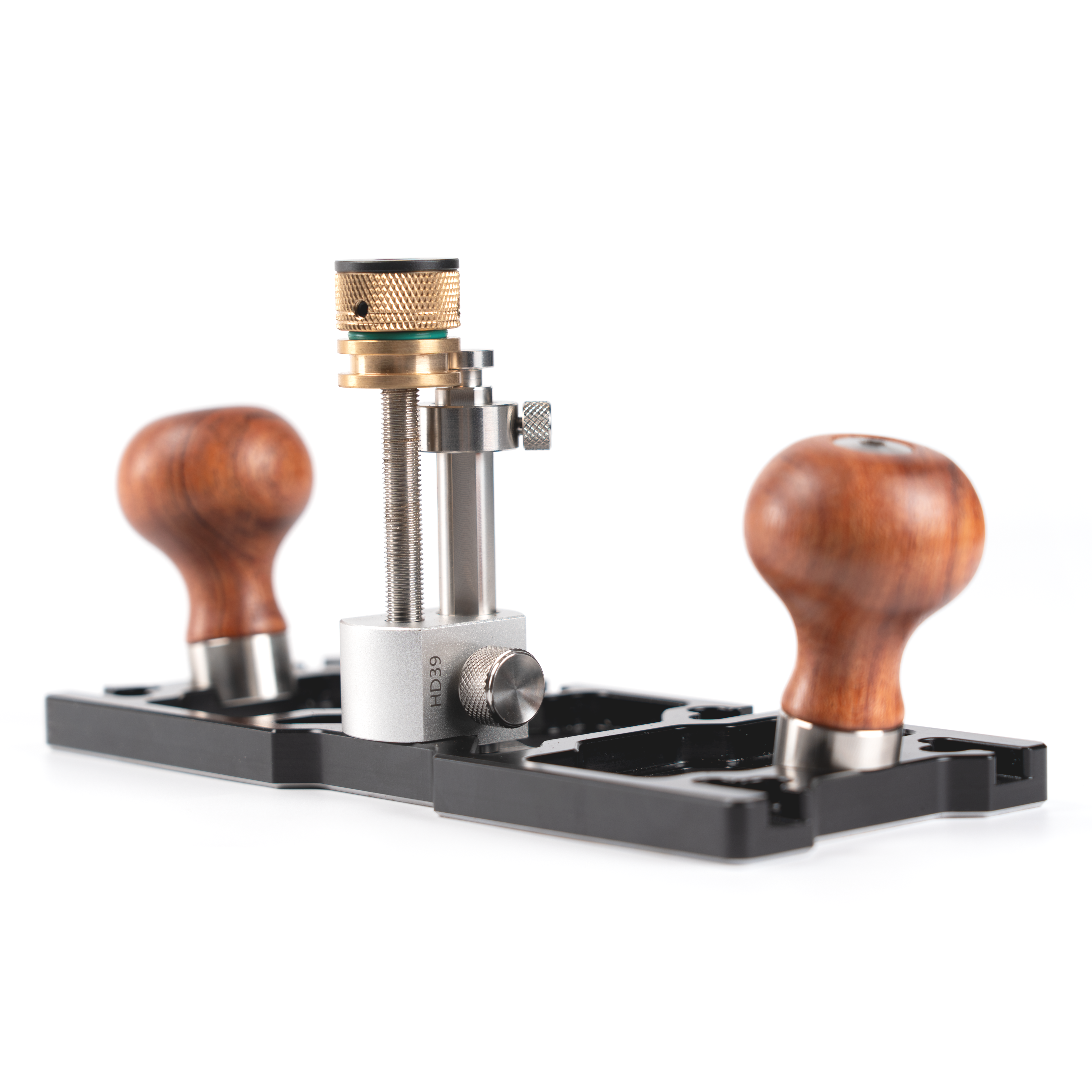

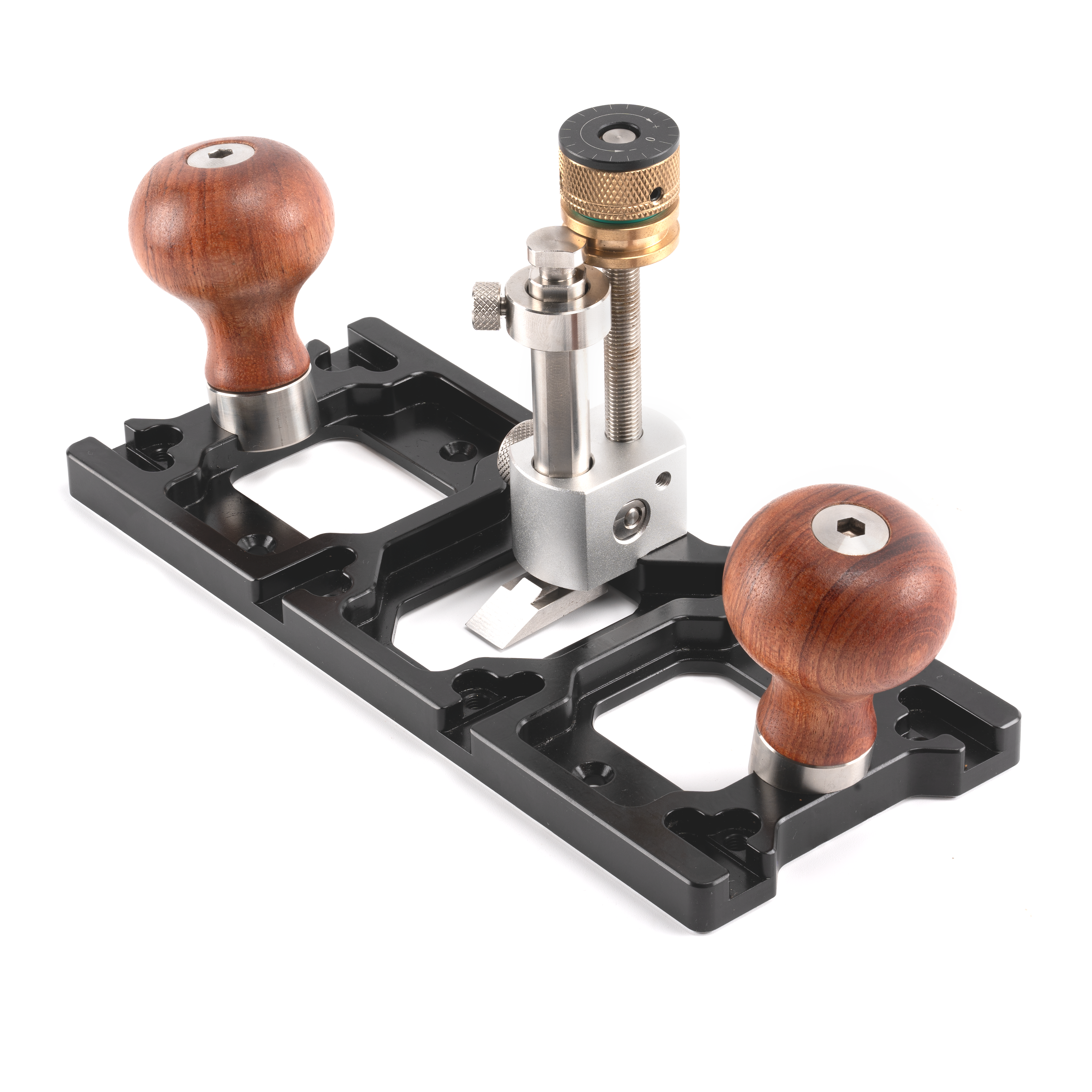

HONGDUI HD39 Router Plane
The HONGDUI HD39 is a professional-grade router plane engineered to bring unparalleled accuracy, control, and repeatability to your joinery work. The tool eliminates the guesswork when cleaning up dadoes, routing hinges, or cutting perfect tenons.
360° Grain-Adaptive Cutting: The entire blade indexing mechanism can be rotated 360 degrees within its mounting points. This allows the woodworker to always cut with the grain rather than against it, completely avoiding grain tear-out regardless of the direction you are pushing or pulling the plane.

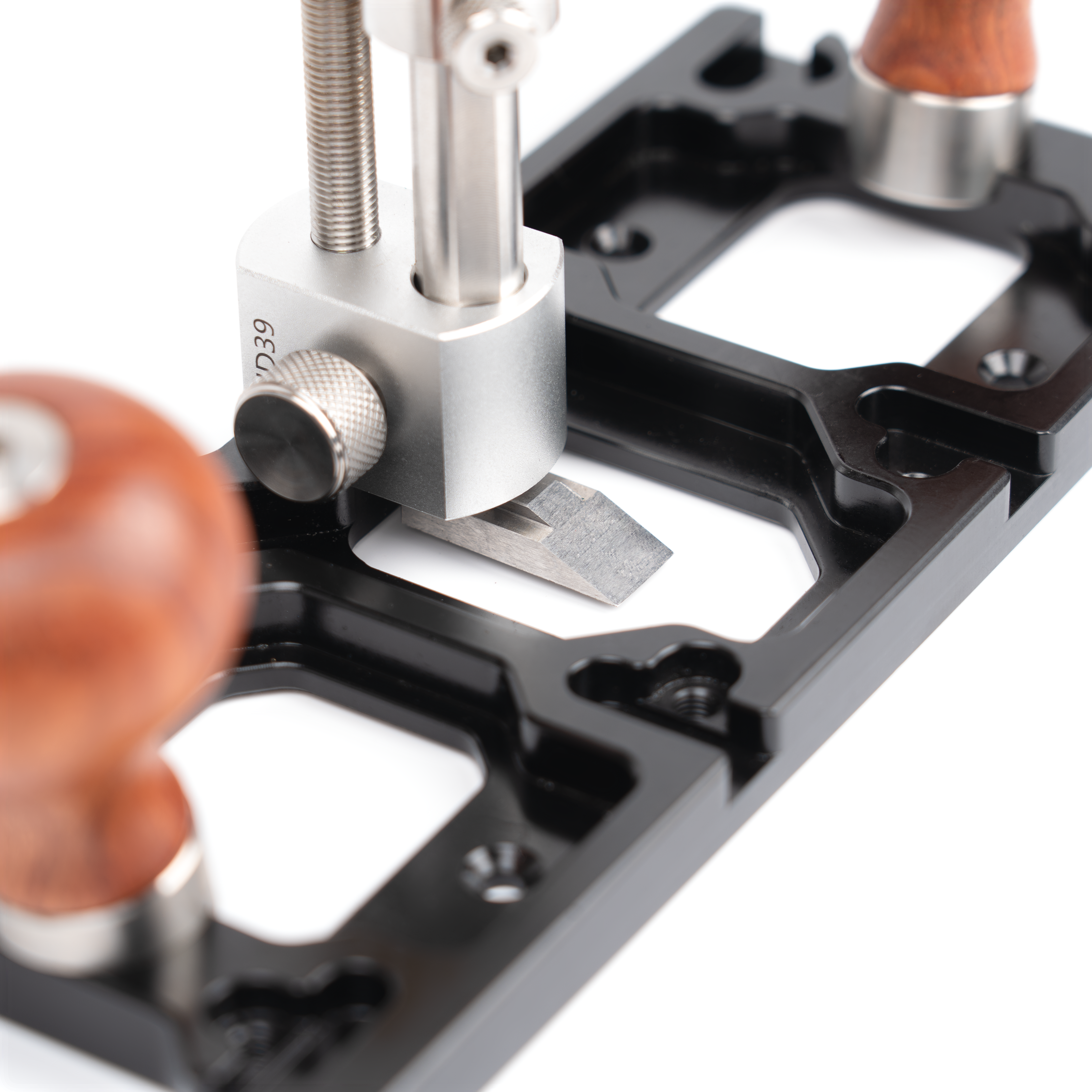

Three Blade Mounting Locations: Unlike traditional router planes with a fixed central blade position, the HD-39 allows you to move the cutter to the front or sides of the heavy die-steel sole. This enables flush-trimming right up against closed corners, blind mortises, or the internal edges of a frame.

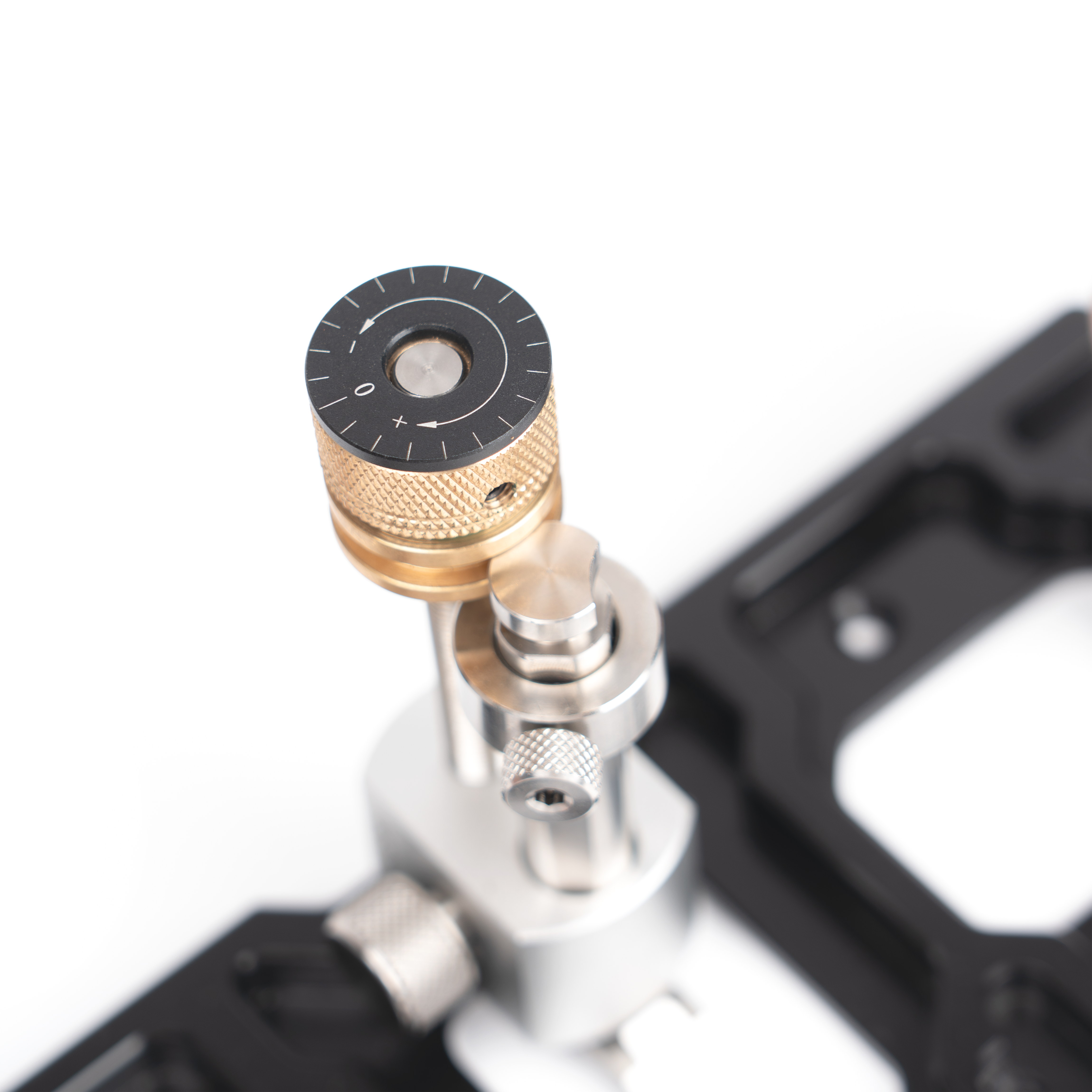

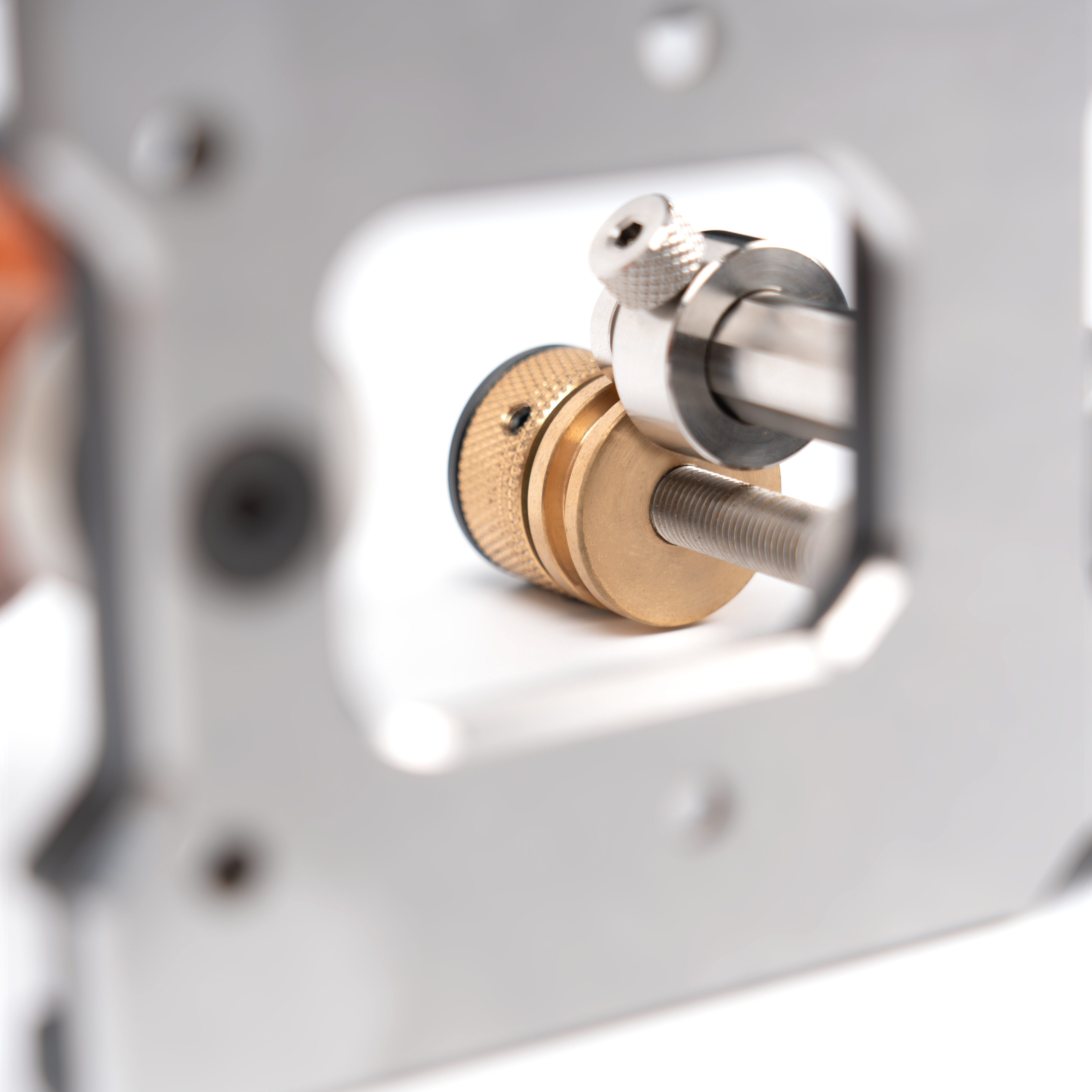

Zero-Slop Micro-Depth Adjustments: Machined to extremely tight industrial tolerances, the thumbwheel adjustment system is fluid and tight, completely eliminating back-lash or cutter slip when locking in your exact depth of cut.

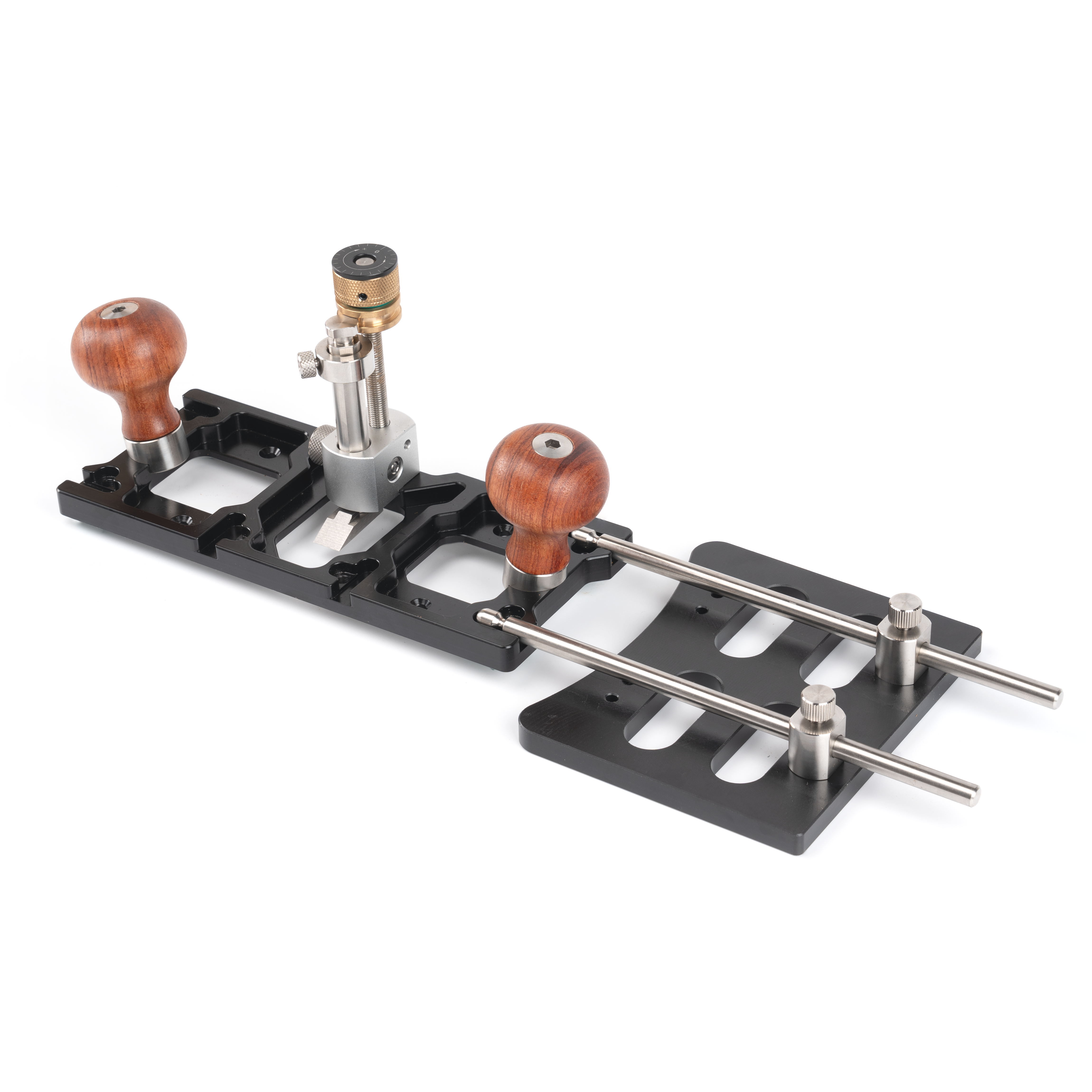

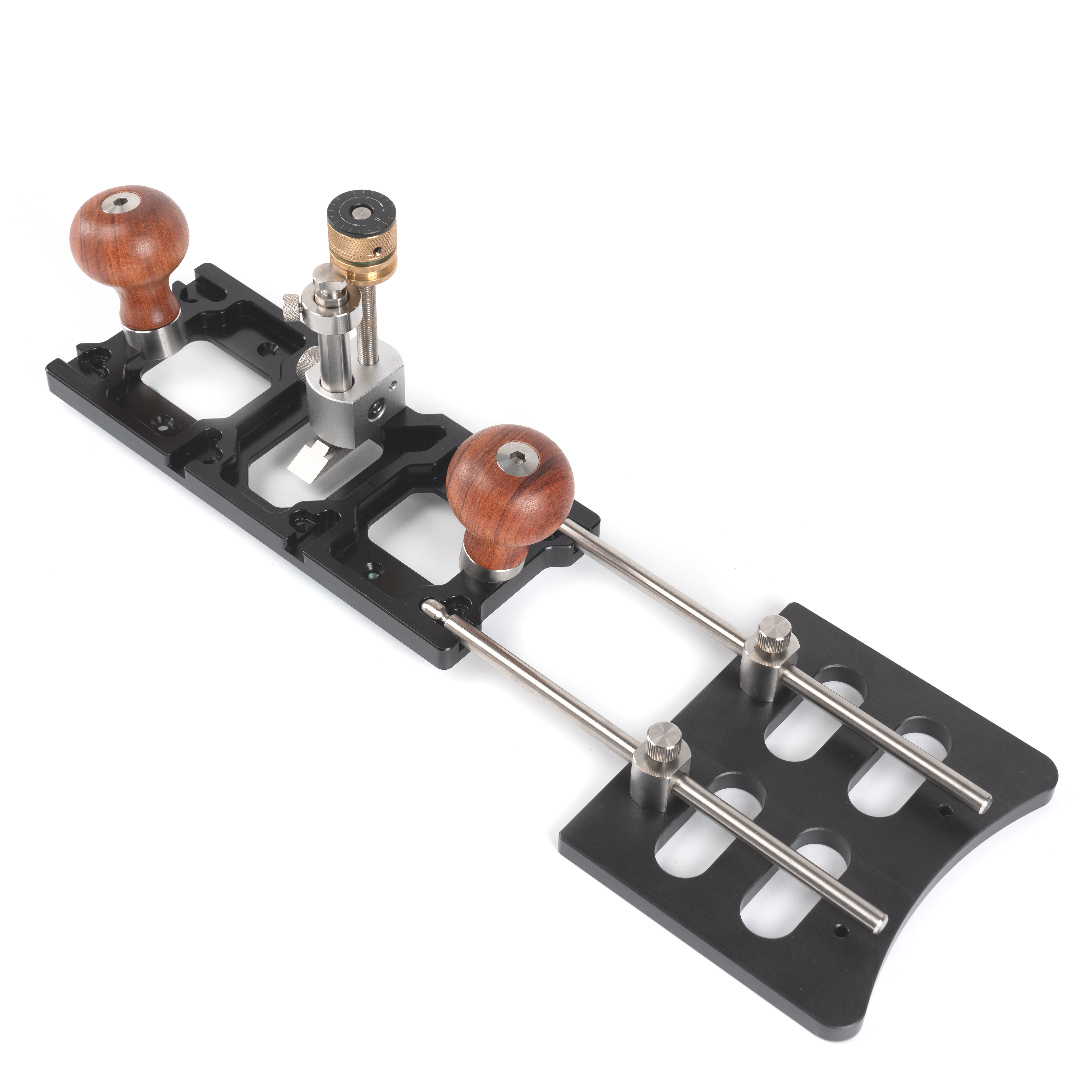

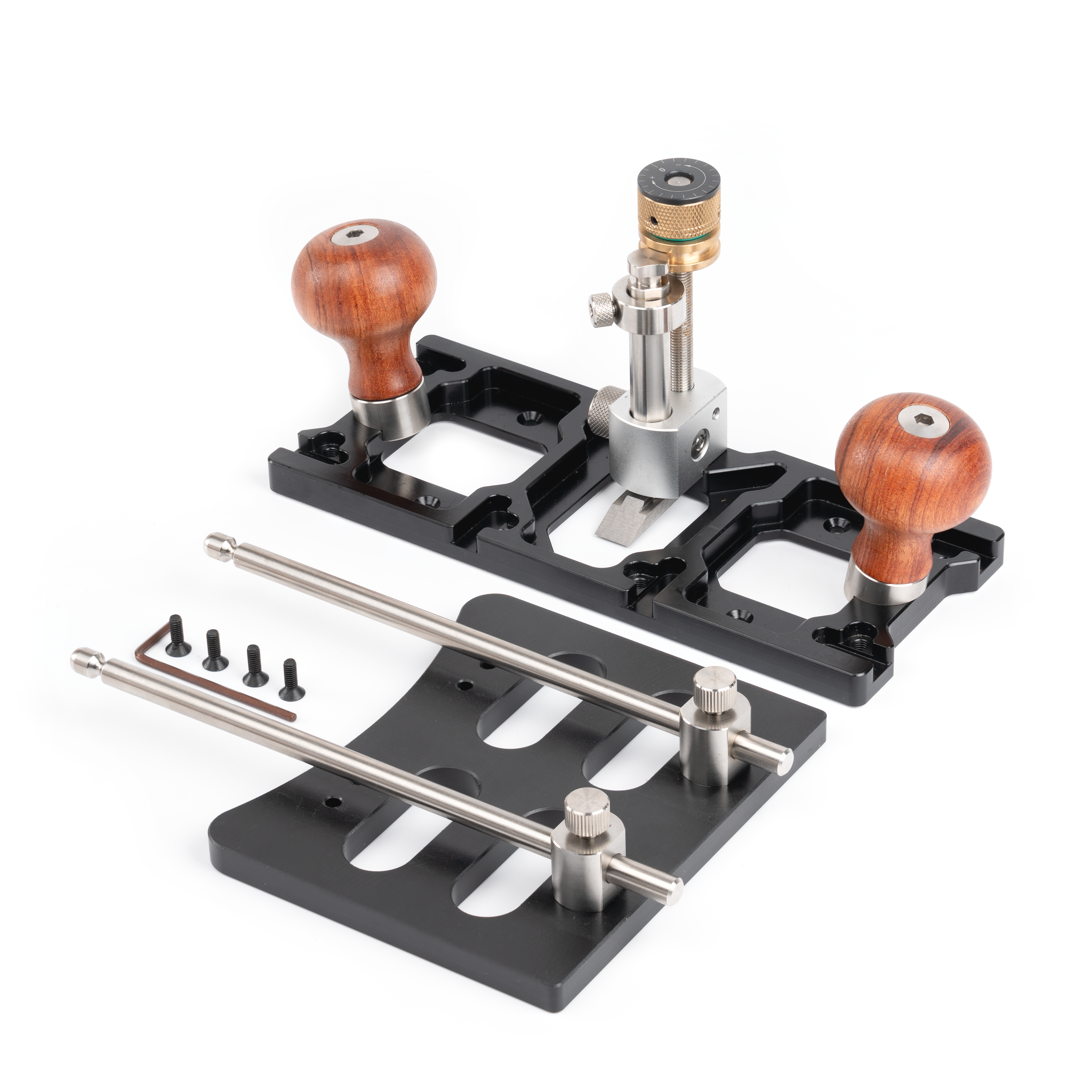

Detachable Multi-Directional Fence: Supported by a dedicated four-direction optional guide fence. When installed, it allows you to reference straight or curved workpiece edges perfectly, keeping your groove cuts parallel to the board edge without needing a separate straightedge jig.

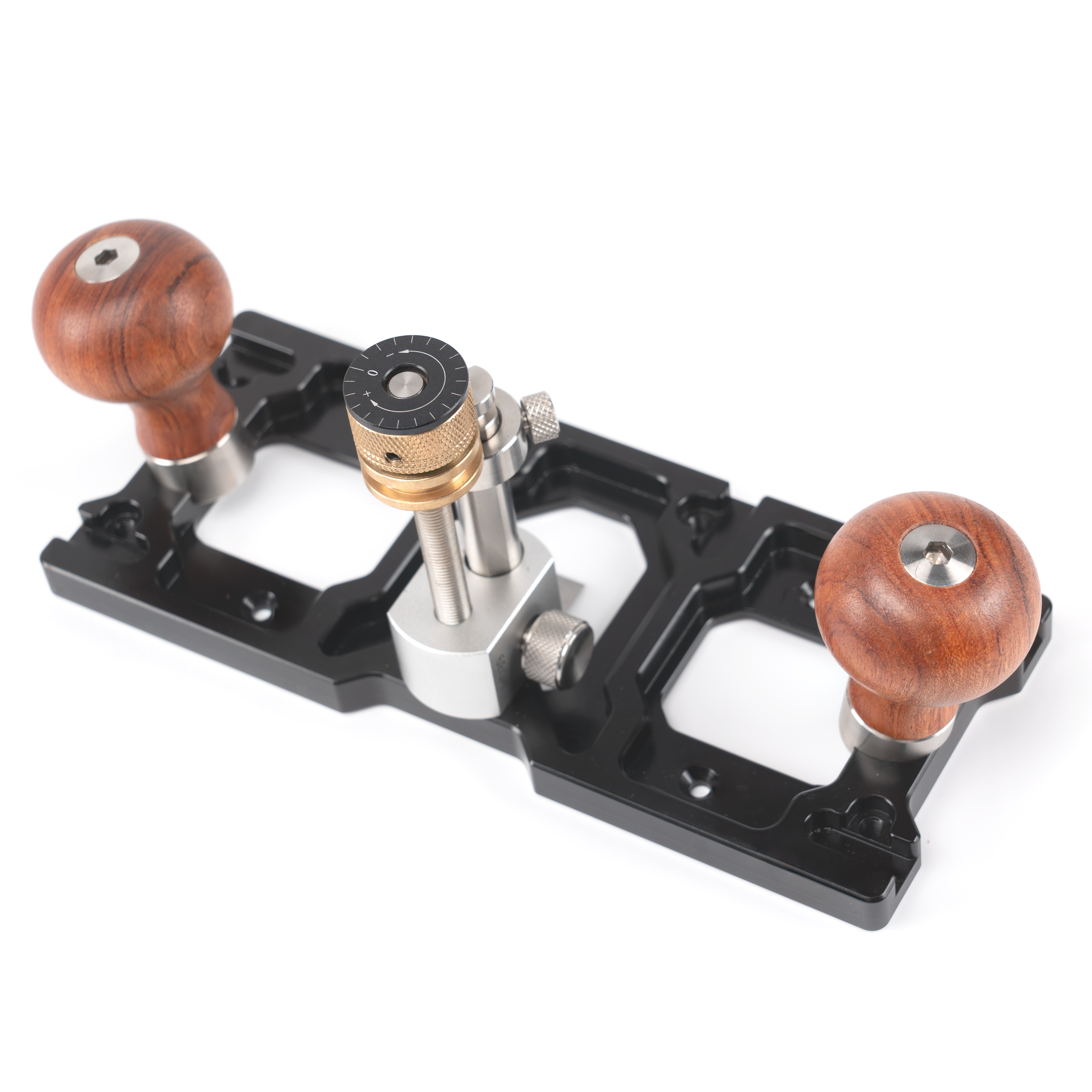

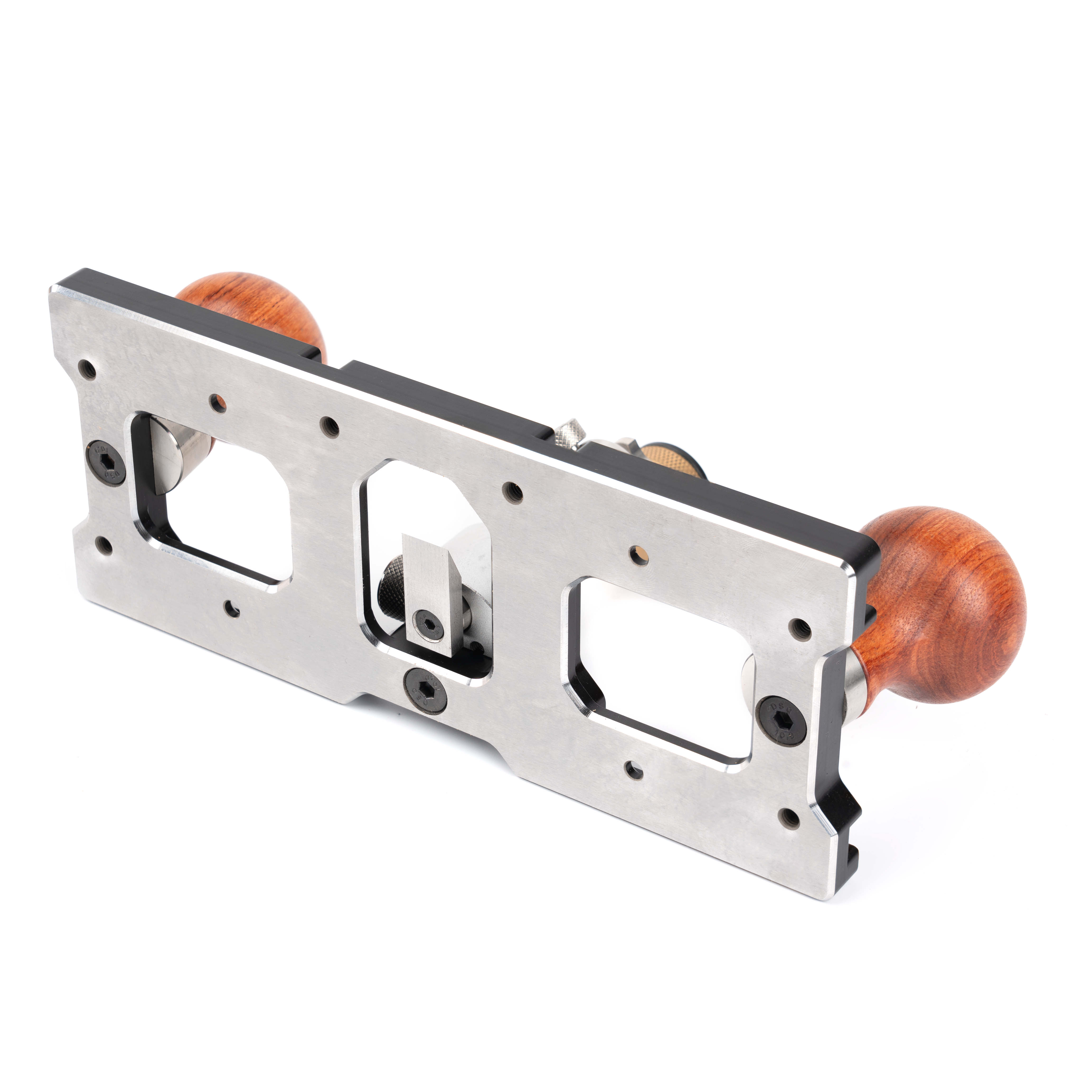

Ergonomic Low-Center-of-Gravity Handling: The heavily weighted S136H steel base lowers the overall center of gravity, resulting in superb physical balance. Paired with ergonomic handles, it minimizes hand fatigue and stops the plane from rocking or tipping during deep, heavy passes.
- Model: HD39
- Dimension: Approximately 170mm x 90mm x 115mm
- Material: Aluminum Alloy & Stainless Steel
- Weight: Roughly 0.85kg
We provide clear and easy-to-follow user manuals to help you get started effortlessly.
Click here to explore tutorials for our product.
WARNING! This product can expose you to chemicals, including chromium, which is known to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
FAQ
Check out the most common questions our customers asked.
What makes the HD39 different from traditional router planes?
Traditional router planes usually have a fixed blade orientation pointing directly forward or backward. The HD39 features three distinct mounting locations on the base and allows the blade mechanism to rotate 360° across four rotational directions. This modular design gives you total flexibility to navigate awkward corners, tight dadoes, and irregular grain patterns while keeping the wide sole flat on the workpiece.
Does it have an adjustable handle layout?
Yes. To accommodate different grip preferences and various mounting orientations of the blade, the handle positions on the HD39 are fully adjustable. This allows you to maintain optimal balance, downward pressure, and mechanical leverage regardless of how the plane is configured.
What is "Grain-Adaptive Cutting" and how do I use it?
When cleaning the bottom of a groove, changing grain directions can cause wood to tear out. Because the entire blade housing on the HD39 rotates 360°, you can change the angle of your approach on the fly. This lets you always cut with the grain rather than forcing the tool against it, resulting in a significantly cleaner surface finish.

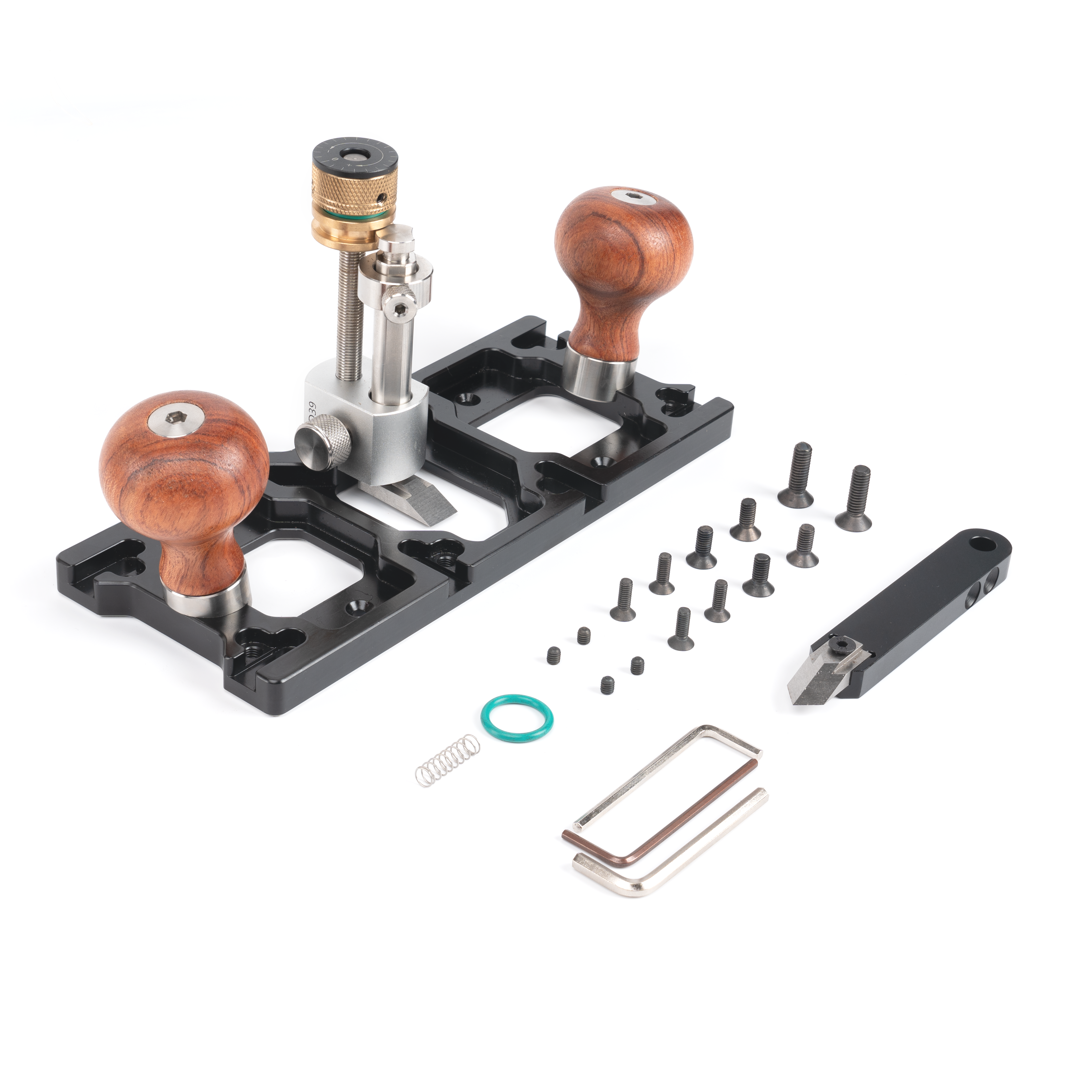

What types of blades are included in the package?
The HD39 typically ships with two premium cutters:
- A 12mm Square Blade for flattening standard dadoes, grooves, and rabbets.
- A Spearpoint Blade designed specifically for reaching tight, hard-to-access corners and intricate inlay work.
Can I use blades from other brands (like Veritas or Lie-Nielsen) in the HD39?
No. Due to the unique 360° rotating modular mounting assembly, the HD39 uses a proprietary shaft geometry. Third-party replacement blades will not fit the mounting configuration.
How easy is it to remove the blade for sharpening?
Very straightforward. Unlike vintage tools where you must fiddle with the entire height-adjustment post, the cutters on modern HONGDUI planes separate efficiently. You can easily detach the cutting head from the shaft assembly, making it far simpler to lock into a honing guide (like the HONGDUI HD29) to achieve a razor-sharp edge.
How precise is the depth adjustment mechanism?
The HD39 utilizes a machined stainless steel lead screw paired with a knurled thumbwheel precision adjustment mechanism. It operates smoothly, allowing you to easily dial in micro-shavings measured in fractions of a millimeter for absolute depth control.
Does the height adjustment suffer from backlash or "slop"?
HONGDUI prioritizes low-backlash engineering across their entire joinery line. The thumbwheel and guide-post tolerances are machined tightly to virtually eliminate the annoying "dead zones" common in older threaded-post designs, meaning the blade responds almost instantly when you reverse direction.

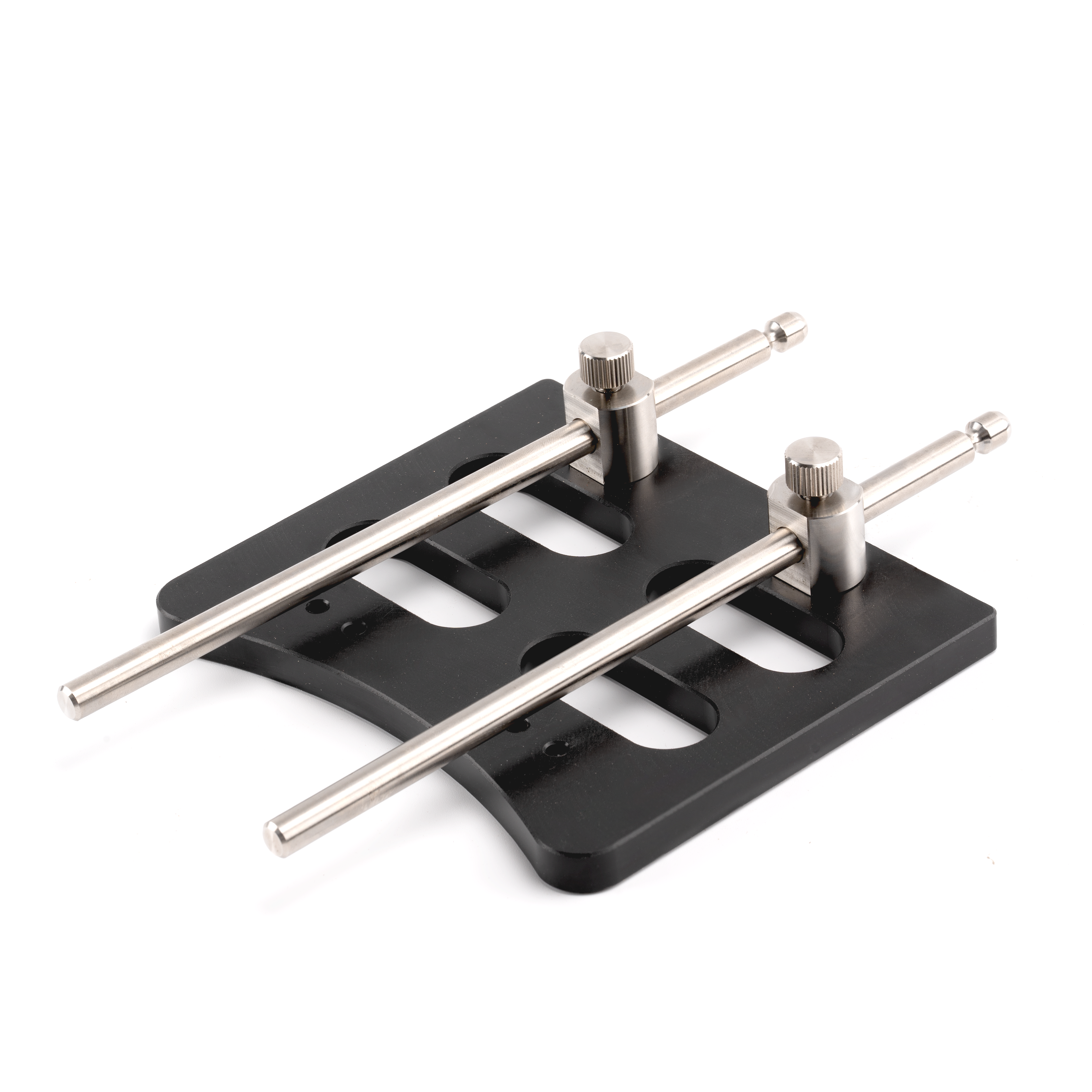

Is the edge-guiding fence included with the base tool?
Please check the specific listing when purchasing. In many global e-commerce listings, the adjustable edge fence is sold as a standalone module or bundled as an upgraded kit variant. If you frequently route grooves parallel to a straight or curved edge, it is highly recommended to select the option that explicitly includes the fence assembly.
